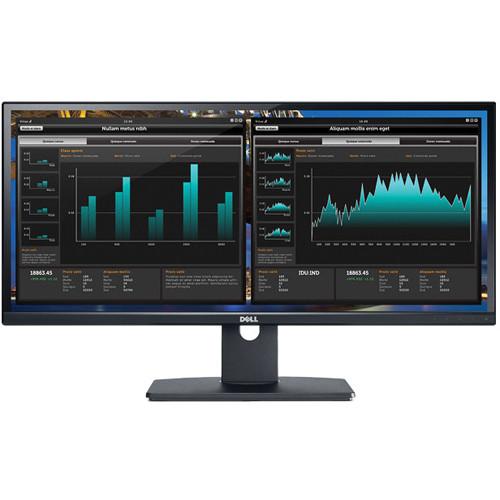

User manual Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM

Operating instructions and pdf manual for use - Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM User manual, User manual Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM, Dell, U2913WM, 29, Widescreen, LED, Backlit, LCD, Moni

User manual for Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Dell U2913WM 29
  • Manufacturer: Dell
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your Dell
  • Settings and expert assistance
  • Contact Dell service
  • Troubleshooting
  • Warranty information
  • Price: 470 USD
We recommend checking out our discussion threads on the Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM, which address similar problems with connecting and setting up Computer Monitors Dell.


User manual for the Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM

The user manual for the Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

The U2913WM 29" Widescreen LED Backlit LCD Monitor from Dell comes with the screen space to multitask with ease. The enhanced 21:9 aspect ratio provides a panoramic viewing experience along with a 2560 x 1080 full HD resolution. This monitor comes equipped with four downstream USB ports and one upstream USB port making it possible to connect peripheral devices such as USB hard drives and thumb drives directly to your monitor.

The extended screen capacity enables you to split the monitor in half making it possible to carry separate tasks on each side. You benefit from enhanced color accuracy as this monitor supports more than 99% sRGB color space at a delta-E of less than 5. You also can take advantage of display functions such as Smart Video Enhance and Easy Arrange with Dell Display Manager.
If you own a Dell computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Dell U2913WM 29Download user manual for Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM
(PDF file, 0.21 MB)
Additional parameters of the Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM:
Specifications
    Diagonal Viewing Size 29" (73.02 cm)
    Input Panel Type AH In-plane switching, anti glare with hard coat 3H
    Aspect Ratio Ultra widescreen (21:9)
    Optimal Resolution 2560 x 1080 at 60 Hz
    Preset Display Area (H x W) 27.30 x 12.16" (694.6 x 308.9 mm)
    Contrast Ratio Typical: 1,000:1
    Dynamic: 2,000,000:1
    Backlight Technology LED
    Brightness Typical: 300cd/m²
    Minimum: 50cd/m²
    Response Time 8ms
    Viewing Angle Horizontal: 178°
    Vertical: 178°
    Adjustability Height-Adjustable stand, tilt , swivel and built in cable-management, capacitive touch OSD controls
    Color Support Color Gamut (typical): sRGB >99%, 82% (CIE 1976)
    Color Depth: 16.7 million colors
    Pixel Pitch Horizontal: 0.09 mm
    Vertical: 0.26 mm
    Display Type Widescreen Flat Panel Display
    Flat Panel Mount Interface VESA
    Display Screen Coating Antiglare with hard-coating 3H
    Audio Output DC power connector for optional Dell Soundbar
    Connectivity 1 x Dual Link Digital Visual Interface connectors (DVI-D) with HDCP
    1 x DisplayPort 1.2 (DP)
    1 x Mini DisplayPort 1.2 (mDP)
    1 x High Definition Multimedia Interface (HDMI)
    1 x Video Graphics Array (VGA)
    1 x USB 3.0 upstream port
    4 x USB 3.0 downstream ports
    1 x DisplayPort out
    1 x Audio out
    DC power connector for Dell Soundbar (AX510)
    Stand Height-Adjustable stand, tilt , swivel and built in cable-management
    Security Security lock slot (cable lock sold separately)
    Anti-theft stand lock slot (to panel)
    Ports USB 3.0 Hi-Speed Hub (with 1 USB upstream port and 4 USB downstream ports)
    DC-out
    Power Requirements Voltage Required: 100 to 240 VAC / 50 or 60 Hz + 3Hz / 1.5A (Max)
    Power Consumption (Operational): 32W (typical) / 90W (maximum)
    Power Consumption (Standby / Sleep): Less than 0.5W
    Environmental Requirements Operating Temperature: 32 to 104°F (0 to 40°C)
    Non-Operating Temperature: -4 to 140°F (-20 to 60°C)
    Operating Humidity: 10 to 80% (non-condensing)
    Non-Operating Humidity: 5 to 90% (non-condensing)
    Operating Altitude: 16,400 ft (5,000 m)
    Non-Operating Altitude: 35,000 ft (10,668 m)
    Dimensions (H x W x D) With Stand: 27.55 x 7.65 x 14.12~19.17" (699.8 x 194.2 x 358.7~487.0 mm)
    Without Stand: 12.48 x 27.55 x 2.41" (317.0 x 699.8 x 61.2 mm)
    Weight 12.08 lb (5.76 kg)
    Packaging Info
    Package Weight 24.0 lb
    Box Dimensions (LxWxH) 33.0 x 17.0 x 9.0"
    The user manual for the Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Dell users keep a unique electronic library for Dell computer monitorss, where you can use our link to download the user manual for the Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM.

    The user manual lists all of the functions of the Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Dell service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Dell U2913WM 29" Widescreen LED Backlit LCD Monitor U2913WM. User manuals are also available on the Dell website under Computers & Solutions - Monitors & Displays - Computer Monitors.
