User manual Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT

Operating instructions and pdf manual for use - Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT User manual, User manual Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT, Denon, AVR-S510BT, 5.2, Channel, Full, 4K, Ultra, HD


User manual for Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT
  • Manufacturer: Denon
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Receivers & Amplifiers - Receivers
  • Safety instructions
  • Startup and operation of the receivers
  • Tips for setting up your Denon
  • Settings and expert assistance
  • Contact Denon service
  • Troubleshooting
  • Warranty information
  • Price: 279 USD
We recommend checking out our discussion threads on the Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT, which address similar problems with connecting and setting up Receivers Denon.



User manual for the Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT

The user manual for the Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT provides necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

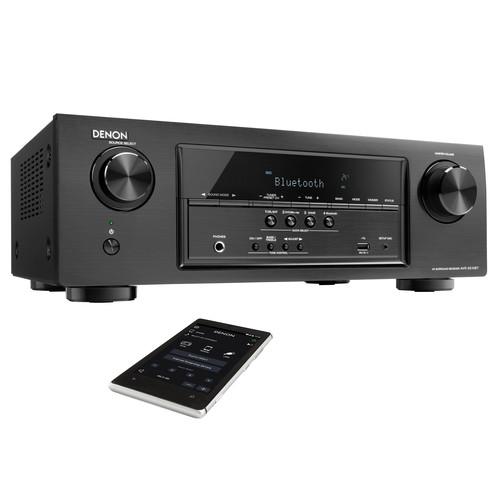

Power your party with the Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V Receiver. It outputs 70W per channel at 8 ohms, or 90W per channel at 6 ohms. With 4K Ultra HD and 3D pass-through via HDMI, and a total of five HDMI inputs with one HDMI output, you can connect many sources to your display and speakers. For additional connectivity, the AVR-S510BT has Bluetooth and a front-panel USB input, which will accept portable USB devices and is compatible with MP3, WMA, and MPEG-4/AAC tracks.

Calibration of the receiver is simplified with Denon's Setup Assistant Sound Optimization program. The AVR-S510BT also features compatibility with Denon's HEOS Link for control via the HEOS app. For more traditional users, a remote control is included.
If you own a Denon receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BTDownload user manual for Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT
(PDF file, 3.01 MB)
Additional parameters of the Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT:
Specifications
    Main Unit
    Channels 5.2
    RMS Power Output per Channel 70 W @ 8 ohm, 20 Hz - 20 kHz, 0.08% THD
    90 @ 6 ohm, 1 kHz, 0.7% THD
    Sound Modes DTS HD Master
    Dolby TrueHD
    Multi-channel Stereo
    Sound Enhancement Discrete power amplifier
    Compressed Audio Restorer
    Bluetooth Specification Version: 2.1 + EDR (Enhanced Data Rate), 2.4 GHz band
    Codecs Supported: SBC, AAC
    Bluetooth Range 32.8' (10.0 m) with line of sight
    Bluetooth Profile Support A2DP (Advanced Audio Distribution Profile) 1.2
    AVRCP (Audio Video Remote Control Profile) 1.5
    FM/AM Tuner Yes
    Video
    HDMI HDMI pass-through in standby mode
    GUI overlay on HDMI
    HDCP Support HDCP 2.2
    Pass-Through 3D, 4K
    Input Sensitivity and Impedance 200 mV, 47 kOhms
    Frequency Response ± 3dB 10 Hz to 100 kHz (Direct mode)
    Signal / Noise 98 dB (IHF-A weighted, Direct mode)
    Connectivity
    Inputs 5 x HDMI
    2 x Composite Video (1 front)
    2 x Stereo RCA
    2 x Digital Optical
    Outputs 1 x HDMI
    1 x Composite video
    2 x Subwoofer preout
    5 x Speaker preout
    2 x Subwooofer preout
    Other Ports 1 x USB (front)
    1 x AM antenna
    1 x FM antenna
    1 x Sound calibration microphone
    1 x AC power
    Speaker Connectors Front Left and Right
    Center
    Surround Left and Right
    General
    Remote Control Preprogrammed
    Power Requirements 120 VAC, 60 Hz
    Power Consumption (Active) 310 W
    Power Consumption (Standby) Typical: 0.1 W
    Bluetooth Standby: 1 W
    Dimensions (W x D x H) 17.0 x 12.6 x 5.9" (43.4 x 31.9 x 15.1 cm)
    Weight (Approx.) 16.6 lb (7.5 kg)
    Packaging Info
    Package Weight 20.75 lb
    Box Dimensions (LxWxH) 20.5 x 17.0 x 8.5"
    The user manual for the Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT can be downloaded in .pdf format if it did not come with your new receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Denon users keep a unique electronic library for Denon receiverss, where you can use our link to download the user manual for the Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT.

    The user manual lists all of the functions of the Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT, all the basic and advanced features and tells you how to use the receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Denon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Denon AVR-S510BT 5.2 Channel Full 4K Ultra HD A/V AVR-S510BT. User manuals are also available on the Denon website under TVs & Entertainment - Receivers & Amplifiers - Receivers.
