User manual Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201

Operating instructions and pdf manual for use - Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201 User manual, User manual Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201, Digigram, LoLa16161, PCIe, Multi-Channel, Digital, VB2


User manual for Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201

Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201
  • Manufacturer: Digigram
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your Digigram
  • Settings and expert assistance
  • Contact Digigram service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201, which address similar problems with connecting and setting up Audio Interfaces & Systems Digigram.



User manual for the Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201

The user manual for the Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

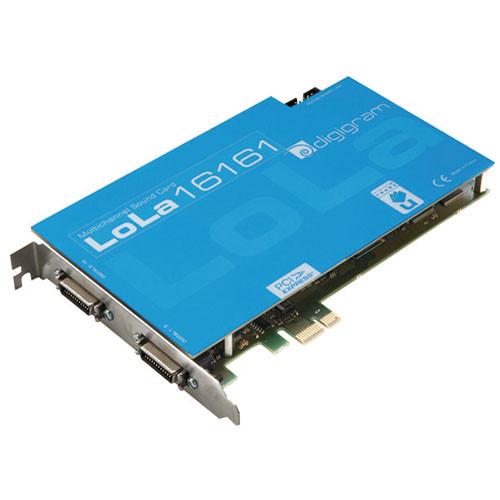

The LoLa16161 from Digigram is a low-profile, PCIe (Express) card that provides 16 channels of digital input and output. The card is especially suitable for professional applications in broadcast (such as live-assist, multichannel playback, ingest), TV, studios and in any application where absolute quality and reliability are required.
If you own a Digigram audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201Download user manual for Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201
(PDF file, 0.8 MB)
Additional parameters of the Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201:
Specifications
    Format Universal PCIe
    Supported audio formats: PCM 16-, 24-, 32-bits, Float IEEE754
    Hardware Mixer: 32-bit Float
    Converters 24-bit
    Sample Rates Programmable from 32kHz to 192kHz
    Sample Rate Conversion On every input - ratio 1:16 to 16:1, from 20kHz to 216kHz
    Analog Inputs No
    Analog Outputs No
    Digital Inputs 1 x 8 XLR AES/EBU (on 2 breakout cables)
    Digital Outputs 1 x 8 XLR AES/EBU (on 2 breakout cables)
    Other Connectors 2 x 26-pin SCSI MDR
    2 x BNC Wordclock I/O
    1 x XLR AES11 Synchronization
    1 x BNC Video Sync Input
    MIDI In/Out No
    Sync In/Out AES/EBU inputs
    Wordclock I/O
    AES Clock Input
    1 x BNC Video Sync Input
    Headphone Output No
    Operating Temperature 0°C/+50°C
    5%/90% humidity
    Power Requirements +3.3V/+12V, 0.8A/0.5A
    Minimum System Requirements CPU power and memory required depend on the operating system and the audio application used
    One free PCIe slot
    Windows XP/Server 2003, 2008, Vista, or Windows 7
    ASIO and DirectSound supported
    Specialties PCI Express (PCIe) x1 and x2, x4, x8, x16, x32 compatible
    Packaging Info
    Package Weight 3.25 lb
    Box Dimensions (LxWxH) 12.756 x 5.748 x 4.016"
    The user manual for the Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201 can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Digigram users keep a unique electronic library for Digigram audio interfaces & systemss, where you can use our link to download the user manual for the Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201.

    The user manual lists all of the functions of the Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Digigram service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Digigram LoLa16161 - PCIe Multi-Channel Digital VB2086A0201. User manuals are also available on the Digigram website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
