User manual Digigram VX1221e - PCIe Digital Audio Card VB1875A0301

Operating instructions and pdf manual for use - Digigram VX1221e - PCIe Digital Audio Card VB1875A0301 User manual, User manual Digigram VX1221e - PCIe Digital Audio Card VB1875A0301, Digigram, VX1221e, PCIe, Digital, Audio, Card, VB1875A0301,


User manual for Digigram VX1221e - PCIe Digital Audio Card VB1875A0301

Digigram VX1221e - PCIe Digital Audio Card VB1875A0301
  • Manufacturer: Digigram
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your Digigram
  • Settings and expert assistance
  • Contact Digigram service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Digigram VX1221e - PCIe Digital Audio Card VB1875A0301, which address similar problems with connecting and setting up Audio Interfaces & Systems Digigram.



User manual for the Digigram VX1221e - PCIe Digital Audio Card VB1875A0301

The user manual for the Digigram VX1221e - PCIe Digital Audio Card VB1875A0301 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

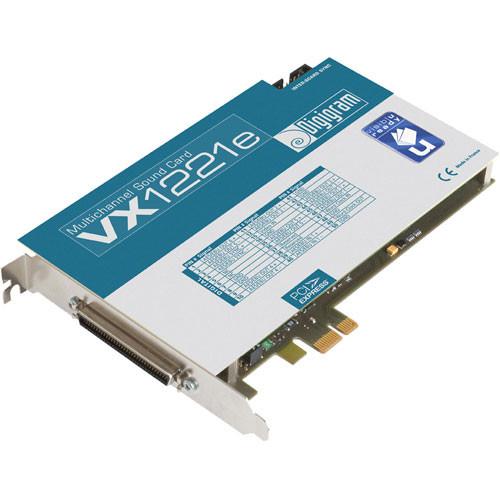

The VX1221e from Digigram is a PCIe (Express) card that provides 2 channels of digital audio input, while simultaneously outputting 6 stereo pairs of digital output. The card is especially useful for broadcast (linear-audio) live-assist systems, providing excellent audio performance with pristine sound quality, and the ability to perform 24/7 in the demanding broadcast environment.
If you own a Digigram audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Digigram VX1221e - PCIe Digital Audio Card VB1875A0301 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Digigram VX1221e - PCIe Digital Audio Card VB1875A0301Download user manual for Digigram VX1221e - PCIe Digital Audio Card VB1875A0301
(PDF file, 1.14 MB)
Additional parameters of the Digigram VX1221e - PCIe Digital Audio Card VB1875A0301:
Format Universal PCIe
Converters Not applicable
Sample Rates Programmable from 22.05kHz to 192kHz
Analog In No
Analog Outputs No
Digital Input Connectors 1 x XLR AES/EBU (on included breakout cable)

Can function as S/PDIF

Digital Output Connectors 6 x XLR AES/EBU (on included breakout cable)

Can function as S/PDIF

Other Connectors On card:
68-pin SCSI MDR

On included breakout cable:
1 x XLR/F AES Sync In
2 x BNC Wordclock I/O
1 x BNC Video In
1 x RCA coaxial LTC In

MIDI In/Out No
Sync In/Out AES/EBU In
Wordclock I/O
Video Sync In
LTC In
Headphone Output No
THD + N Not applicable
Dynamic Range Not applicable
Frequency Response Not applicable
Minimum System Requirements CPU power and memory required depend on the operating system and the audio application used
One free PCIe slot
Windows XP/Server 2003 and Vista
Specialties PCI Express (PCIe) x1 and x2, x4, x8, x16, x32 compatible
Packaging Info
Package Weight 4.0 lb
Box Dimensions (LxWxH) 14.0 x 6.0 x 4.0"
The user manual for the Digigram VX1221e - PCIe Digital Audio Card VB1875A0301 can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Digigram users keep a unique electronic library for Digigram audio interfaces & systemss, where you can use our link to download the user manual for the Digigram VX1221e - PCIe Digital Audio Card VB1875A0301.

The user manual lists all of the functions of the Digigram VX1221e - PCIe Digital Audio Card VB1875A0301, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Digigram service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Digigram VX1221e - PCIe Digital Audio Card VB1875A0301. User manuals are also available on the Digigram website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
