User manual for the Digigram VX1222HR - PCI Universal Digital Audio Card VB1746A0201

The user manual for the Digigram VX1222HR - PCI Universal Digital Audio Card VB1746A0201 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

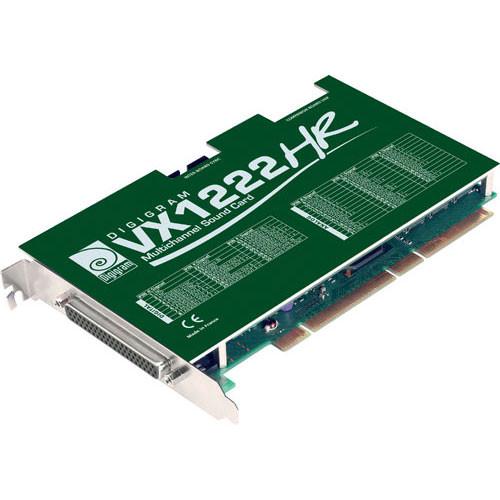

The VX1222HR from Digigram is a 64-bit/66Mhz Universal PCI card that provides 2 channels of analog or digital audio input while simultaneously outputting 6 stereo pairs of digital output or 12 mono channels of analog audio. Especially useful for broadcast linear-audio-based live-assist systems, the card provides excellent audio performance with pristine sound quality and the ability to perform 24/7 in the demanding broadcast environment.
If you own a Digigram audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Digigram VX1222HR - PCI Universal Digital Audio Card VB1746A0201 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Digigram VX1222HR - PCI Universal Digital Audio Card VB1746A0201Download user manual for Digigram VX1222HR - PCI Universal Digital Audio Card VB1746A0201
(PDF file, 1.1 MB)
Additional parameters of the Digigram VX1222HR - PCI Universal Digital Audio Card VB1746A0201:
Format Universal PCIe
Converters 24-bit
Sample Rates Programmable from 8kHz to 192kHz
Analog In 2 x XLR (on included breakout cable)
Analog Outputs 12 x XLR (on included breakout cable)
Digital Input Connectors 1 x XLR AES/EBU (on included breakout cable)

Can function as S/PDIF

Digital Output Connectors 6 x XLR AES/EBU (on included breakout cable)

Can function as S/PDIF

Other Connectors On card:
68-pin SCSI MDR

On included breakout cable:
1 x XLR/F AES Sync In
2 x BNC Wordclock I/O
1 x BNC Video In
1 x RCA coaxial LTC In

MIDI In/Out No
Sync In/Out AES/EBU In
Wordclock I/O
Video Sync In
LTC In
Headphone Output No
THD + N Input: <-96dB, 1kHz @ -1.0dBfs
Output: <-98dB, 1kHz @ -1.0dBfs
Dynamic Range Input: >104dB, A-weighted
Output: >110dB
Frequency Response 20Hz to 20kHz, +/-0.3dB
Minimum System Requirements CPU power and memory required depend on the operating system and the audio application used
One free PCIe slot
Windows XP/Server 2003 and Vista
Specialties 66MHz/64-bit PCI interface
Packaging Info
Package Weight 6.0 lb
Box Dimensions (LxWxH) 14.0 x 6.0 x 4.0"
The user manual for the Digigram VX1222HR - PCI Universal Digital Audio Card VB1746A0201 can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Digigram users keep a unique electronic library for Digigram audio interfaces & systemss, where you can use our link to download the user manual for the Digigram VX1222HR - PCI Universal Digital Audio Card VB1746A0201.

The user manual lists all of the functions of the Digigram VX1222HR - PCI Universal Digital Audio Card VB1746A0201, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Digigram service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Digigram VX1222HR - PCI Universal Digital Audio Card VB1746A0201. User manuals are also available on the Digigram website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
