User manual Digigram VX442e - PCIe Digital Audio Card VB1966A0201

Operating instructions and pdf manual for use - Digigram VX442e - PCIe Digital Audio Card VB1966A0201 User manual, User manual Digigram VX442e - PCIe Digital Audio Card VB1966A0201, Digigram, VX442e, PCIe, Digital, Audio, Card, VB1966A0201,


User manual for Digigram VX442e - PCIe Digital Audio Card VB1966A0201

Digigram VX442e - PCIe Digital Audio Card VB1966A0201
  • Manufacturer: Digigram
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your Digigram
  • Settings and expert assistance
  • Contact Digigram service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Digigram VX442e - PCIe Digital Audio Card VB1966A0201, which address similar problems with connecting and setting up Audio Interfaces & Systems Digigram.



User manual for the Digigram VX442e - PCIe Digital Audio Card VB1966A0201

The user manual for the Digigram VX442e - PCIe Digital Audio Card VB1966A0201 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

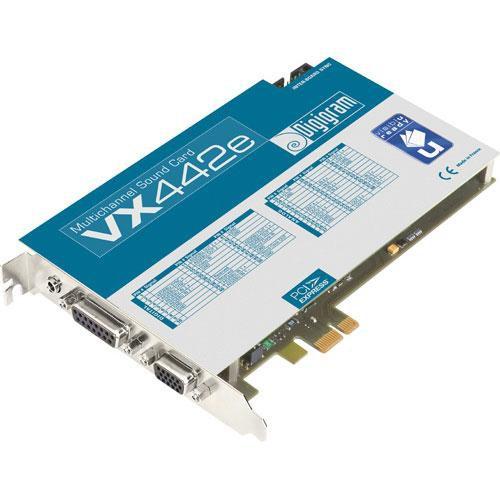

The VX442e from Digigram is a PCIe (Express) card that provides 4 channels of analog or digital audio input while simultaneously outputting 2 stereo pairs of digital output or 4 mono channels of analog audio. Especially useful for broadcast live-assist systems, permanent playback and multi-channel playback, the card provides excellent audio performance with pristine sound quality and the ability to perform 24/7 in the demanding broadcast environment.
If you own a Digigram audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Digigram VX442e - PCIe Digital Audio Card VB1966A0201 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Digigram VX442e - PCIe Digital Audio Card VB1966A0201Download user manual for Digigram VX442e - PCIe Digital Audio Card VB1966A0201
(PDF file, 1.04 MB)
Additional parameters of the Digigram VX442e - PCIe Digital Audio Card VB1966A0201:
Specifications
    Format PCIe (PCI Express)
    Converters 24-bit
    Sample Rates Programmable from 32kHz to 192kHz
    Analog Input 4 x XLR (on included breakout cable)
    Analog Output 4 x XLR (on included breakout cable)
    Digital Input 2 x XLR AES/EBU (on included breakout cable)

    Can function as S/PDIF

    Digital Output 2 x XLR AES/EBU (on included breakout cable)

    Can function as S/PDIF

    Other Connectors On card:
    68-pin SCSI MDR

    On included breakout cable:
    1 x XLR/F AES Sync In
    2 x BNC Wordclock I/O
    1 x BNC Video In
    1 x RCA coaxial LTC In

    MIDI In/Out No
    Sync In/Out AES/EBU In
    Wordclock I/O
    Video Sync In
    LTC In
    Headphone Output No
    THD + N Input: <-97dB, 1kHz @ -1.0dBfs
    Output: <-94dB, 1kHz @ -1.0dBfs
    Dynamic Range >104dB, A-weighted
    Frequency Response 20Hz to 20kHz, +/-0.2dB
    Minimum System Requirements CPU power and memory required depend on the operating system and the audio application used
    One free PCIe slot
    Windows XP/Server 2003 and Vista
    Specialties PCI Express (PCIe) x1 and x2, x4, x8, x16, x32 compatible
    Packaging Info
    Package Weight 3.5 lb
    Box Dimensions (LxWxH) 12.677 x 5.748 x 3.937"
    The user manual for the Digigram VX442e - PCIe Digital Audio Card VB1966A0201 can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Digigram users keep a unique electronic library for Digigram audio interfaces & systemss, where you can use our link to download the user manual for the Digigram VX442e - PCIe Digital Audio Card VB1966A0201.

    The user manual lists all of the functions of the Digigram VX442e - PCIe Digital Audio Card VB1966A0201, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Digigram service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Digigram VX442e - PCIe Digital Audio Card VB1966A0201. User manuals are also available on the Digigram website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
