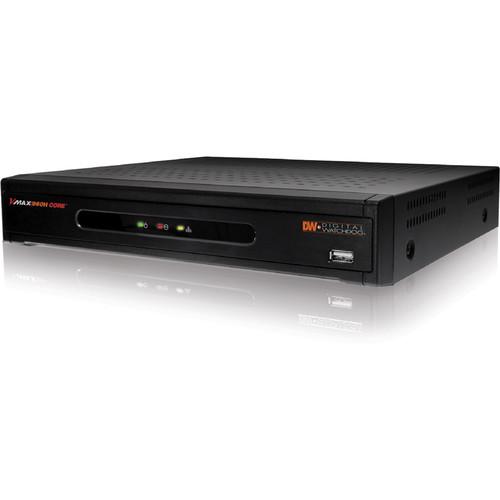

Click to enlarge image

We recommend checking out our discussion threads on the Digital Watchdog VMAX 960H CORE 8-Channel DVR with 3TB DW-VC83T, which address similar problems with connecting and setting up Digital Video Recorders (DVRs) Digital Watchdog.



User manual for the Digital Watchdog VMAX 960H CORE 8-Channel DVR with 3TB DW-VC83T

The user manual for the Digital Watchdog VMAX 960H CORE 8-Channel DVR with 3TB DW-VC83T provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).

Full pentaplex operation, multiple alarm inputs, 960H real-time recording resolution, and expandable storage capacity up to 4TB, make the VMAX 960H CORE 8-Channel DVR with 3TB HDD from Digital Watchdog a powerful recording and storage solution for a one to four camera surveillance system.

The VMAX 960H has eight BNC video inputs to accommodate up to 8 960H resolution cameras, but is also backwards compatible with lower resolution analog cameras. The DVR can record at a rate of up to 30 fps per channel in 960H resolution and features space-saving H.264 video compression to maximize the DVR's preinstalled 3TB hard disk drive storage space. Furthermore, the DVR offers a wide range of configurable recording modes to help you capture what matters.

Additionally, the DVR has four alarm inputs and one alarm output that are used to connect to external devices. The DVR's inputs can support a device that can toggle between an open/closed circuit, such as a PIR motion detector and door/window glass break detectors, which can alert surveillance staff to movement, break-ins, and more. The alarm output also connects to an external device, such as a relay, microphone, or PA system. The DVR also has an audio input and an audio output that allow you to easily integrate a high-quality microphone and a speaker.

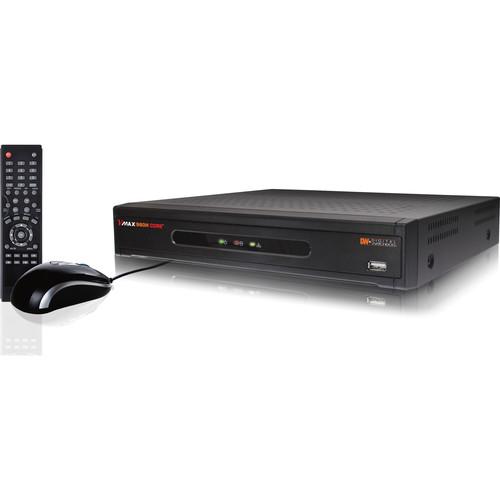

For further convenience, the DVR has many features designed to alert you to movement and other forms of activity. You can receive alarm notifications on your Android and iOS smart devices as well as your Kindle Fire in the event that you are not sitting in front of a monitor. Along with the VMAX 960H DVR, an IR remote control, USB mouse, power adapter, and mounting hardware are also included to facilitate installation and operation.
If you own a Digital Watchdog digital video recorders (dvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Digital Watchdog VMAX 960H CORE 8-Channel DVR with 3TB DW-VC83T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Digital Watchdog VMAX 960H CORE 8-Channel DVR with 3TB DW-VC83T:
Specifications
Number of Channels 8
Display Resolution 960H / D1 / 2CIF / CIF
Display Modes 1, 4, sequence
Display Frame Rate 30 fps
Video Resolution 960 x 480, 960 x2 40, 480 x 240
Video Frame Rate 1 to 30 fps
Video Output 1 x HD output
1 x BNC (composite)
1 x SPOT
Video Compression H.264
Audio Compression PCM
Pre-alarm Record 1 to 5 sec
Digital Zoom In Live and Playback modes
Audio Input 1 x RCA input (via phone jack)
Audio Output 1 x output (via phone jack)
Export Formats Supported USB flash drive / USB HDD
Alarm Input 4 x inputs
Alarm Output 1 x output
Transmission Speed 120 / 100 fps at 960H and CIF (NTSC / PAL)
Logging and Reporting Optional (VLOOP Accessory not included)
Client Monitoring Software: ACS (Client S/W), MAC (Apple S/W),
Pivot (CMS S/W), DW Spectrum (Synergy S/W)
Network Protocols Static, DDNS, DHCP, uPnP, RTSP
Supported Mobile Devices iPhone / Android Phones / Blackberry (up to Version 8)
iPad / Android tablets / Kindle Fire
Web Viewer Supported operations: Live, Playback, Remote Configuration, up to 10 Simultaneous Connections (in Live)
Supported Web Browsers Internet Explorer
Playback Functions x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32
First/Last Data, Date/Time, Record Table, Calendar, Bookmark, System Log
Playback Rate/Resolution 120 fps at all resolutions in NTSC/PAL
Full real-time 960H playback at 30 fps at all resolutions
Recording Resolution 960H
Search Modes Date & Time, Record Table, Calendar, Event Preview, Bookmark, Play from Search, System & Event Logs
Special Features True DVR Health Check, digital zoom during Live and Playback
System Upgrade USB Flash Drive, Network Upgrade, FTP Remote Upgrade
HDD Interface 1 HDD
Internal Storage Maximum: 4 TB
Power Requirements 12 VDC, 3.33 A
Power Consumption (Active) 30.96 W
Operating Temperature 41 to 104°F (5 to 40°C)
Operating Humidity < 80%
Dimensions (WxHxD) 14.2 x 14.3 x 2.6" (360.7 x 363.2 x 66.0 mm)
Weight 8.4 lb (3.8 kg)
