User manual DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299

Operating instructions and pdf manual for use - DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299 User manual, User manual DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299, DJI, Phantom, 3, Quadcopter, with, 4K, Camera,


User manual for DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299

DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299
  • Manufacturer: DJI
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones
  • Safety instructions
  • Startup and operation of the aerial imaging platforms & drones
  • Tips for setting up your DJI
  • Settings and expert assistance
  • Contact DJI service
  • Troubleshooting
  • Warranty information
  • Price: 999 USD
DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299 DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299 DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299 DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299 DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299 DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299
Click to enlarge image

We recommend checking out our discussion threads on the DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299, which address similar problems with connecting and setting up Aerial Imaging Platforms & Drones DJI.



User manual for the DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299

The user manual for the DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.

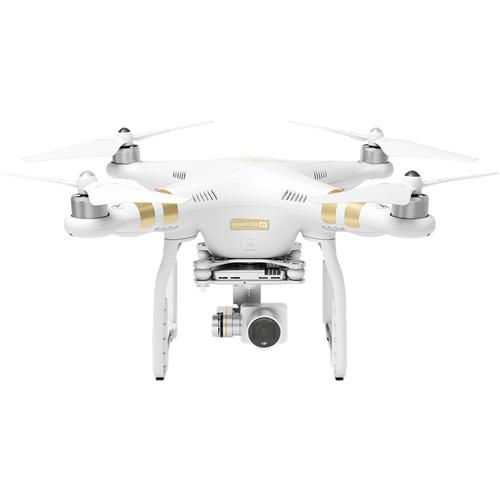

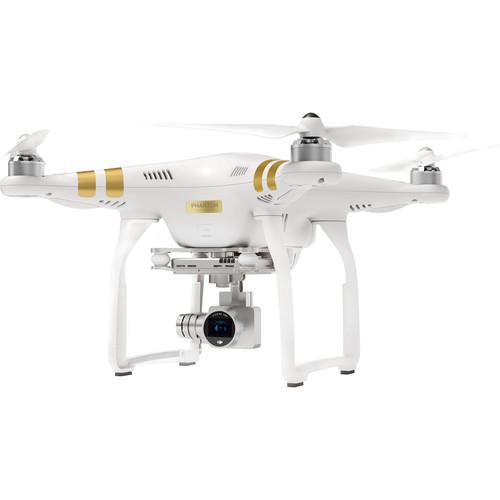

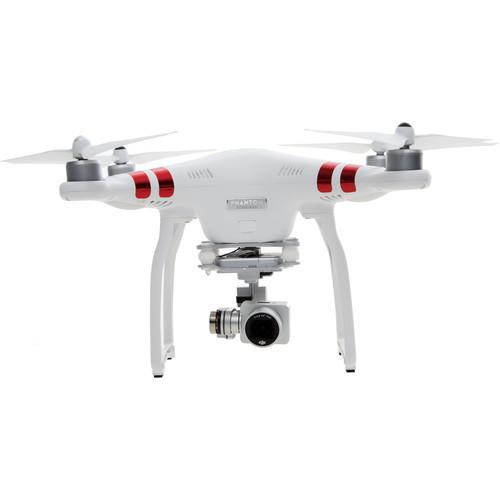

A 4K camera and 3-axis gimbal system come integrated with this no controller/charger version of the Phantom 3 quadcopter from DJI. In addition to video, the camera is capable shooting up to 12MP still photos using JPEG or non-proprietary DNG RAW format. The three axes of the gimbal give you pan and tilt control, and keep the horizon line level even as the aircraft banks. Different gimbal settings allow the camera to lock onto a fixed subject, be moved manually using transmitter rotaries or the app, or to simply provide camera stabilization.

Note: This bundle does not include a radio controller (transmitter) or flight battery charger. These items are required before using. Please refer to the User Guide for details on binding the controller with the flight controller.
If you own a DJI aerial imaging platforms & drones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299:
Specifications
Performance
Maximum Speed Ascent: 16.4' fps / 5 m/s
Descent: 9.8' / 3 m
Hover Accuracy Vertical: ±3.9" / 10 cm
Horizontal: ±3.3' / 1 m
Maximum Altitude Above Sea Level: 19,685' / 6000 m
Flight Time 23 minutes (depending on conditions)
Flight Control System
GPS Mode GPS / GLONASS
Vision Positioning Frequency: 50 Hz
Velocity Range: Below 26.2 fps / 8 m/s (6.6' / 2 m above the ground)
Altitude Range: 11.8" to 118.1" / 30 cm to 300 cm
Operating Range: 11.8" to 118.1" / 30 cm to 300 cm

Operating Environment: Surface with clear pattern and adequate lighting (> 15 lux)
Camera
Sensor Make: Sony EXMOR
Size: 1/2.3"
Resolution: 12.76 MP (12.4 MP effective)
Lens Aperture: f/2.8
FOV: 94°
Focal Length: 20 mm (35 mm equivalent)
Elements: 9
Focus: 0 to ∞
Photo Resolution Up to 12 MP (4000 x 3000)
ISO Range Video: 100 to 3200
Photo: 100 to 1600
Video Resolutions DCI 4K (4096 x 2160): 24p, 25p
UHD 4K (3840 x 2160): 24p, 25p, 30p
1080p (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p
720p (1280 x 720): 24p, 25p, 30p, 48p, 50p, 60p
Photo Modes Single Shot
Burst Shooting: 3/5/7 shots
Auto Exposure Bracketing (AEB): 3/5
Bracketed Frames at 0.7 EV Bias
Time-lapse
File Formats Video: MPEG-4 AVC/H.264 in MOV wrapper (up to 60 Mbps)
Photo: JPEG, DNG RAW
Recording Media Type: microSD/SDXC card up to 64 GB
Format: FAT32 / exFAT

Note: Class 10, UHS-1 or faster card required
Operating Temperature 32 to 104°F / 0 to 40°C
Gimbal
Number of Axes 3-axis (pitch, roll, yaw)
Control Range -90° to +30°
Motor
Type Brushless
Recommended Takeoff Weight 10.6 oz / 300 g per axis
Maximum Tension 1.8 lb / 800 g per axis
Stator Size 0.9 x 0.5" / 23 x 12 mm
Motor Velocity Constant KV: 960 rpm/V
Working Temperature 23 to 104°F / -5 to 40°C
Weight 1.9 oz / 55 g
General
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions Diagonal (Including Propellers): 23.2" / 590 mm
Weight Including Battery and Propellers: 2.8 lb / 1.3 kg
The user manual for the DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299 can be downloaded in .pdf format if it did not come with your new aerial imaging platforms & drones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other DJI users keep a unique electronic library for DJI aerial imaging platforms & droness, where you can use our link to download the user manual for the DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299.

The user manual lists all of the functions of the DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299, all the basic and advanced features and tells you how to use the aerial imaging platforms & drones. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from DJI service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the DJI Phantom 3 Quadcopter with 4K Camera and 3-Axis CP.PT.000299. User manuals are also available on the DJI website under Camcorders - Aerial Imaging & Drones - Aerial Imaging Platforms & Drones.
