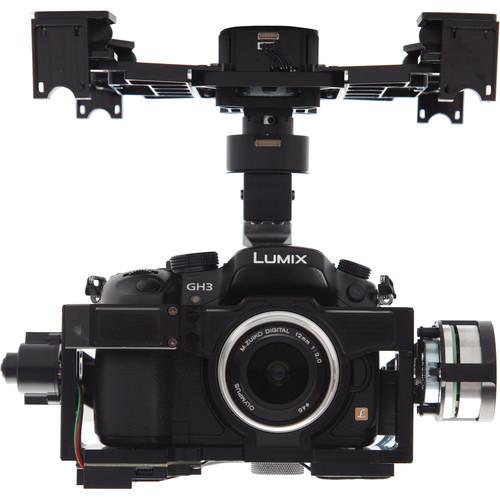

The Zenmuse Z15-GH3 3-Axis Gimbal for Panasonic GH3 from DJI performs two key functions: keeping the camera level and providing stabilization, thus helping you transform a larger multi-rotor UAV, such as the S1000, into a platform for professional aerial video and aerial photography. Featuring ±0.02° control angle accuracy, the Z15-GH3 supports three operation modes; two optimized for aerial video and photo use and one for FPV (first person view) applications. The gimbal is operated using a dedicated stick on your transmitter (hand-held radio controller), and the receiver must have at least four free channels that can be assigned to gimbal operation.

Each version of the Z15 Gimbal is designed for a specific camera and lens combination. This version is for the Panasonic DMC-GH3 with the Olympus M.ZUIKO Digital ED 12mm f/2.0 lens. Additionally, it is specifically balanced for this precise setup. Additions to the camera or lens, such as filters, can increase the weight and alter the weight distribution potentially damaging the gimbal.

Note: Installation may require soldering.
If you own a DJI dji accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DJI Zenmuse Z15-GH3 3-Axis Gimbal for Panasonic GH3 CP.ZM.000021 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for DJI Zenmuse Z15-GH3 3-Axis Gimbal for Panasonic GH3 CP.ZM.000021Download user manual for DJI Zenmuse Z15-GH3 3-Axis Gimbal for Panasonic GH3 CP.ZM.000021
(PDF file, 1.68 MB)
Additional parameters of the DJI Zenmuse Z15-GH3 3-Axis Gimbal for Panasonic GH3 CP.ZM.000021:
Supported Camera Panasonic DMC-GH3
Supported Lens Olympus M.ZUIKO Digital ED 12mm f/2.0
Control Requirements At least 4 spare receiver channels
S-Bus/PPM receiver supported
Software Requirements For Assistant Software: Windows 8, 7, XP SP3 -- 32 or 64-bit
Working Current Static Current: 200 mA at 25 V
Dynamic Current: 400 mA at 25 V
Locked-Rotor Current: 4 A at 25 V
GCU BEC Output 10 A at 12 V
Transmit Power GCU Wireless Video Transmission: 1 A at 12 V
Controlled Angle Accuracy ±0.01°
Maximum Controlled Rotation Speed Pan Axis: ±130°/s
Tilt Axis: ±130°/s
Roll Axis ±30°/s
Controlled Rotation Range Pan Axis Control: ±360° continuous rotation
Tilt Axis Control: ±360° continuous rotation
Roll Axis Control: ±40°
Power Requirements GCU: 4S to 12 S LiPo (6S if using S800)
Operating Temperature 14 to 122°F (-10 to 50°C)
Dimensions Gimbal: 8.7 x 8.7 x 7.5" (220 x 220 x 190 mm)
GCU: 2.5 x 1.4 x 0.8" (64.2 x 34.1 x 19.5 mm)
Weight Gimbal: 2.6 lb (1.2 kg)
GCU: 2.2 oz (63 g)
Packaging Info
Package Weight 4.25 lb
The user manual for the DJI Zenmuse Z15-GH3 3-Axis Gimbal for Panasonic GH3 CP.ZM.000021 can be downloaded in .pdf format if it did not come with your new dji accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other DJI users keep a unique electronic library for DJI dji accessoriess, where you can use our link to download the user manual for the DJI Zenmuse Z15-GH3 3-Axis Gimbal for Panasonic GH3 CP.ZM.000021.
