DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018
  • Manufacturer: DJI
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - DJI Accessories
  • Safety instructions
  • Startup and operation of the dji accessories
  • Tips for setting up your DJI
  • Settings and expert assistance
  • Contact DJI service
  • Troubleshooting
  • Warranty information
DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018 DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018 DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018 DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018
Click to enlarge image

We recommend checking out our discussion threads on the DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018, which address similar problems with connecting and setting up DJI Accessories DJI.



User manual for the DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018

The user manual for the DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018 provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - DJI Accessories.

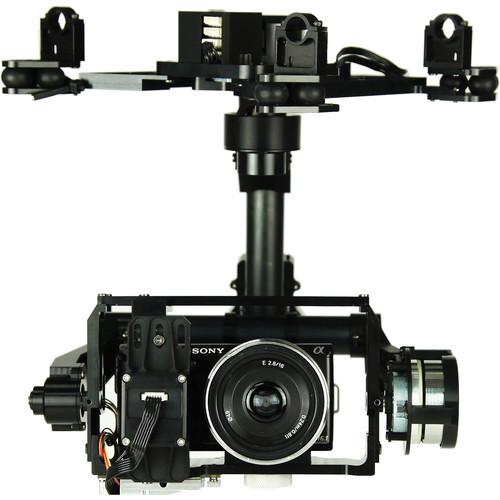

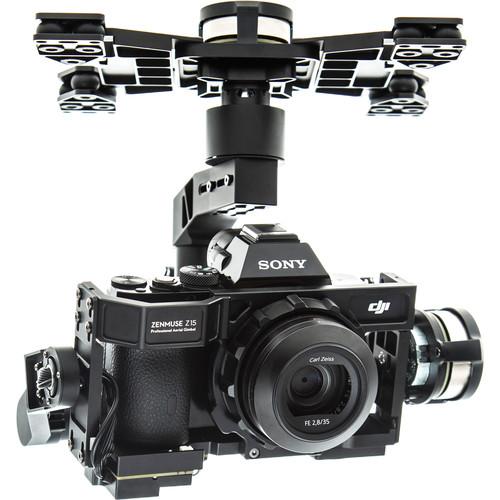

The Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R from DJI performs two key functions: keeping the camera level and providing stabilization, thus helping you transform a larger multi-rotor UAV, such as the S1000+ or S900, into a platform for professional aerial video and aerial photography. Featuring ±0.01° control angle accuracy, the Zenmuse Z15-N5Rsupports three operation modes; two optimized for aerial video and photo use and one for FPV (first person view) applications. The gimbal is operated using a dedicated stick on your transmitter (hand-held radio controller), and the receiver must have at least four free channels that can be assigned to gimbal operation.

Each version of the Z15 Gimbal is designed for a specific camera and lens combination. This version is for the Sony NEX-5R with the Sony SEL16F28 16mm f/2.8 lens. Additionally, it is specifically balanced for this precise setup. Additions to the camera or lens, such as filters, can increase the weight and alter the weight distribution potentially damaging the gimbal.

Note: Installation may require soldering.
If you own a DJI dji accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018Download user manual for DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018
(PDF file, 1.36 MB)
Additional parameters of the DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018:
Specifications
    Peripheral
    Supported Camera Sony NEX-5R
    Supported Lens Sony SEL16F28 16mm f/2.8
    Control Requirements At least 4 spare receiver channels
    S-Bus/PPM receiver supported
    Software Requirements For Assistant Software: Windows 8, 7, XP SP3 -- 32 or 64-bit
    Electrical Characteristics
    Working Current Static Current: 200 mA at 25 V
    Dynamic Current: 400 mA at 25 V
    Locked-Rotor Current: 4 A at 25 V
    GCU BEC Output 10 A at 12 V
    Transmit Power GCU Wireless Video Transmission: 1 A at 12 V
    Performance
    Load Weight (Reference Value) Not specified by manufacturer
    Controlled Angle Accuracy ±0.01°
    Maximum Controlled Rotation Speed Pan Axis: ±130°/s
    Tilt Axis: ±130°/s
    Roll Axis ±30°/s
    Controlled Rotation Range Pan Axis Control: ±360° continuous rotation
    Tilt Axis Control: ±360° continuous rotation
    Roll Axis Control: ±40° (±360° mechanical continuous rotation)
    General
    Power Requirements GCU: 4S to 12 S LiPo (6S if using S800, S1000+)
    Operating Temperature 14 to 122°F (-10 to 50°C)
    Dimensions Gimbal: 8.7 x 8.7 x 7.5" (220 x 220 x 190 mm)
    Camera Frame Dimensions: 5.6 x 3" (142 x 76 mm)
    GCU: 2.5 x 1.4 x 0.8" (64.2 x 34.1 x 19.5 mm)
    Weight Gimbal: 2.9 lb (1.3 kg)
    GCU: 2.2 oz (63 g)
    The user manual for the DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018 can be downloaded in .pdf format if it did not come with your new dji accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other DJI users keep a unique electronic library for DJI dji accessoriess, where you can use our link to download the user manual for the DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018.

    The user manual lists all of the functions of the DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018, all the basic and advanced features and tells you how to use the dji accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from DJI service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the DJI Zenmuse Z15-N5R 3-Axis Gimbal for Sony NEX-5R CP.ZM.000018. User manuals are also available on the DJI website under Camcorders - Aerial Imaging & Drones - DJI Accessories.
