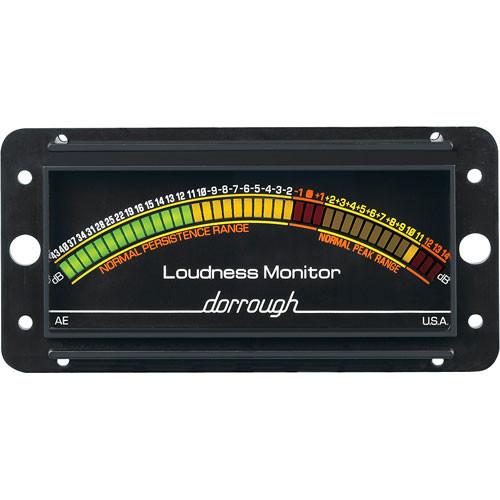

The Dorrough 10-AE Analog Loudness Meter +43dB is a single-channel version of Dorrough's standard 40-A loudness meter with a display scale allowing 43dB of headroom in 1dB steps and Phoenix (euroblock) connectors. The headroom scale is identical to the AES/EBU Digital Standard.
If you own a Dorrough metering and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Dorrough Analog Loudness Meter 43dB 10-AE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Dorrough Analog Loudness Meter 43dB 10-AE:
Input Impedance 20k Ohm balanced, 10k Ohm single-ended, +/- 2%
Common Mode Rejection Ratio 80 dB at 60 Hz, 60 dB at 20 kHz (balanced mode)
Input Sensitivity -10 dB for full-scale display
Maximum Input Level +24 dB before clipping
Signal Path Bandwidth 10 Hz - 25 kHz, +/- .25 dB
Signal Path Distortion Less than 1% THD at 1 kHz, +24 dB input
Sum Error Less than 0.1 dB at 1 kHz
Difference Error Less than 0.1 dB at 1 kHz
Display Resolution Less than 0.1 dB at 1 kHz
Step Size Error +/- 0.25 dB
Absolute Error Full Scale -39 dBu: +/- 0.25 dB model A,B,C
Drift +/- 0.25 dB
Average Time Constant 600 mS, +/- 6%
Peak Acquisition Period 10 uS, to full-scale, sine input 25kHz
Peak Attack Period Virtually Instantaneous
Peak Decay Period 180 mS, from full-scale to all LEDs off (models A, B, C)
Display Update Rate Approximately 10 mS
Display Duty Cycle Display Time, AVERAGE, PEAK HOLD - 75%

Display Time, PEAK - 100%

Power Supply Input Range 117/237 VAC RMS, -20% to +10%, 50-60 Hz
Calibration Controls None Needed
User Controls Left/Right input sensitivity Option DIP Switch

A) Peak Auto [ON]

B) Difference Mode [ON/OFF]

C) Over Level Alarm [ENABLE]

D) Under Level Alarm [ENABLE]

E) Auto ARMP

User Port DB-9 Connector A) Alarm relay closure contacts 1 form C, 1A, 30V AC or DC

 B) Mode control switch (user supplied)

C) PEAK function switch (user supplied)

Dimensions (WxDxH) 4.25 x 3.0 x 2.0" (in.) (1.7 x 1.2 x .8cm)
Weight Not Specified by Manufacturer
Packaging Info
Package Weight 1.5 lb
Box Dimensions (LxWxH) 0.01 x 0.01 x 0.01"
