User manual for the DPA Microphones d:fine Dual-Ear Headset FIOF10-S2
The user manual for the DPA Microphones d:fine Dual-Ear Headset FIOF10-S2 provides
necessary instructions for the proper use of the product Pro Audio - Location Sound - Microphones for Wireless.

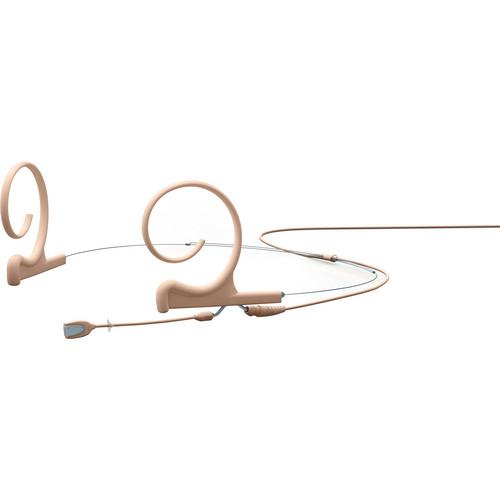

The beige d:fine Dual-Ear Headset Omnidirectional Microphone with Short Boom Arm and Hardwired TA4F Connector for Shure Wireless Systems from DPA Microphones is designed for use in stage or broadcast applications where a minimal visual presence is desired. It has an ergonomic design for a comfortable fit and has been tuned for a high level of voice intelligibility.
If you own a DPA Microphones microphones for wireless and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the DPA Microphones d:fine Dual-Ear Headset FIOF10-S2 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DPA Microphones d:fine Dual-Ear Headset FIOF10-S2:
| Transducer || Pre-polarized condenser |
| Polar Pattern || Omnidirectional |
| Principle of Operation || Pressure or pressure gradient |
| Frequency Response || 20 Hz to 20 kHz |
+/-2 dB: 20 Hz to 20 kHz with 3 dB soft boost @ 8 to 15 kHz
| Maximum SPL || 144 dB |
| Dynamic Range (Typical) || 97 dB (typical) |
| Signal-to-Noise Ratio || 68 dB A typical, A-weighted @ 1 kHz @ 1 Pa (94 dB SPL) |
| Power Requirements || 5 to maximum 50 V through DPA adapter for wireless systems |
| Total Harmonic Distortion || < 1 % up to 123 dB SPL peak |
< 1 % up to 120 dB SPL RMS sine
| Output Impedance || 30 to 40 Ω |
| Output Connectors || Hardwired TA4F |
| CMRR || > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter |
| Current Consumption || 1.5 mA (microphone, typical) |
| Sensitivity || 6 mV/Pa; -44 dB @ 1 V/Pa (nominal, ± 3 dB @ 1 kHz) |
| Noise Level || A-weighted: 26 dB A @ 20 µPa (maximum 28 dB A, typical) |
ITU-R BS.468-4: 38 dB (maximum 40 dB, typical)
| Cable || Length: 4.3' (1.3 m) |
Diameter: 0.06" (1.60 mm)
| Boom || Length: 1.6" (40 mm) |
| Capsule Diameter || 0.2" (5.4 mm) |
| EMC Compatibility || Fully compatible |
| Temperature Range || -40 to 113°F (-40 to 45°C) |
| Relative Humidity || ≤ 90% |
| Microphone Head Size || 0.37 x 0.21 x 0.11" (9.50 x 5.30 x 2.90 mm) |
| Weight || Microphone boom: 0.03 oz (0.8 g) |
Earhook: 0.04 oz (1.1 g)
Cable: 0.23 oz (6.6 g)
Total weight: 0.3 oz (8.5 g)
| Package Weight || 2.0 lb |
| Box Dimensions (LxWxH) || 6.0 x 6.0 x 2.0" |
The user manual for the DPA Microphones d:fine Dual-Ear Headset FIOF10-S2 can be downloaded in .pdf
format if it did not come with your new microphones for wireless, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other DPA Microphones users keep a unique electronic library
for DPA Microphones microphones for wirelesss,
where you can use our link to download the user manual for the DPA Microphones d:fine Dual-Ear Headset FIOF10-S2.
The user manual lists all of the functions of the DPA Microphones d:fine Dual-Ear Headset FIOF10-S2,
all the basic and advanced features and tells you how to use the microphones for wireless.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from DPA Microphones service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the DPA Microphones d:fine Dual-Ear Headset FIOF10-S2. User manuals are also
available on the DPA Microphones website under Pro Audio - Location Sound - Microphones for Wireless.
