User manual for the DPA Microphones d:fine Single-Ear Headset FIOCA34
The user manual for the DPA Microphones d:fine Single-Ear Headset FIOCA34 provides
necessary instructions for the proper use of the product Pro Audio - Location Sound - Microphones for Wireless.

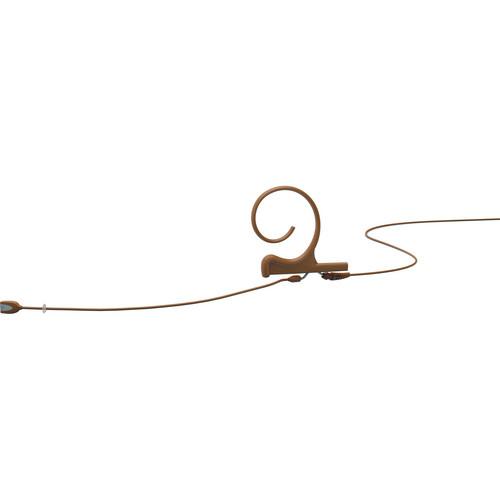

The brown d:fine Single-Ear Headset Omnidirectional Microphone with Long Boom Arm and Microdot Termination with 3.5mm Locking Connector for Sennheiser Wireless Systems from DPA Microphones is designed for use in stage or broadcast applications where a minimal visual presence is desired. It has an ergonomic design for a comfortable fit and has been tuned for a high level of voice intelligibility.
If you own a DPA Microphones microphones for wireless and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the DPA Microphones d:fine Single-Ear Headset FIOCA34 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DPA Microphones d:fine Single-Ear Headset FIOCA34:
| Transducer || Pre-polarized condenser |
| Polar Pattern || Omnidirectional |
| Principle of Operation || Pressure or pressure gradient |
| Frequency Response || 20 Hz to 20 kHz |
+/-2 dB: 20 Hz to 20 kHz with 3 dB soft boost @ 8 to 15 kHz
| Maximum SPL || 144 dB |
| Dynamic Range (Typical) || 97 dB (typical) |
| Signal-to-Noise Ratio || 68 dB A typical, A-weighted @ 1 kHz @ 1 Pa (94 dB SPL) |
| Power Requirements || 5 to maximum 50 V through DPA adapter for wireless systems |
| Total Harmonic Distortion || < 1 % up to 123 dB SPL peak |
< 1 % up to 120 dB SPL RMS sine
| Output Impedance || 30 to 40 Ω |
| Output Connectors || Microdot termination |
| CMRR || > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter |
| Current Consumption || 1.5 mA (microphone, typical) |
| Sensitivity || 6 mV/Pa; -44 dB @ 1 V/Pa (nominal, ± 3 dB @ 1 kHz) |
| Noise Level || A-weighted: 26 dB A @ 20 µPa (maximum 28 dB A, typical) |
ITU-R BS.468-4: 38 dB (maximum 40 dB, typical)
| Cable || Length: 4.3' (1.3 m) |
Diameter: 0.06" (1.60 mm)
| Boom || Length: 4.3" (110 mm) |
| Capsule Diameter || 0.2" (5.4 mm) |
| EMC Compatibility || Fully compatible |
| Temperature Range || -40 to 113°F (-40 to 45°C) |
| Relative Humidity || ≤ 90% |
| Microphone Head Size || 0.37 x 0.21 x 0.11" (9.50 x 5.30 x 2.90 mm) |
| Weight || Microphone boom: 0.03 oz (0.8 g) |
Earhook: 0.04 oz (1.1 g)
Cable: 0.23 oz (6.6 g)
Total weight: 0.3 oz (8.5 g)
| Package Weight || 2.0 lb |
| Box Dimensions (LxWxH) || 6.0 x 6.0 x 2.0" |
