User manual DPA Microphones d:fine Single-Ear Headset FIOFA33-S

Operating instructions and pdf manual for use - DPA Microphones d:fine Single-Ear Headset FIOFA33-S User manual, User manual DPA Microphones d:fine Single-Ear Headset FIOFA33-S, DPA, Microphones, d:fine, Single-Ear, Headset, FIOFA33-S,


User manual for DPA Microphones d:fine Single-Ear Headset FIOFA33-S

DPA Microphones d:fine Single-Ear Headset FIOFA33-S
  • Manufacturer: DPA Microphones
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Microphones for Wireless
  • Safety instructions
  • Startup and operation of the microphones for wireless
  • Tips for setting up your DPA Microphones
  • Settings and expert assistance
  • Contact DPA Microphones service
  • Troubleshooting
  • Warranty information
  • Price: 700 USD
We recommend checking out our discussion threads on the DPA Microphones d:fine Single-Ear Headset FIOFA33-S, which address similar problems with connecting and setting up Microphones for Wireless DPA Microphones.



User manual for the DPA Microphones d:fine Single-Ear Headset FIOFA33-S

The user manual for the DPA Microphones d:fine Single-Ear Headset FIOFA33-S provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Microphones for Wireless.

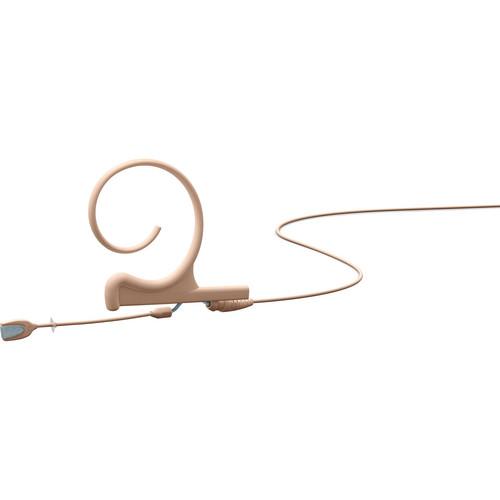

The beige d:fine Single-Ear Headset Omnidirectional Microphone with Short Boom Arm and Microdot Termination with 4-Pin Hirose Connector for Audio-Technica from DPA Microphones is designed for use in stage or broadcast applications where a minimal visual presence is desired. It has an ergonomic design for a comfortable fit and has been tuned for a high level of voice intelligibility.
If you own a DPA Microphones microphones for wireless and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the DPA Microphones d:fine Single-Ear Headset FIOFA33-S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the DPA Microphones d:fine Single-Ear Headset FIOFA33-S:
Specifications
    Transducer Pre-polarized condenser
    Polar Pattern Omnidirectional
    Principle of Operation Pressure or pressure gradient
    Frequency Response 20 Hz to 20 kHz
    +/-2 dB: 20 Hz to 20 kHz with 3 dB soft boost @ 8 to 15 kHz
    Maximum SPL 144 dB
    Dynamic Range (Typical) 97 dB (typical)
    Signal-to-Noise Ratio 68 dB A typical, A-weighted @ 1 kHz @ 1 Pa (94 dB SPL)
    Power Requirements 5 to maximum 50 V through DPA adapter for wireless systems
    Total Harmonic Distortion < 1 % up to 123 dB SPL peak
    < 1 % up to 120 dB SPL RMS sine
    Output Impedance 30 to 40 Ω
    Output Connectors Microdot termination
    CMRR > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter
    Current Consumption 1.5 mA (microphone, typical)
    Sensitivity 6 mV/Pa; -44 dB @ 1 V/Pa (nominal, ± 3 dB @ 1 kHz)
    Noise Level A-weighted: 26 dB A @ 20 µPa (maximum 28 dB A, typical)
    ITU-R BS.468-4: 38 dB (maximum 40 dB, typical)
    Cable Length: 4.3' (1.3 m)
    Diameter: 0.06" (1.60 mm)
    Boom Length: 1.6" (40 mm)
    Capsule Diameter 0.2" (5.4 mm)
    EMC Compatibility Fully compatible
    Temperature Range -40 to 113°F (-40 to 45°C)
    Relative Humidity ≤ 90%
    Microphone Head Size 0.37 x 0.21 x 0.11" (9.50 x 5.30 x 2.90 mm)
    Weight Microphone boom: 0.03 oz (0.8 g)
    Earhook: 0.04 oz (1.1 g)
    Cable: 0.23 oz (6.6 g)
    Total weight: 0.3 oz (8.5 g)
    Packaging Info
    Package Weight 2.0 lb
    Box Dimensions (LxWxH) 6.0 x 6.0 x 2.0"
    Product Demo
    The user manual for the DPA Microphones d:fine Single-Ear Headset FIOFA33-S can be downloaded in .pdf format if it did not come with your new microphones for wireless, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other DPA Microphones users keep a unique electronic library for DPA Microphones microphones for wirelesss, where you can use our link to download the user manual for the DPA Microphones d:fine Single-Ear Headset FIOFA33-S.

    The user manual lists all of the functions of the DPA Microphones d:fine Single-Ear Headset FIOFA33-S, all the basic and advanced features and tells you how to use the microphones for wireless. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from DPA Microphones service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the DPA Microphones d:fine Single-Ear Headset FIOFA33-S. User manuals are also available on the DPA Microphones website under Pro Audio - Location Sound - Microphones for Wireless.
