User manual Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ

Operating instructions and pdf manual for use - Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ User manual, User manual Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ, Draper, 108354ENQ, 57.5, x, 92, Silhouette/Series, E, 1083


User manual for Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ

Draper 108354ENQ 57.5 x 92
  • Manufacturer: Draper
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projection Screens - Electric Screens (Wide Formats)
  • Safety instructions
  • Startup and operation of the electric screens (wide formats)
  • Tips for setting up your Draper
  • Settings and expert assistance
  • Contact Draper service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ, which address similar problems with connecting and setting up Electric Screens (Wide Formats) Draper.



User manual for the Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ

The user manual for the Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ provides necessary instructions for the proper use of the product A/V Presentation - Projection Screens - Electric Screens (Wide Formats).

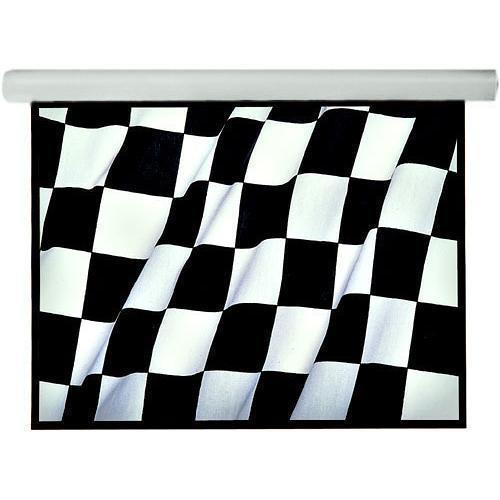

The 108354ENQ 57.5 x 92" Silhouette/Series E Screen from Draper is housed in a white, curved aluminum case, and can be mounted on the wall or ceiling. The screen and dowel retract completely inside the case. An included three-position wall switch provides up, down, and stop controls. The quiet motor on this screen operates at a reduced noise level of 44 dB, which is approximately 30% less than the standard motor. Quiet motors are ideal in settings where noise reduction is important, such as in a library or house of worship.

Ecomatt XT700E is PVC-free, as it's made of 100% polyester yarn. As a part of Draper's OptiView family of screen surfaces, Ecomatt is self-supporting and does not require tensioning to lay flat. The surface provides an accurate color balance over a full 180° field. Gain at 0° is 0.7. Draper recommends this surface in rooms where ambient light can be reasonably controlled. The surface can be cleaned with a feather duster and is fully recyclable. Ecomatt is GREENGUARD Children and Schools certified and Cradle to Cradle Silver certified. It is also flame-retardant to NFPA-701 standards.
If you own a Draper electric screens (wide formats) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ:
Type
Front/Rear Projection Front
Style Wall and ceiling
Dimensions
Viewing Area 57.5 x 92.0" / 146.0 x 233.7 cm
Diagonal 109.0" / 276.9 cm
Overall HxW 69.5 x 96.0 " / 176.5 x 243.8  cm
Extra Top Drop 12" / 30.5 cm
Surface
Gain 0.7
Viewing Angle 180 degrees
Masking All four sides
Black Backing Yes
Controls
Motor Quiet
Low Voltage Control No
Included Controls Wall switch
Casing
Finish Aluminum
Length 108.0" / 274.3 cm
General
Voltage 120 VAC/60 Hz
Weight 45.0 lb / 20.4 kg , approximate
The user manual for the Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ can be downloaded in .pdf format if it did not come with your new electric screens (wide formats), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Draper users keep a unique electronic library for Draper electric screens (wide formats)s, where you can use our link to download the user manual for the Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ.

The user manual lists all of the functions of the Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ, all the basic and advanced features and tells you how to use the electric screens (wide formats). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Draper service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Draper 108354ENQ 57.5 x 92" Silhouette/Series E 108354ENQ. User manuals are also available on the Draper website under A/V Presentation - Projection Screens - Electric Screens (Wide Formats).
