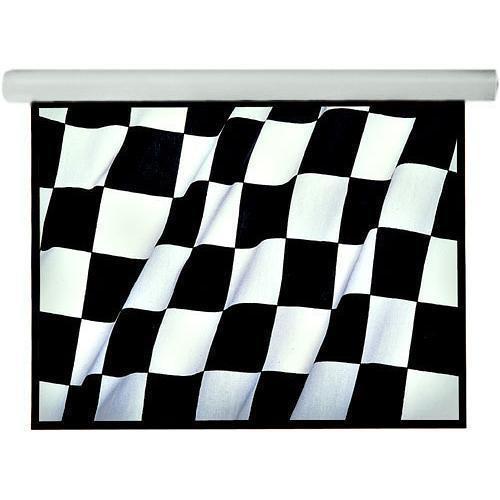

The 108400EJQLP 54 x 96" Silhouette/Series E Screen from Draper is housed in a white, curved aluminum case, and can be mounted on the wall or ceiling. The screen and dowel retract completely inside the case. An included three-position wall switch provides up, down, and stop controls. The quiet motor on this screen operates at a reduced noise level of 44 dB, which is approximately 30% less than the standard motor. Quiet motors are ideal in settings where noise reduction is important, such as in a library or house of worship. The low voltage controller is built into the motor, simplifying installation. The LVC is compatible with IR and RF transmitters and receivers (sold separately), which can be used to control the screen from your couch or even from another room. The included 3-button wall switch operates the screen and sets limit switches. A 25' data cable is included to connect the switch to the LVC. With Plug n Play, a 10' extension cord connects from the screen's junction box to your electrical outlet, keeping you from having to hire an electrician to do the wiring.

Pearl White CH1900E is a matt white surface with a pearlescent coating, providing good resolution, color balance, and uniformity. The surface can tolerate a higher level of ambient light, and black backing helps control ambient light coming from behind the screen. Gain at 0° is 1.9, and the surface reaches half gain at 23°, for a 46° total viewing cone. As a part of Draper's OptiView family of screen surfaces, Pearl White is a self-supporting surface and doesn't need tensioning to hang flat, thanks to a laminated and coated PVC surface and tear-proof fiberglass base. Pearl White is a flame- and mildew-resistant surface, and can be cleaned with a clean damp cloth. The surface is also flame-retardant to NFPA-701 standards.
If you own a Draper electric screens (wide formats) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Draper 108400EJQLP 54 x 96" Silhouette/Series E 108400EJQLP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Draper 108400EJQLP 54 x 96" Silhouette/Series E 108400EJQLP:
Specifications
    Type
    Front/Rear Projection Front
    Style Wall and ceiling
    Dimensions
    Viewing Area 54.0 x 96.0" / 137.2 x 243.8 cm
    Diagonal 110.0" / 279.4 cm
    Overall HxW 66.0 x 100.0 " / 167.6 x 254.0  cm
    Extra Top Drop 12" / 30.5 cm
    Surface
    Gain 1.9
    Viewing Angle 46 degrees
    Masking All four sides
    Black Backing Yes
    Controls
    Motor Quiet
    Low Voltage Control Yes
    Included Controls Wall switch
    Casing
    Finish Aluminum
    Length 112.0" / 284.5 cm
    General
    Voltage 120 VAC/60 Hz
    Weight 45.0 lb / 20.4 kg , approximate
