User manual E-Image ES-70 27" Carbon Fiber Slider ES-70

Operating instructions and pdf manual for use - E-Image ES-70 27" Carbon Fiber Slider ES-70 User manual, User manual E-Image ES-70 27" Carbon Fiber Slider ES-70, E-Image, ES-70, 27, Carbon, Fiber, Slider, ES-70, Video


User manual for E-Image ES-70 27" Carbon Fiber Slider ES-70

E-Image  ES-70 27
  • Manufacturer: E-Image
  • Basic description and contents of package
  • Product classification: Professional Video - Tripods, Supports & Rigs - Camera Sliders
  • Safety instructions
  • Startup and operation of the camera sliders
  • Tips for setting up your E-Image
  • Settings and expert assistance
  • Contact E-Image service
  • Troubleshooting
  • Warranty information
  • Price: 495 USD
E-Image  ES-70 27 E-Image  ES-70 27
Click to enlarge image

We recommend checking out our discussion threads on the E-Image ES-70 27" Carbon Fiber Slider ES-70, which address similar problems with connecting and setting up Camera Sliders E-Image.



User manual for the E-Image ES-70 27" Carbon Fiber Slider ES-70

The user manual for the E-Image ES-70 27" Carbon Fiber Slider ES-70 provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Camera Sliders.

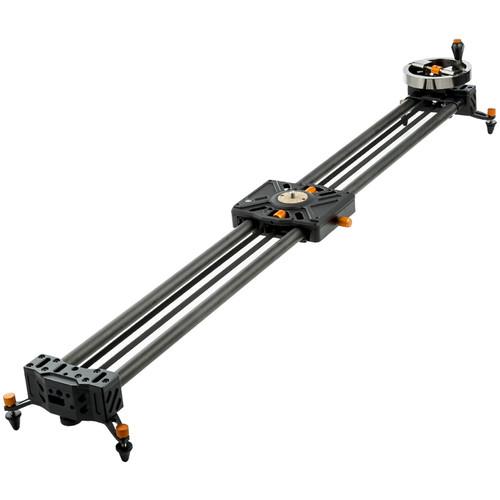

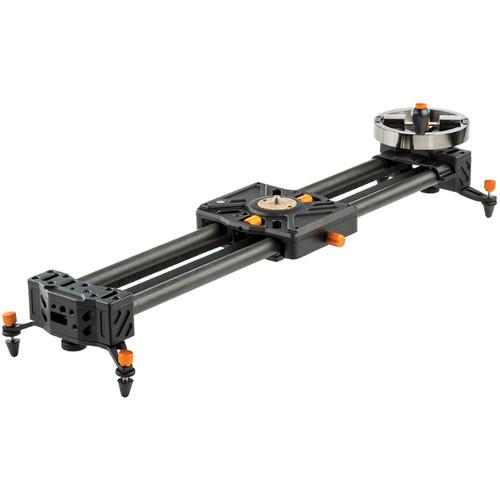

E-Image's ES-70 is a 27" slider supporting up to 15 lb payloads in multiple modes of operation. It features a flywheel belt-drive system offering adjustable resistance via a squeeze mechanism at the top of the flywheel. It also supports the use of an included crank, and can be used the traditional way upon removal of the flywheel. There are standard 1/4"-20 and 3/8"-16 tripod threads on the bottom and a 5/8" stand mount receiver on each end that allows mounting on C-stands and baby stands so you can set the slider at various heights.

The included outrigger feet are individually adjustable, so you can level the slider evenly on different surfaces. The camera mounting platform is a large 5 x 5" and has a bubble level, and the tripod mount plate (underneath the rails) is even larger at 5 x 6", allowing for sturdier tripod mounting. The slider also supports an optional motion control accessory that will let you take advantage of the smooth belt drive for time-lapse shooting.
If you own a E-Image camera sliders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the E-Image ES-70 27" Carbon Fiber Slider ES-70 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the E-Image ES-70 27" Carbon Fiber Slider ES-70:
Length 27" (69 cm)
Payload 15 lb (6.8 kg)
Material Aluminum and carbon fiber
Mounting Surface 5 x 6" (12.7 x 15 cm) camera platform
5 x 5" (12.7 x 12.7 cm) tripod mount plate (underneath rails)
Mount Types 1/4"-20 screw on mounting surface
1/4"-20 and 3/8"-16 tripod-mount threads
5/8" stand mount receiver at each end
Weight 5 lb (2.27 kg)
Packaging Info
Package Weight 12.0 lb
Box Dimensions (LxWxH) 39.5 x 8.5 x 5.0"
The user manual for the E-Image ES-70 27" Carbon Fiber Slider ES-70 can be downloaded in .pdf format if it did not come with your new camera sliders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other E-Image users keep a unique electronic library for E-Image camera sliderss, where you can use our link to download the user manual for the E-Image ES-70 27" Carbon Fiber Slider ES-70.

The user manual lists all of the functions of the E-Image ES-70 27" Carbon Fiber Slider ES-70, all the basic and advanced features and tells you how to use the camera sliders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from E-Image service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the E-Image ES-70 27" Carbon Fiber Slider ES-70. User manuals are also available on the E-Image website under Professional Video - Tripods, Supports & Rigs - Camera Sliders.
