User manual for the Eizo CG247 24" Widescreen ColorEdge LED Backlit CG247-BK
The user manual for the Eizo CG247 24" Widescreen ColorEdge LED Backlit CG247-BK provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

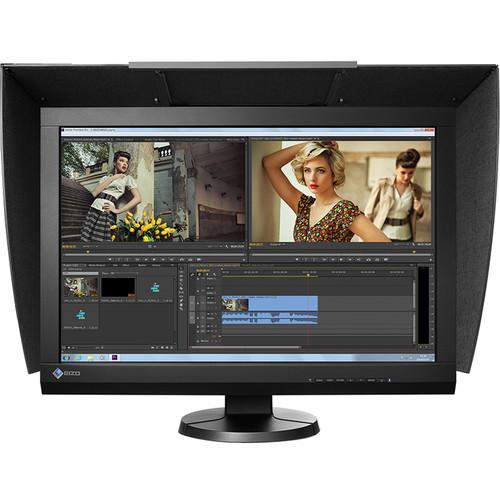

The CG247 24" Widescreen ColorEdge LED Backlit IPS Monitor from EIZO features a built-in color sensor to ensure the monitor maintains your settings by adjusting various aspects of the display at pre-determined intervals. The display itself reproduces 99% of the Adobe RGB color space for enhanced color accuracy while remaining uniform from corner to corner thanks to EIZO's DUE equalizer technology. Within 7 minutes of the time you turn on your CX241 monitor the display will be warmed up and ready to use.
The EIZO CG247 comes equipped with DisplayPort, DVI-I, and HDMI inputs, making it easy to plug this monitor into a variety of computer configurations. The IPS display comes with a max resolution of 1920 x 1200, a 1,000:1 contrast ratio, a 7.7 ms response time, a brightness rating of 350 cd/m² and support for up to 1.07 billion colors. Whether mounting this VESA-compatible monitor to the wall or viewing it from the stand, you can see the display from nearly any point of view as it supports 178° horizontal and vertical viewing angles.
|
If you own a Eizo computer monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Eizo CG247 24" Widescreen ColorEdge LED Backlit CG247-BK in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Eizo CG247 24" Widescreen ColorEdge LED Backlit CG247-BK:
| Size | 24" / 61 cm | | Type | Color TFT (IPS) | | Backlight | LED | | Display Area (HxV) | 20.4 x 12.8" / 518.4 x 324.0 mm | | Viewing Angles | Horizontal: 178°
Vertical: 178° | | Recommended Brightness | 120 cd/m² or less (with "temperature" of between "5000K" to "6500K") | | Recommended Resolution | 1920 x 1200 | | Contrast Ratio | 1,000:1 (when "due priority" setting is "brightness") | | Dot Pitch | 0.27 × 0.27 mm | | Response Time | Black-white-black: Approximately 12 ms
Gray-to-gray: Approximately 7.7 ms (when the overdrive setting is "On") | | Color Gamut | Adobe RGB Coverage: 99%
NTSC Ratio: 110% | | Input Terminals | 1 x DVI-D (single link , applicable to HDCP)
1 x HDMI (applicable to HDCP)
1 x DisplayPort (applicable to HDCP) | | Dot Clock | 164.5 MHz | | Horizontal Scan Range | DVI / DisplayPort: 26 - 78 kHz
HDMI: 15 - 78 kHz | | Vertical Scan Range | DVI / DisplayPort: 23.75 - 63 Hz (non-interlace, 720 x 400: 69 - 71 Hz)
HDMI: 23.75 - 61 Hz (720 x 400: 69 - 71 Hz)
Frame Synchronous Mode: 23.75 - 30.5 Hz, 47.5 - 61 Hz | | Display Colors | DisplayPort: Approximately 1073.74 million colors (for 10 bit input)
HDMI: Approximately 1073.74 million colors (for 10 bit, 12 bit input)
DVI: Approximately 16.77 million colors | | Plug & Play | DVI / HDMI VESA DDC2B / EDID structure 1.3
DisplayPort VESA DisplayPort / EDID structure 1.4 | | Power Consumption | Screen Display On: 83 W or less
Power saving Mode: 0.7 W or less (when only the DisplayPort 1 connector is connected, "input selection" is set to "manual", no USB device is connected, and DP power save is set to "on", the OS entered sleep mode or the monitor's power off setting activated)
Power Off: 0.5 W or less (when no USB device is connected, DP power save is set to "On")
Main Power Off: 0 W | | Power Saving Mode | DVI: DVI DMPM
DisplayPort: DisplayPort Standard V1.1a | | Temperature | Operating: 32 to 95°F / 0 to 35°C
Transportation/Storage: -4 to 140°F / -20 to 60°C | | Humidity | Operating: 20 to 80%
Transportation/Storage: 10 to 90% | | Air Pressure | Operating: 540 to 1060 hPa
Transportation/Storage: 200 to 1060 hPa | | USB | Input Terminals: 2 x upstream ports, 2 x downstream ports
Standard: USB specification revision 2.0
Supply Current: Max. 500 mA / 1 port | | Tilt | Up 30°, down 0° | | Swivel | 344° | | Height Adjustment | 128.0 mm (6.0 inch, when tilt angle is 0°) | | Rotation | 90° (clockwise) | | Dimensions (WxHxD) | Main Unit
22.6 x 16.4-21.5 x 9.7" / 575.0 x 417.0-545.0 x 245.5 mm
Main Unit (without stand) 22.6 x 15.7 x 2.95" / 575.0 x 398.0 x 75.0 mm
With Monitor Hood
Landscape: 22.9 x 21.8 x 14.5" / 582.5 x 553.0 x 369.0 mm
Portrait: 16.0 x 25.6 x 14.5" / 406.0 x 649.5 x 369.0 mm | | Weight | Main Unit: 20.1 lb / 9.1 kg
Main Unit (without stand): 14.3 lb / 6.5 kg
With Monitor Hood: 28.7 lb / 13.0 kg | | Package Weight | 30.35 lb | | Box Dimensions (LxWxH) | 25.0 x 22.0 x 12.9" | |
