User manual for the Eizo EV3237FX-BK LED Backlit IPS LCD Monitor EV3237FX-BK

The user manual for the Eizo EV3237FX-BK LED Backlit IPS LCD Monitor EV3237FX-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

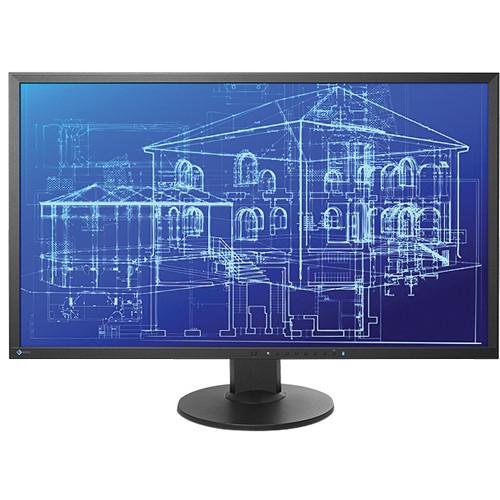

The EV3237FX-BK LED Backlit IPS LCD Monitor from EIZO is a 31.5" monitor with a 4K UHD resolution and 60 Hz refresh rate that allows you to increase your work efficiency by displaying more on the screen at once. With 140 dpi you can take advantage of more than 8 million pixels for enhanced viewing while the IPS panel offers 178° horizontal and vertical viewing angles to making it easier to see the monitor from various angles.

This 4K display is also easy on the eyes as it comes equipped with the EIZO Auto EcoView brightness sensor and flicker-free technology. Preset viewing modes allow you to quickly adjust the screen based upon the content being viewed. You can also adjust the height, tilt, and swivel, aspects of the display for enhanced viewing comfort.
If you own a Eizo computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Eizo EV3237FX-BK LED Backlit IPS LCD Monitor EV3237FX-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Eizo EV3237FX-BK LED Backlit IPS LCD Monitor EV3237FX-BK:
Specifications
    LCD Panel
    Type IPS (anti-glare)
    Backlight LED
    Size 31.5" / 80 cm (diagonal)
    Native Resolution 3840 x 2160
    Brightness 300 cd/m² (typical)
    Contrast Ratio 1,000:1 (typical)
    Display Size (HxV) 696.96 x 392.04 mm
    Pixel Pitch 0.1815 mm
    Display Colors 8-bit colors: 16.7 million colors
    Viewing Angles Horizontal: 178°
    Vertical: 178°
    Response Time 16 ms (black-white-black)
    5 ms (gray-to-gray)(overdrive setting: enhanced)
    Video Signals
    Input Terminals 2 x DisplayPort (HDCP)
    1 x HDMI Type A (HDCP)
    1 x DVI-D (HDCP, Dual-Link/Single Link)
    Digital Scanning Frequency (H, V) 31 to 134 kHz / 29 to 31 Hz
    59 to 61 Hz (VGA TEXT: 69 to 71 Hz)
    Dot Clock DisplayPort: 533.25 MHz
    HDMI: 297 MHz
    DVI: 277.25 MHz
    USB
    Port 1 x upstream
    3 x downstream
    (of which one port supports quick charging)
    Standard USB Specification Revision 3.0
    USB Battery Charging Specification Revision 1.2
    Communication Speed 5 Gb/s (super), 480 Mb/s (high), 12 Mb/s (full), 1.5 Mb/s (low)
    Supply Current Downstream: Max. 900 mA per port
    Downstream Charge Port: Normal: max. 1.5 A per port, charging only: max. 2.1 A per port
    Audio
    Audio Input Format DisplayPort: 2ch linear PCM (32 kHz / 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz)
    HDMI: 2ch linear PCM (32 kHz / 44.1 kHz / 48 kHz)
    Speakers 2 x 1 W speakers
    Input Terminals 1 x Stereo mini jack
    2 x DisplayPort
    1 x HDMI Type A (shared with video signal)
    Output Terminals Headphones: 1 x stereo mini jack
    Power
    Input 100 - 120 VAC ±10 %, 50 / 60 Hz 1.10 A
    200 - 240 VAC ±10 %, 50 / 60 Hz 0.55 A
    Maximum Power Consumption 105 W or less
    Power Save Mode 0.5 W or less (Single DisplayPort interface input, no USB device connected, default settings)
    Standby Mode 0.5 W or less (no USB device connected, default settings)
    Environmental Specifications
    Operating Temperature 41 to 95°F / 5 to 35°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    Operating Humidity 20 to 80% R.H. (no condensation)
    Storage Humidity 10 to 90% R.H. (no condensation)
    Operating Air Pressure 540 to 1060 hPa
    Storage Air Pressure 200 to 1060 hPa
    Physical Specifications
    VESA Mount Compatible 100 x 100 mm
    Tilt Up 35° down 5°
    Dimensions Max. Height: 28.8 x 23.4 x 9.6" / 731 x 594 x 245 mm
    Min. Height: 28.8 x 17.3 x 9.4" / 731 x 439 x 245 mm
    Without Stand: 28.8 x 16.9 x 2.3" / 731 x 428 x 59.5 mm
    Weight With Stand: 23.4 lb / 10.6 kg
    Without Stand: 17.2 lb / 7.8 kg
    Packaging Info
    Package Weight 30.5 lb
    Box Dimensions (LxWxH) 32.0 x 22.0 x 9.5"
