User manual for the Elation Professional Colour Chorus 48 Light Bar (192 LEDs)
The user manual for the Elation Professional Colour Chorus 48 Light Bar (192 LEDs) provides
necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - Stage & Studio.

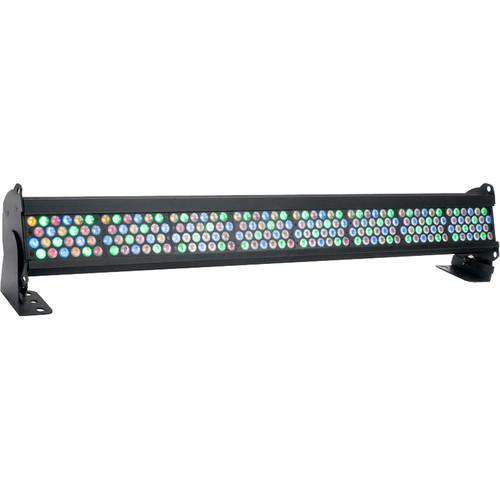

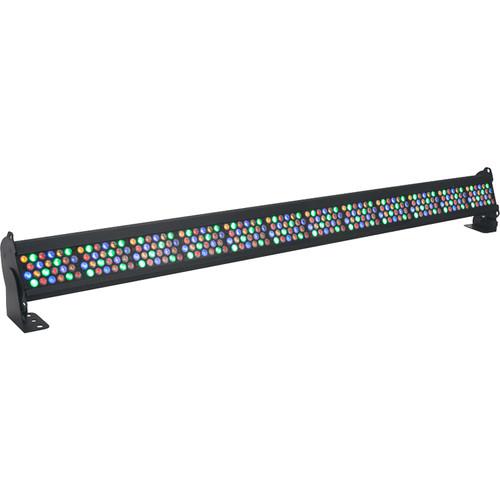

The Colour Chorus 48 from Elation Professional is a 4'-long RGBA (red, green, blue, & amber) light bar featuring 192 individual 3W LEDs: 48 LEDs per color. The fixture offers individual hue, saturation, and intensity control; LED group control; variable dimming curve modes; and strobe & chase effects.
The Colour Chorus 48 incorporates a four-button touch-control panel and an LCD menu display. It supports three & five-pin DMX connectivity, Art-Net & Kling-Net protocols, and RDM (Remote Device Management) control. Flicker-free operation makes the unit suitable for TV and film broadcast. Multiple DMX channel modes enable you to control varying levels of features.
The fixture features a powerCON input and an internal auto-switching power supply. It is compatible with 110-250 VAC outlets and has a maximum power consumption of 446W. The Colour Chorus 48 can be mounted in any position using the integrated rigging brackets (clamps sold separately).
If you own a Elation Professional stage & studio and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Elation Professional Colour Chorus 48 Light Bar (192 LEDs) in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Elation Professional Colour Chorus 48 Light Bar (192 LEDs):
Specifications
Lamp
192 x 3 W (RGBA) LEDs (red, green, blue, amber)
LED Life Expectancy
Average: 100,000 hours
Photometric Data
21,500 lux (1,997 fc) @ 3.3' (1 m) 65° full-on
DMX Connectors
1 x 3-pin XLR male, DMX in 1 x 3-pin XLR female, DMX out 1 x 5-pin XLR male, DMX in 1 x 5-pin XLR female, DMX out 1 x Ethernet RJ45, Art-Net / Kling-Net in 1 x Ethernet RJ45, Art-Net / Kling-Net out
Protocols
DMX512, Art-Net, Kling-Net, and RDM (Remote Device Management)
Effects
Strobe and chase Variable dimming curves Individual hue, saturation, and intensity control
Power Connection Type
1 x powerCON, power in 1 x powerCON, power out
Power Cord Daisy Chain
Yes
Power Supply
110-250 VAC, 50 / 60 Hz
Power Consumption
446 W max.
Display/Controls
LCD menu display with four-button control panel
IP Rating
IP30
Exterior
Rugged die-cast aluminum
Operating Temperature
5 to 113°F (-15 to 45°C)
Rigging Points
Integrated rigging brackets
Working Position
Any (360°)
Approvals
CE cETLus
Dimensions
46.5 x 7.6 x 7.6" (1182.0 x 194.1 x 192.5 mm)
Weight
37 lb (16.8 kg)
The user manual for the Elation Professional Colour Chorus 48 Light Bar (192 LEDs) can be downloaded in .pdf
format if it did not come with your new stage & studio, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Elation Professional users keep a unique electronic library
for Elation Professional stage & studios,
where you can use our link to download the user manual for the Elation Professional Colour Chorus 48 Light Bar (192 LEDs).
The user manual lists all of the functions of the Elation Professional Colour Chorus 48 Light Bar (192 LEDs),
all the basic and advanced features and tells you how to use the stage & studio.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Elation Professional service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Elation Professional Colour Chorus 48 Light Bar (192 LEDs). User manuals are also
available on the Elation Professional website under Lighting & Studio - Continuous Lighting - Stage & Studio.
