User manual for the Elation Professional Opto Branch 8 DMX OPTO BRANCH 8
The user manual for the Elation Professional Opto Branch 8 DMX OPTO BRANCH 8 provides
necessary instructions for the proper use of the product Lighting & Studio - Lighting Accessories - DMX Devices.

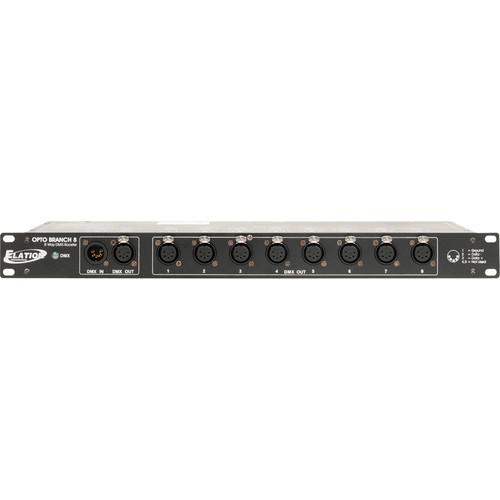

The Opto Branch 8 DMX Distributor/Booster from Elation Professional is a 19" single rack space, 8-way DMX distributor/booster with 5-pin XLR input and output connectors. This unit takes the incoming DMX signal and splits it into eight separate outputs, each providing a total electrical isolation of up to 1000V between different branches. This isolation decreases risks of ground loops. Each output has dedicated drivers to boost the incoming signal. The Opto Branch 8 buffers the DMX signal to improve reliability and ensure uninterrupted data.
|
