User manual Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744

Operating instructions and pdf manual for use - Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744 User manual, User manual Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744, Electro-Voice, FRi-2082, Dual, 8, Two-Way, F.01U.272.744,


User manual for Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744

Electro-Voice FRi-2082 - Dual 8
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
  • Price: 942 USD
We recommend checking out our discussion threads on the Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744, which address similar problems with connecting and setting up PA Speakers Electro-Voice.



User manual for the Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744

The user manual for the Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

The FRi-2082 from Electro-Voice is a two-way ceiling or wall mount speaker for fixed installations, with a 200-watt power handling capacity that is designed for use in larger club, sports, and recreational venues.

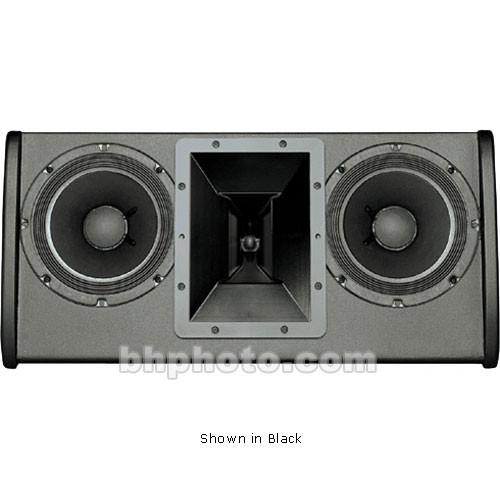

The speaker has a compact, low profile design, and features dual 8" woofers and a 1" horn-loaded titanium compression driver, housed in a reinforced 13-ply plywood cabinet. The speaker comes with a mounting bracket for horizontal or vertical orientation.
If you own a Electro-Voice pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice FRi-2082 - Dual 8Download user manual for Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744
(PDF file, 0.81 MB)
Additional parameters of the Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744:
Active or Passive Passive
Frequency Response 70 Hz to 20 kHz, -3 dB
Frequency Range 45 Hz to 20 kHz, -10 dB
Power Capacity 200 W continuous
800 W peak
Maximum Sound Pressure Level (SPL) 116 dB continuous
122 dB peak
Nominal Sensitivity 93 dB SPL, 1 W/1 m
Nominal Impedance 8 Ω (passive)
Crossover 2.8 kHz
Coverage Pattern 100 x 100º (H x V)
Low Frequency Driver 2 x 8" (203 mm)
High Frequency Driver 1 x 1" (25 mm) titanium compression driver
Enclosure Material 13-ply plywood
Flying hardware included
Not suitable for outdoor use
Input Connections 1 x Barrier strip
Dimensions (WxDxH) 24.4 x 14.0 x 8.8" (222 x 620 x 356 mm)
Weight 40.1 lb (18.2 kg)
The user manual for the Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice pa speakerss, where you can use our link to download the user manual for the Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744.

The user manual lists all of the functions of the Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice FRi-2082 - Dual 8" Two-Way F.01U.272.744. User manuals are also available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
