User manual Electro-Voice PA430T - 30-Watt F.01U.120.450

Operating instructions and pdf manual for use - Electro-Voice PA430T - 30-Watt F.01U.120.450 User manual, User manual Electro-Voice PA430T - 30-Watt F.01U.120.450, Electro-Voice, PA430T, 30-Watt, F.01U.120.450, Video

User manual for Electro-Voice PA430T - 30-Watt F.01U.120.450

Electro-Voice  PA430T - 30-Watt F.01U.120.450
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Speakers
  • Safety instructions
  • Startup and operation of the install speakers
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
  • Price: 120 USD
We recommend checking out our discussion threads on the Electro-Voice PA430T - 30-Watt F.01U.120.450, which address similar problems with connecting and setting up Install Speakers Electro-Voice.

User manual for the Electro-Voice PA430T - 30-Watt F.01U.120.450

The user manual for the Electro-Voice PA430T - 30-Watt F.01U.120.450 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

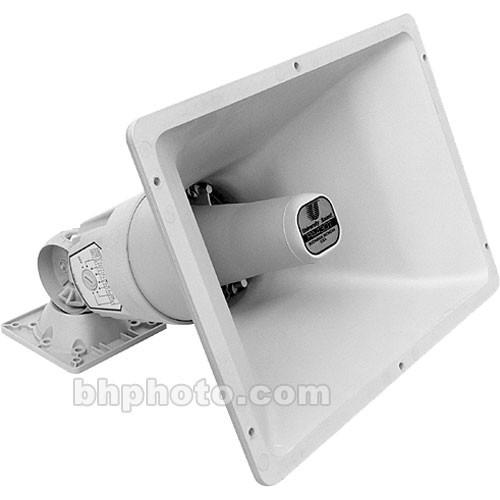

The Electro-Voice PA430T is a 30-watt constant-directivity horn with an all-weather, moisture resistant ASA construction, designed for permanent indoor and outdoor P.A. and paging installations. The unit is equipped with a transformer, with connections for 25V, 70.7V and 100V distributed systems, and a screwdriver-operated power tap select switch.
If you own a Electro-Voice install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice PA430T - 30-Watt F.01U.120.450 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Electro-Voice PA430T - 30-Watt F.01U.120.450:
Frequency Response 400 Hz - 6.5 kHz +/-5dB
Maximum Power Handling 30 Watts
Impedance 8 Ohms
SPL 107dB
Beamwidth -6dB @ 1.0kHz - 10kHz
Horizontal Beamwidth 60° (+20°, -20°)
Vertical Beamwidth 40° (+20°, -10°)
Directivity 15.2 @ 2kHz
Construction High-impact Acrylic-Styrene-Acrylonitrile(ASA), Nylon swivel base and rear housing
Magnet Weight:0.63 lb(0.28 kg)
Material: Strontium Ferrite
Voice Coil 1.5" (38mm)
Dimensions (HxWxD) 8.9 x 12.1 x 12.2" (226 x 307 x 310mm)
Weight 3.0 lb (1.4 kg)
Packaging Info
Package Weight 4.55 lb
Box Dimensions (LxWxH) 16.4 x 12.4 x 9.5"
The user manual for the Electro-Voice PA430T - 30-Watt F.01U.120.450 can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice install speakerss, where you can use our link to download the user manual for the Electro-Voice PA430T - 30-Watt F.01U.120.450.

The user manual lists all of the functions of the Electro-Voice PA430T - 30-Watt F.01U.120.450, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice PA430T - 30-Watt F.01U.120.450. User manuals are also available on the Electro-Voice website under Pro Audio - Installation Sound - Install Speakers.
