User manual Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576

Operating instructions and pdf manual for use - Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576 User manual, User manual Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576, Electro-Voice, ZX1i-90, 2-way, 8, F.01U.265.576,


User manual for Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576

Electro-Voice ZX1i-90 - 2-way 8
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
  • Price: 491 USD

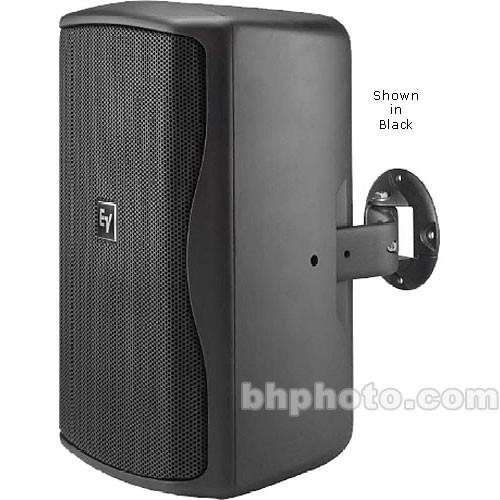

Electro-Voice ZX1i-90 - 2-way 8 Electro-Voice ZX1i-90 - 2-way 8
Click to enlarge image

We recommend checking out our discussion threads on the Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576, which address similar problems with connecting and setting up PA Speakers Electro-Voice.



User manual for the Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576

The user manual for the Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

The Electro-Voice ZX1i-90 is a passive, full-range, 2-way indoor/outdoor installation loudspeaker, with a durable all-weather enclosure and water-resistant steel grille, housing an 8" woofer and a 1" compression driver in a rotatable horn. The speaker features a snap-on surface mount and a coverage pattern suitable for long-throw and cluster install applications.
If you own a Electro-Voice pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice ZX1i-90 - 2-way 8Download user manual for Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576
(PDF file, 2.21 MB)
Additional parameters of the Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576:
Active or Passive Passive
Frequency Response 60 Hz - 20 kHz, -3dB
Power Capacity 200 Watts continuous
400 Watts program
800 Watts peak
Maximum Sound Pressure Level (SPL) 123 dB(90°)
Nominal Sensitivity 94 dB(90°)
Impedance 8 Ohms
Crossover 1.7 kHz
Low Frequency Driver 8"
High Frequency Driver 1"
Enclosure Material Paintable high-impact polymer
Polyester powder-coated galvanized steel grille
Input Connections 1 x 4-pin Phoenix
Dimensions 17.75 x 11.1 x 10.3" (451 x 282 x 263mm)
Weight 18.5 lb (8.4 kg)
Packaging Info
Package Weight 23.5 lb
Box Dimensions (LxWxH) 20.0 x 13.0 x 13.0"
The user manual for the Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice pa speakerss, where you can use our link to download the user manual for the Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576.

The user manual lists all of the functions of the Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice ZX1i-90 - 2-way 8" F.01U.265.576. User manuals are also available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
