User manual Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586

Operating instructions and pdf manual for use - Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586 User manual, User manual Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586, Electro-Voice, ZX3-60W, 12, 2-Way, Passive, F.01U.265.586,


User manual for Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586

Electro-Voice ZX3-60W 12
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
  • Price: 899 USD
We recommend checking out our discussion threads on the Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586, which address similar problems with connecting and setting up PA Speakers Electro-Voice.



User manual for the Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586

The user manual for the Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

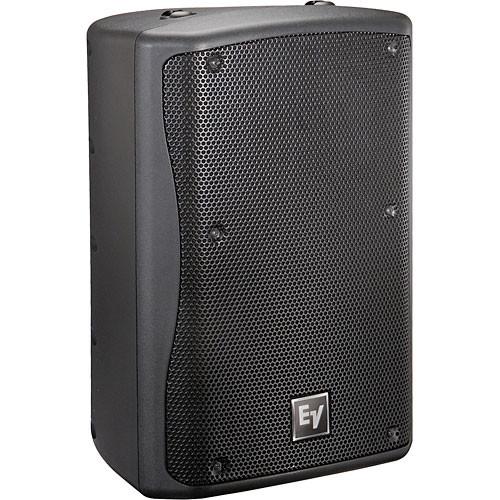

The Electro-Voice ZX3-60W is a 2-way P.A. passive loudspeaker with a 600-watt continuous power handling capacity and a 60x60° coverage angle, for long-throw and cluster applications. The high-tech, high-impact polypropylene enclosure houses a 12" woofer and a 1" Neodymium compression driver with a large 2" voice-coil.
The ZX3-60W cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Anchor Plate attachment points on the bottom of the speaker.
If you own a Electro-Voice pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice ZX3-60W 12Download user manual for Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586
(PDF file, 0.21 MB)
Additional parameters of the Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586:
Active or Passive Passive
Frequency Response -10dB:48-20,000Hz
Power Capacity 600W
Maximum Sound Pressure Level (SPL) 131dB
Nominal Sensitivity 97dB
Impedance 8 ohms
Crossover 2KHz
Low Frequency Driver DVX3121, 12" (305mm) Driver
High Frequency Driver ND2, 1" (25.4mm) exit Neodymium
Enclosure Material Polypropylene Structural Foam
Input Connections Neutrik Speakon NL4's x 2
Mounting Options Enclosure has locations for 4 Single-StudAttachment Plates and 10 Forged SteelEyebolts - 2 on Top, 2 on Bottom, 2 onSide, and 1 on Rear of Enclosure
Dimensions 24.14 x 15.64 x 14.26" (613 x 397 x 362mm)
Weight 43.7 lbs (19.8kg)
Packaging Info
Package Weight 51.4 lb
Box Dimensions (LxWxH) 25.75 x 17.1 x 15.25"
The user manual for the Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice pa speakerss, where you can use our link to download the user manual for the Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586.

The user manual lists all of the functions of the Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice ZX3-60W 12" 2-Way Passive F.01U.265.586. User manuals are also available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
