User manual for the Elektron Analog Rytm - 8-Voice Drum Computer ANALOG RYTM
The user manual for the Elektron Analog Rytm - 8-Voice Drum Computer ANALOG RYTM provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Drum Machines.

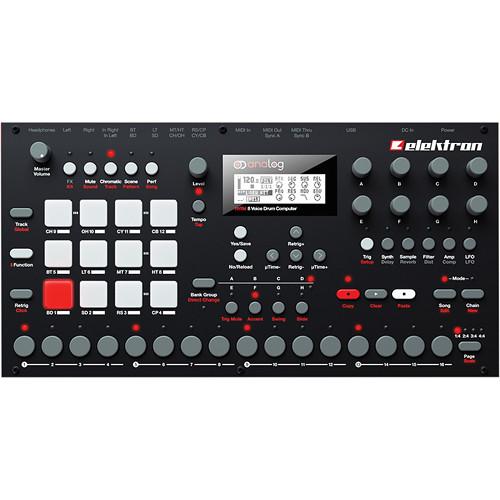

The Analog Rytm from Elektron is an eight-voice drum machine that marries the sounds and sensibilities of analog generated sounds with digital samples. Each voice accesses dedicated analog circuits, fine-tuned for generating specific analog drum sounds. For additional flexibility, each voice can also be combined with customizable samples.
Multiple tools are available for shaping the sound, with every voice having its own analog multimode filter and analog distortion circuit. Reverb and delay send effects add additional shaping possibilities, and an analog compressor and analog distortion on the master channel apply the requisite vibe to the final output.
The twelve back-lit, velocity and pressure-sensitive drum pads provide a quick way of creating rhythms without stifling spontaneity. The built-in step sequencer allows for manipulating sounds on a per-step basis. The combination of drum pads and step sequencing gives both instant results and the opportunity for detailed editing.
Overbridge is a software extension that allows for the use of Elektron's analog hardware as a plug-in within a DAW. Design sounds on-screen using an intuitive and dedicated plug-in, or use the knobs and keys on the Analog instrument, or do both at the same time. Enjoy precise synchronization and automation. Use the strengths of the Elektron sequencer, and the software sequencer to get the best of both worlds. Available now for Ableton Live but future updates will include other platforms.
|
If you own a Elektron drum machines and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Elektron Analog Rytm - 8-Voice Drum Computer ANALOG RYTM in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Elektron Analog Rytm - 8-Voice Drum Computer ANALOG RYTM:
| Sequencer | 12 drum tracks
1 FX track
Up to 64 steps per pattern
Individual track lengths
Trig mute, accent, swing, slide functions
Micro timing
Parameter locks
Chromatic mode
Scene mode
Performance mode
Sound-per-step change
Assignable Retrig
Instant Pattern, Kit and Sound reload
Full real-time control | | Storage | 128 Projects (+Drive)
128 Kits per Project
128 Patterns per Project
16 Songs per Project
4096 Sounds (+Drive Sound Library)
128 Sounds per Project
127 Samples per Project
1 GB +Drive sample storage
127 factory samples | | Effects | Send Effects
Delay
Reverb
Master Effects
Analog stereo distortion
Analog stereo compressor | | Drum Voice Features | Per Voice
Fully analog signal path
1 × Specialized analog percussion sound generator
1 × Sample playback engine
1 × Analog overdrive circuit
1 × 2-pole analog multi-mode filter
1 × Panning VCA pair
1 × Filter envelope
1 × Amp envelope
2 × Individual effect sends
1 × Assignable LFO
1 × Dedicated LFO fade envelope | | Hardware | 12 velocity, pressure sensitive, and backlit pads
122 × 32 pixel backlit LCD
MIDI In/Out/Thru with DIN Sync Out
2 × 1/4" TRS impedance balanced main out jacks
4 × 1/4" TS dual mono separate voice out jacks
1 × 1/4" TRS audio in stereo jack
1 × 1/4" TRS stereo headphone jack
48 kHz, 24-bit D/A and A/D converters
Flash-EEPROM upgradable OS
USB 2.0 port | | Inputs | Unbalanced Audio
Input Level: +15 dBu maximum
Input Impedance: 9 kOhm | | Outputs | Balanced Audio
Headphones Out Level: +15 dBu (55 ohm)
Main Outputs Level: +15 dBu
Output Impedance: 440 ohm unbalanced
Individual Voice Mono
Output Level: +15 dBu
Output Impedance: 440 ohm unbalanced | | Power Requirements | Recommended Power Supply: 12 VDC, >2 A
Unit Power Consumption: 14 W typical, 20 W maximum | | Dimensions (WxDxH) | 13.4 × 6.9 × 2.4" (340 × 176 × 63 mm), including power switch, knobs and rubber feet | | Weight | 5.3 lb (2.4 kg) | | Package Weight | 7.3 lb | | Box Dimensions (LxWxH) | 18.661 x 9.291 x 4.724" | |
The user manual for the Elektron Analog Rytm - 8-Voice Drum Computer ANALOG RYTM can be downloaded in .pdf
format if it did not come with your new drum machines, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Elektron users keep a unique electronic library
for Elektron drum machiness,
where you can use our link to download the user manual for the Elektron Analog Rytm - 8-Voice Drum Computer ANALOG RYTM.
The user manual lists all of the functions of the Elektron Analog Rytm - 8-Voice Drum Computer ANALOG RYTM,
all the basic and advanced features and tells you how to use the drum machines.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Elektron service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Elektron Analog Rytm - 8-Voice Drum Computer ANALOG RYTM. User manuals are also
available on the Elektron website under Pro Audio - Musical Instruments - Drum Machines.
