User manual for the Elektron Machinedrum SPS-1 MKII Drum MACHINEDRUM SPS-1 MKII
The user manual for the Elektron Machinedrum SPS-1 MKII Drum MACHINEDRUM SPS-1 MKII provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Drum Machines.

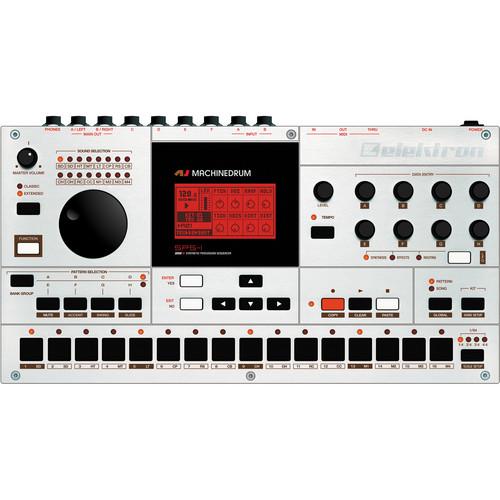

The Elektron Machinedrum SPS-1 MKII is a powerful hardware drum machine, synthesizer and sequencer for producing stunning grooves and drum patterns, and is ideally suited for producers, musicians, DJs, remixers and beat-makers the world over. The integrated Machinedrum employs 4 synthesis methods that include TRX, P-I, EFM and E12 synthesis methods. Each synthesis method is devised to create various tonal, character and style variants such as vintage drum machines, organic percussion textures, acoustic drum feel, and wild effects manipulation.
If you own a Elektron drum machines and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Elektron Machinedrum SPS-1 MKII Drum MACHINEDRUM SPS-1 MKII in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Elektron Machinedrum SPS-1 MKII Drum MACHINEDRUM SPS-1 MKII:
Specifications
Sequencer
16 tracks 128 x 64 step patterns 32 songs 4096 songs (+Drive models only) Supports swing, slide and accent 64 possible parameter locks on each pattern step Full realtime control Full MIDI support 384 MIDI controllable (MIDI CC) parameters
Sound Generation
4 MD Synths 46 individual audio generating machines 5 effects on each track 4 stereo master effects 16 part synthesis 64 kits 8192 kits (+Drive models only)
Main out level: +15dBu Assignable outs level: +10dBu Output impedance: 100 Ω unbalanced S/N ratio: 100dBFS (20Hz - 20kHz)
Audio Inputs
Input level: +7dBu maximum Audio input impedance: 9 k Ω SNR inputs: 98dBFS (20Hz - 20kHz)
Connections
MIDI In/Out/Thru 6x 1/4" impedance balanced audio out jacks 2x 1/4" audio in jacks 1x 1/4" stereo headphone jack
Hardware
128x64 pixel backlit LCD MIDI In/Out/Thru Advanced dual DSP system 44.1kHz, 24-bit D/A and A/D converters Flash-EEPROM upgradable OS
Construction
Sturdy steel chassis
Power Supply
Unit power consumption: 10W typical, 18W maximum Recommended power supply: 6 VDC, 3A PSU-2 Electrical Specs: Input voltage range: 100-240V (43-60Hz) Input connector: IEC320-C8 (2 prong) In-rush current: 50A maximum Output voltage: 5.7-6.3 VDC Output current: 3.5A maximum Output connector: 5.5 x 2.5mm DC plug, power at center.
