User manual for the Elmo P10 Document Camera 1309
The user manual for the Elmo P10 Document Camera 1309 provides
necessary instructions for the proper use of the product A/V Presentation - Video Presenters - Video Presenters & Document Cameras.

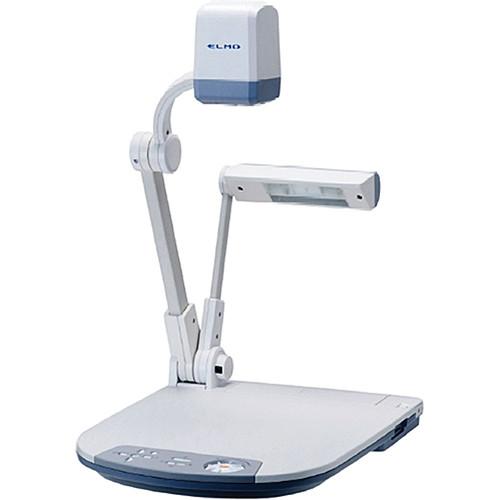

The Elmo P10 Document Camera is a high-performance document camera that enhances the classroom teaching and learning experience. Taking center-stage among the host of features offered by the digital visual presenter is the 1.49 MP CMOS chip, incorporating a 48x high-quality zoom lens that provides vivid clarity and true-color reproduction.
|
If you own a Elmo video presenters & document cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Elmo P10 Document Camera 1309 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Elmo P10 Document Camera 1309:
| Camera | Image pickup device: 1/3" progressive scan CCD
Total pixels: 1,077 (H) x 788 (V), 850,000 pixels
Effective pixels: 1,034 (H) x 779 (V)
Frame rate: 20 fps
Resolution:
- RGB output: 600 (H) x 600 (V) TV lines
- Video output 450 (H) TV lines | | Optics | Zoom Powered (with variable speed function), 12X optical, 4X digital
Lens: F2.8, f=4.7 to 56.4mm
Shooting area:
- Max. 405 x 303mm
- Min. 36.5 x 28mm
Focus: Auto/Manual (powered)
Iris: Auto (with level adjustment)/Manual | | Functions | White balance: Full-auto/One-push/Manual
Negative/positive conversion
Aperture enhancement
Text mode
Edge enhancement
Color/B&W selection
Pause mode
Gamma adjustment
OSD (on-screen display)
Split display (SD Memory Card image, 9-split, 16-split)
Image save (onto SD Memory Card)
Image rotation (0°, 180°)
State presetting: Up to 6 user settings
Sync. system: Internal | | Video Input | RGB x1 (XGA 1024 x 768) | | Video Output | DVI x1
RGB x1
Composite x1 (RCA)
S-Video x1 | | Control Connector | RS-232C | | USB Port | Provided | | Card Slot | SD card slot | | Lighting | Upper lighting unit: twin fluorescent lamp | | Dimensions (WxDxH) | Setup: 14.8 x 19 x 23" (377 x 42 x 582mm)
Folded: 14.8 x 19 x 7.1" (377 x 482 x 180mm) | | Weight | 10.4 lbs (4.7kg) | | Power Source | AC 100 to 240V, 50/60 Hz | | Package Weight | 19.6 lb | | Box Dimensions (LxWxH) | 24.5 x 19.5 x 12.0" | |
