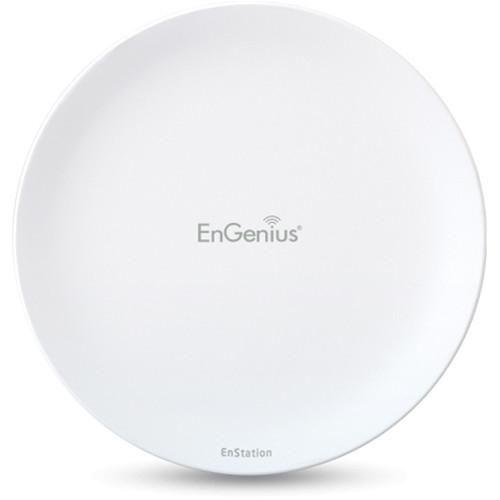

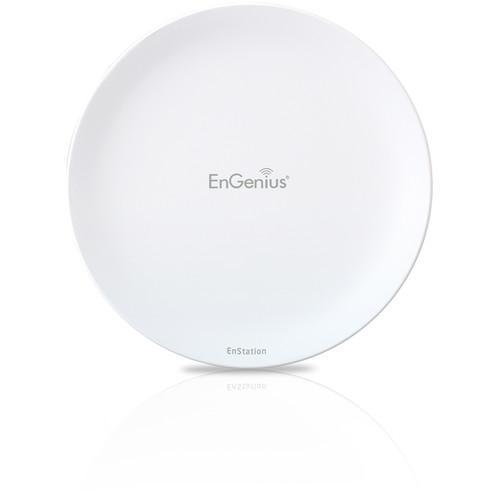

EnGenius EnStation2 Long-Range Wireless 2.4 GHz ENSTATION2
  • Manufacturer: EnGenius
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Routers
  • Safety instructions
  • Startup and operation of the wireless routers
  • Tips for setting up your EnGenius
  • Settings and expert assistance
  • Contact EnGenius service
  • Troubleshooting
  • Warranty information
  • Price: 64 USD
EnGenius EnStation2 Long-Range Wireless 2.4 GHz ENSTATION2 EnGenius EnStation2 Long-Range Wireless 2.4 GHz ENSTATION2 EnGenius EnStation2 Long-Range Wireless 2.4 GHz ENSTATION2 EnGenius EnStation2 Long-Range Wireless 2.4 GHz ENSTATION2
Click to enlarge image

We recommend checking out our discussion threads on the EnGenius EnStation2 Long-Range Wireless 2.4 GHz ENSTATION2, which address similar problems with connecting and setting up Wireless Routers EnGenius.



User manual for the EnGenius EnStation2 Long-Range Wireless 2.4 GHz ENSTATION2

The user manual for the EnGenius EnStation2 Long-Range Wireless 2.4 GHz ENSTATION2 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Routers.

With a data transfer rate of up to 300 Mbps and IP55 rated waterproof housing, the EnStation2 Long-Range Wireless 2.4 GHz Outdoor AP/Bridge from EnGenius makes it easy to transmit your wireless data signal outdoors over long distances.

The internal 13 dBi dual polarization directional high-gain antenna features narrow beam functionality to direct the signal to its intended recipient for a stronger, more reliable signal. The signal emitted from this AP/bridge is IEEE 802.11b/g/n compliant ensuring broad compatibility with nearly any Wi-Fi enable device. Installation has also been simplified as the EnStation2 comes equipped with 24 V proprietary PoE support eliminating the need for a power adapter.
If you own a EnGenius wireless routers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the EnGenius EnStation2 Long-Range Wireless 2.4 GHz ENSTATION2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for EnGenius EnStation2 Long-Range Wireless 2.4 GHz ENSTATION2Download user manual for EnGenius EnStation2 Long-Range Wireless 2.4 GHz ENSTATION2
(PDF file, 3.45 MB)
Additional parameters of the EnGenius EnStation2 Long-Range Wireless 2.4 GHz ENSTATION2:
Specifications
    Hardware
    Frequency Range 2.4 GHz
    Standard IEEE 802.11b/g/n
    Radio 1 11b/g/n: 2.412~2.484 GHz
    Data Rate Up to 300 Mbps in 2.4 GHz
    Memory 128 MB
    Flash Memory 16 MB
    Transmit Power Up to 26 dBm
    Up to 400 mW
    Radio Chains/Spatial Streams - 3x3:3
    Supported Radio Technologies 802.11b: Direct-sequence spread-spectrum (DSSS)
    802.11n: Orthological Frequency-Division Multiplexing (OFDM)
    802.11n: With 5/10/20/40 MHz Channel Width
    Supported Modulation Types 802.11b: BPSK QPSK, CCK
    802.11n: BPSK, QPSK, 16-QAM, 64-QAM
    Supported Data Rates 802.11b: 1, 2, 5.5, 11
    802.11g: 6, 9, 12, 18, 36, 48, 54
    802.11n: 6.5~300 (MCS0 to MCS15)
    Physical Interfaces 2 x 10/100 BASE-T Ethernet ports
    1 x Port supports 24 V proprietary PoE input
    1 x Port supports extension of an Internet signal
    Reset button
    LED signal
    Power
    LAN 1
    LAN 2
    WLAN
    Antenna 1 x Internal high-gain directional antenna
    13 dBi GHz antenna
    Azimuth Beam Width (Horizontal): 18°
    Elevation Beam Width (Vertical): 30°
    Point-to-Point Transmission for Long Range Distances
    2.4 GHz (point 1)
    Peak Antenna Gain: 13 dBi
    Polarization: Linear
    Horizontal Beam Width: 67°
    Elevation Beam-Width: 33°
    VSWR: 1:2.0
    2.4 GHz (point 2)
    Peak Antenna Gain: 13 dBi
    Polarization: Linear
    Horizontal Beam Width: 61°
    Elevation Beam-Width: 35°
    VSWR: 1:2.0
    Power Requirements Power Source (PoE Injector):
    24V/.6A proprietary compliant source
    Active Ethernet (Power over Ethernet, PoE)
    Power Consumption: 7.2 W
    Peak Power Consumption: Up to 34 W
    Management
    Auto Channel Selection Settings varies by regulatory domains
    Operation Modes Access Point, Client Bridge, WDS Bridge
    LAN IP (check validity and DHCP server IP range) MAC
    SSID BSSID
    Supports four SSIDs
    IEEE 802.1Q VLAN Tagging Independent VLAN settings cab be enabled/disabled
    Any packet that enters the device without a VLAN tag will have a VLAN tag inserted via a PVID (Ethernet Port VID)
    VLAN Pass-through
    VLAN Pass-through over WDS Bridge
    SNMP V1/v2c/v3 support
    MIB MIB I/II and Private MIB
    QoS Compliant with IEEE 802.11e standard
    Other Management Save Configurations as default
    Saves the customized configuration as the default value for different customer demands
    Client Traffic Status
    Reports various information in a timely manner as required by the administrator
    Control Features RADIUS Accounting
    Helps operators to offload 3G to Wi-Fi seamlessly
    Settings vary by Regulatory Domains
    Distance Control (Ack Timeout)
    Multicast Supported
    Wi-Fi Scheduler
    Sets the Schedule for rebooting the device
    Security WEP Encryption: 64/128/152 bit
    WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
    Hide SSID in Beacons
    MAC Address Filtering
    Filter up to 50 MAC addresses
    Wireless STA (Client) Connection List
    Reports various information in a timely manner as required by the administrator
    802.1x Authenticator
    Environmental & Mechanical
    Operating Temperature -4 to 140°F / -20 to 60°C
    Storage Temperature -22 to 176°F / -30 to 80°C
    Operating Humidity 90% or less (non-condensing)
    Storage Humidity 90% or less (non-condensing)
    Waterproof IP55-rated enclosure
    Certifications FCC, CE
    Dimensions & Weight
    Dimensions Not specified by manufacturer
    Weight Not specified by manufacturer
    Packaging Info
    Package Weight 2.4 lb
    Box Dimensions (LxWxH) 12.6 x 10.0 x 3.4"
