User manual Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F

Operating instructions and pdf manual for use - Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F User manual, User manual Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F, Ensemble, Designs, BrightEye, 90-F, HD, Converter, w


User manual for Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F

Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F
  • Manufacturer: Ensemble Designs
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Signal Converters
  • Safety instructions
  • Startup and operation of the signal converters
  • Tips for setting up your Ensemble Designs
  • Settings and expert assistance
  • Contact Ensemble Designs service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F, which address similar problems with connecting and setting up Signal Converters Ensemble Designs.



User manual for the Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F

The user manual for the Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Signal Converters.

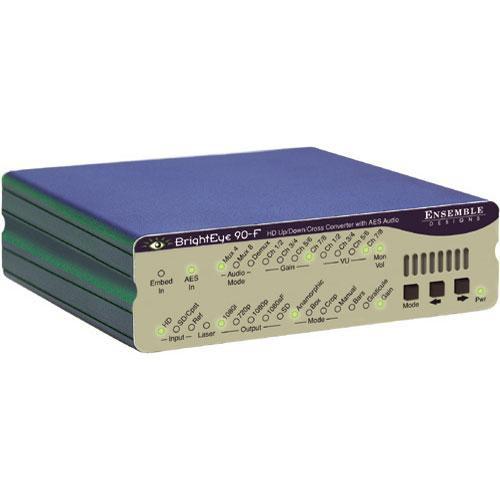

The BrightEye 90-F HD Up-, Down-, Cross- & ARC-Converter with AES Audio and Optical Output from Ensemble Designs is a converter that can be used to up-convert, down-convert, or cross-convert analog and digital video signals. The unit can also perform aspect-ratio conversion. A built in frame synchronizer allows you to input asynchronous signals, and an external reference input allows for genlock to a house reference. The unit will faithfully pass all vertical interval data and closed captioning information. This model features an optical output, which allows for transmission distances up to 12.42 miles.

This unit also handles embedded audio and discreet AES digital audio streams. It will support up to (16) channels of embedded audio, safely bypassing it around video processing. Two of the four embedded audio groups are available for mixing. The AES input-output ports can be configured for (8) channels of incoming or outgoing audio. The mixer can also be used with AES channels.

The front panel interface offers control of input selection, gain control, and test patterns, among other parameters. The unit can also be controlled through the BrightEye software package that is included with the unit and compatible with both Windows and Mac platforms. LEDs on the front panel provide a visual indicator of channel status.
If you own a Ensemble Designs signal converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F:
Construction Metal, plastic
Finish Blue, silver
Inputs ANALOG VIDEO INPUT
Quantity: x1
Type: analog composite PAL or NTSC
Resolution: digitized at 12 bits
Impedance: 75ÿ©
Return loss: >40dB
Input DC: +/-1VDC
Input hum: <100mV

SERIAL DIGITAL INPUT
Quantity: x1
Signal type:
270Mbs SD serial digital (SMPTE 259M)
1.485Gbs HD serial digital (SMPTE 274M or 296M)
Impedance: 75ÿ©
Return loss: >15dB
Maximum cable length:
984 ft (300m) for 270 Mbs
328 ft (100m) for 1.485 Gbs

REFERENCE INPUT
Quantity: x1
Type:
1Vp-p composite video
PAL or NTSC
Tri-level sync
Impedance: 75ÿ©
Return loss: >40dB

AES/EBU DIGITAL INPUTS
Quantity: x4 (total of eight channels, selectable as inputs or outputs)
Type: AES3id
Connector: coaxial, 75ÿ©
Bit depth: 20 and 24 bit
Sample rate: 30KHz to 96KHz (sample rate converted internally to 48KHz)
Reference level: -18 or -20dBFS (selectable)

Outputs ANALOG VIDEO OUTPUT
Quantity: x1
Type: Composite PAL or NTSC
Return loss: >40 dB
Output DC: <100mV

SERIAL DIGITAL OUTPUT
Quantity: x2
Type:
HD serial digital 1.485 Gbs (SMPTE 274M or 296M)
SD serial digital 270Mbs (SMPTE 259M-C)
Processing: 12 and 16 bit
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
328 ft (100m) for HD
984 ft (300m) for SD
(Belden 1694A or equiv.)
HD standards supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98,24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz

AES/EBU DIGITAL VIDEO OUTPUT
Quantity: x4 (total of eight channels, selectable as inputs or outputs)
Type: AES3id
Connectors: coaxial, 75Ω
Bit depth: 24 bit
Sample rate:
48KHz
Synchronous to video output
Reference level: -18 or -20dBFS (selectable)

OPTICAL OUTPUT
Quantity: x1
Type:
SD (SMPTE 297M, optical equivalent of 259M)
HD (SMPTE 274M or 296M)
Wavelength: 1310nm
Power: -7dBm
Maximum cable length: 12.42 miles (20km)
Fiber type:
Single-mode
Multi-mode compatible with 8 dB attenuation at transmit end
Connector: SC

MONITOR OUTPUT
Quantity: x1
Connector: HDMI

AUDIO MONITORING OUTPUT
Quantity: x1  (select from eight channels)

Power 12V, 7W

*100 to 230VAC modular power supply not included
Dimensions (HxWxD) 1.7 x 5.625 x 5.5" (40 x 143 x 140mm) including connectors
Weight Not specified by manufacturer
The user manual for the Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F can be downloaded in .pdf format if it did not come with your new signal converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ensemble Designs users keep a unique electronic library for Ensemble Designs signal converterss, where you can use our link to download the user manual for the Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F.

The user manual lists all of the functions of the Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F, all the basic and advanced features and tells you how to use the signal converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ensemble Designs service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ensemble Designs BrightEye 90-F HD Converter with AES BE90-F. User manuals are also available on the Ensemble Designs website under Professional Video - Signal Processing & Distribution - Signal Converters.
