User manual for the Epson PowerLite 935W 3700 Lumen WXGA 3LCD Projector V11H565020
The user manual for the Epson PowerLite 935W 3700 Lumen WXGA 3LCD Projector V11H565020 provides
necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

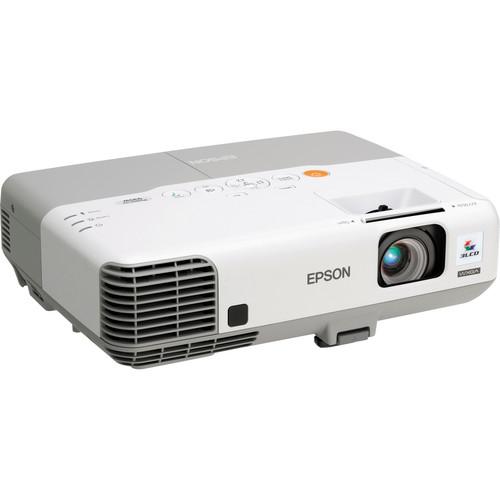

Brighten up your classroom presentations with the Epson PowerLite 935W 3700-Lumen WXGA 3LCD Projector. Its brightness of 3700 lumens makes images visible in most ambient light, while its 1280 x 800 native resolution and 2000:1 contrast ratio helps make those images clear and distinct. Its 1.38 to 2.24:1 throw ratio allows you to place the projector in the back of the room and out of the way while you're presenting.
The PowerLite 935W will connect to most devices with its HDMI, composite video, and two VGA inputs. If you plan on using multiple projectors, the 935W has a VGA output to daisy-chain the signal. Also featured is an analog audio input and output with a built-in 16W mono speaker. It is controllable via Ethernet, RS-232, or the included IR remote.
|
If you own a Epson multimedia projectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Epson PowerLite 935W 3700 Lumen WXGA 3LCD Projector V11H565020 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Epson PowerLite 935W 3700 Lumen WXGA 3LCD Projector V11H565020:
| Display System | 3-Chip LCD | | Native Resolution | WXGA - 1280 x 800 | | Supported Resolutions | Minimum: VGA - 640 x 480
Maximum: WXGA 60-1 - 1680 x 1050 | | Supported Formats | Photo: BMP, GIF, JPEG, PNG | | Format | NTSC
PAL
SECAM | | Pixels | 1,024,000 | | Brightness | 3700 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 2000:1 | | Supported 3D Formats | None | | Color Range | 16.77 Million | | Focus | Manual | | Lens | F 1.51 - 1.99 (f = 18.2 - 29.2 mm) | | Zoom | Manual: 1-1.6x | | Throw Ratio | 1.38 - 2.24:1 | | Projection Size | 29 - 280" / 73.66 - 711.20 cm (Max Diagonal: 280" / 711.20 cm) | | Keystone Correction | Auto: Yes, Vertical: ± 30°
Auto: Yes, Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-in Speaker | Yes, 16 W (Mono) | | Closed Captioning | Yes | | Inputs/Outputs | 2x 1/8" (3.5 mm) Mini Audio (Input)
1x RCA Composite Video (Input)
1x RCA Stereo (L/R) Audio (Input)
1x USB Control (Input)
1x USB Audio/Video (Input/Output)
1x HDMI Audio/Video (Input)
1x Ethernet LAN (Input)
1x RS-232C Control (Input)
2x 15-pin VGA Video (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x 1/8" (3.5 mm) Mini Microphone (Input)
1x 15-pin VGA Video (Output) | | Lamp (Bulb) | 1x UHE | | Replacement Lamp | V13H010L64 | | Watts | 275 W | | Life | Eco Mode: 4000 Hours
Normal Mode: 3000 Hours | | Fan Noise | Normal Mode: 39 dB
Eco Mode: 35 dB | | Remote Control | Yes | | Security | Cable Lock Slot
Padlock
Password Protection | | Languages | Not Specified By Manufacturer | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | Normal Mode: 403 W
Standby Mode: .3 W | | Altitude | 0 - 7500' (0 - 2286 m) | | Temperature | Operating
41 to 95°F (5 to 35°C)
Humidity: 20 - 80%
Storage
14 to 140°F (-10 to 60°C)
Humidity: 10 - 90% | | Dimensions (WxHxD) | 13.6 x 4.2 x 10.3" / 345.4 x 106.7 x 261.6 mm Including feet
13.6 x 3.7 x 10.3" / 345.4 x 94.0 x 261.6 mm Excluding feet | | Weight | 7.5 lb / 3.40 kg | | Package Weight | 11.7 lb | | Box Dimensions (LxWxH) | 19.0 x 14.1 x 6.9" | |
The user manual for the Epson PowerLite 935W 3700 Lumen WXGA 3LCD Projector V11H565020 can be downloaded in .pdf
format if it did not come with your new multimedia projectors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Epson users keep a unique electronic library
for Epson multimedia projectorss,
where you can use our link to download the user manual for the Epson PowerLite 935W 3700 Lumen WXGA 3LCD Projector V11H565020.
The user manual lists all of the functions of the Epson PowerLite 935W 3700 Lumen WXGA 3LCD Projector V11H565020,
all the basic and advanced features and tells you how to use the multimedia projectors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Epson service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Epson PowerLite 935W 3700 Lumen WXGA 3LCD Projector V11H565020. User manuals are also
available on the Epson website under A/V Presentation - Projectors - Multimedia Projectors.
