User manual Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120

Operating instructions and pdf manual for use - Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120 User manual, User manual Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120, Epson, PowerLite, Home, Cinema, 5025UB, 3LCD, Projec

User manual for Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

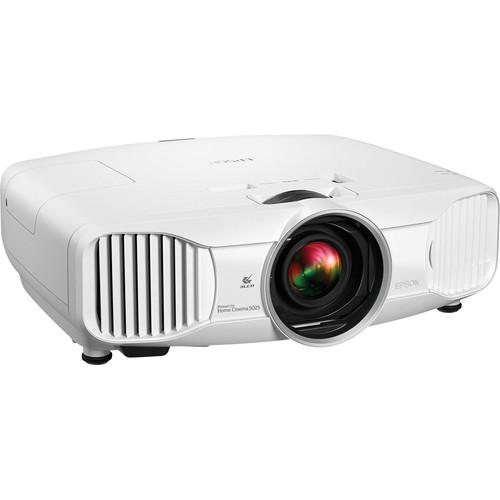

Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120
  • Manufacturer: Epson
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Home Theater Projectors
  • Safety instructions
  • Startup and operation of the home theater projectors
  • Tips for setting up your Epson
  • Settings and expert assistance
  • Contact Epson service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120, which address similar problems with connecting and setting up Home Theater Projectors Epson.


User manual for the Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120

The user manual for the Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Home Theater Projectors.

Get the big screen experience outside of a movie theater with the Epson PowerLite Home Cinema 5025UB 3LCD Projector. This projector features a native Full HD (1080p) resolution and shows 3D as well as 2D content - even offering to upconvert 2D material to 3D. With a brightness of 2200 lumens, the 5025UB is ideally suited for settings with low or no ambient light and is optimized for projection distances of up to 300". With 2.1x optical zoom, a 1.34 to 2.87:1 throw ratio, and vertical and horizontal lens shift, the projector provides the installer flexibility when deciding where to place it.

Diverse connectivity helps ensure you will find the input you need. For connection to HDTV devices, computers with digital outputs, and 3D sources, there are two HDMI inputs. For legacy analog equipment there is one component and one composite input. Finally, for computers with analog outputs and integration with existing AV systems, there is a VGA port.

The projector includes and IR remote. Receivers are placed both on the back and the front of the projector help ensure you will have a clean line-of-sight regardless of where the projector is placed. In addition to local operation, an RS-232C port enables connection to automation systems such as Crestron. A 12V low voltage control (LVC) port allows the projector to trigger a motorized screen to raise or lower automatically when the projector is turned on or off.
If you own a Epson home theater projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120Download user manual for Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120
(PDF file, 1.58 MB)
Additional parameters of the Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120:
Specifications
    Display System Type: 0.74" 3-chip LCD with MLA
    Design: Poly-silicon TFT Active Matrix
    Native Resolution 1920 x 1080 (2,073,600 dots)
    Supported Resolutions 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
    Standards NTSC, NTSC4.43, PAL, M-PAL, N-PAL, PAL60, SECAM
    3D Support 3D content displayed at 240 to 480 Hz
    Brightness Color Brightness: 2200 lumens
    White Brightness: 2200 lumens
    Aspect Ratio Native: 16:9
    Supported: 4:3
    Contrast Ratio Dynamic: Up to 600,000:1
    Color Range Up to 1.07 billion colors
    Color Processing Full 10-bit (partial 12-bit)
    Lens
    Focal Length F=22.5 to 47.2 mm
    Aperture f=2.3 to 3.6
    Focus Control Method: Manual
    Zoom 1.0 to 2.1:1
    Throw Ratio 1.34 to 2.87:1
    Projection Distance 30 to 300" / 76.2 to 762 cm
    Lens Shift (Offset) Vertical: ±96.3%
    Horizontal: ±47.1%
    Lens Cover Powered, slide lens shutter
    Features
    Keystone Correction Vertical: ±30 degrees
    Adjustment Method: Manual
    Projection Method Front
    Rear
    Ceiling
    Security Security lock port
    Display Modes 2D: Dynamic, Living room, Natural, THX, Cinema, B&W cinema
    3D: Dynamic, Cinema, THX

    Cinema Filter: Automatically adjusts to color mode (ON: Natural/THX/Cinema/B&W Cinema; OFF: Dynamic/Living Room/3D Dynamic/3D Cinema/3D THX)
    Auto Iris Automatically adjusts brightness based on video source; OFF/ON: High-Speed or Normal, 2D and 3D mode
    Remote Receiver Locations Front and rear
    Connectivity
    Inputs 2 x HDMI
    1 x Composite on RCA
    1 x Component on 3 x RCA
    1 x VGA

    Note: HDMI supports TMDS

    Control 1 x RS-232C on 9-pin D-sub male
    Low Voltage Control 1 x 12 VDC (200mA) trigger output on 3.5mm female
    Lamp
    Type UHE
    Wattage 230 W
    Lamp Life Normal Mode: Up to 4000 hours
    ECO Mode: Up to 5000 hours
    Remote Control
    Operating Angle With Front Receiver:
    Right/Left: ± 30°
    Upper/Lower: ± 30°

    With Rear Receiver:
    Right/Left: ± 30°
    Upper/Lower: +10 to +70°
    Operating Distance 32'/ 10 m
    General
    Fan Noise 22 to 32 dB
    Power Requirements 100 to 240 VAC ±10%, 50/60 Hz
    Power Consumption Normal Mode: 350 W
    Eco Mode: 280 W
    Operating Temperature 41 to 95°F / 5 to 35°C
    Dimensions With Feet: 18.3 x 15.5 x 6.2" / 46.6 x 39.4 x 15.7 cm
    Without Feet: 18.3 x 15.6 x 5.5" / 46.6 x 39.6 x 14 cm
    Weight 18.4 lb / 8.3 kg
    Packaging Info
    Package Weight 25.4 lb
    Box Dimensions (LxWxH) 26.0 x 20.0 x 13.0"
    The user manual for the Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120 can be downloaded in .pdf format if it did not come with your new home theater projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Epson users keep a unique electronic library for Epson home theater projectorss, where you can use our link to download the user manual for the Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120.

    The user manual lists all of the functions of the Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120, all the basic and advanced features and tells you how to use the home theater projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Epson service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Epson PowerLite Home Cinema 5025UB 3LCD Projector V11H585120. User manuals are also available on the Epson website under A/V Presentation - Projectors - Home Theater Projectors.
