User manual Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020

Operating instructions and pdf manual for use - Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020 User manual, User manual Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020, Epson, PowerLite, W16, 3D, WXGA, 3LCD, Multi-Region, V11H493


User manual for Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

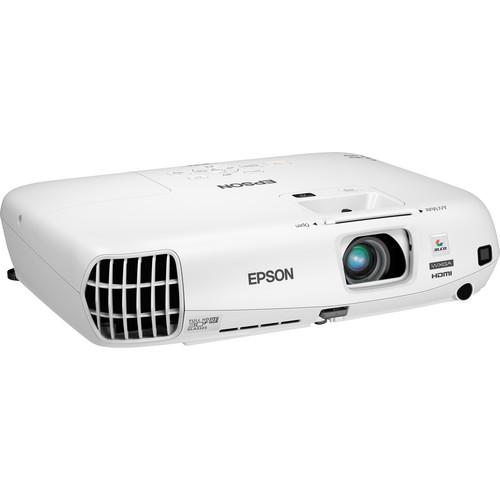

Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020
  • Manufacturer: Epson
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Epson
  • Settings and expert assistance
  • Contact Epson service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020, which address similar problems with connecting and setting up Multimedia Projectors Epson.



User manual for the Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020

The user manual for the Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The Epson PowerLite W16 3D WXGA 3LCD Multi-Region Projector delivers 3000 lumens of white brightness and 3000 lumens of color brightness with a low noise level of only 29 dB using the Eco operating mode. It supports multiple 3D formats via HDMI connectivity and a 3000:1 active 3D contrast ratio or 5000:1 2D contrast ratio. The projector features WXGA 1280 x 800 native resolution with support for resolutions up to WSXGA+ 60 (1680 x 1050) as well. It's also equipped with a 3LCD, 3-chip RGB liquid crystal shutter projection system and a 200W E-TORL lamp that provides up to 5000 hours of life.
If you own a Epson multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020Download user manual for Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020
(PDF file, 2.51 MB)
Additional parameters of the Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020:
Specifications
    Image Display
    Display System 3-Chip RGB Liquid Crystal Shutter Projection System LCD
    Polysilicon TFT LCD
    Native Resolution PC: WXGA - 1280 x 800
    Mac: WXGA - 1280 x 800
    Supported Resolutions VGA - 640 x 480
    SVGA - 800 x 600
    XGA - 1024 x 768
    SXGA - 1152 x 864
    SXGA2 - 1280 x 960
    SXGA3 - 1280 x 1024
    WXGA 60-2 - 1360 x 768
    WXGA+ - 1440 x 900
    SXGA+ - 1400 x 1050
    WXGA++ - 1600 x 900
    UXGA - 1600 x 1200
    WSXGA+ 60 - 1680 x 1050
    Format NTSC 4.43
    PAL 60, M, N
    SECAM
    HDTV Compatibility 1920 x 1080p
    Pixels 3,072,000
    Brightness 3000 Lumens
    Aspect Ratio Native: 16:10
    Contrast Ratio 2D — 5000:1
    3D — 3000:1
    DLP Link 3D Yes
    Color Range 16.77 Million
    Lens
    Lens F 1.58 - 1.72 (f = 16.9 - 20.3 mm)
    Zoom 1.0-1.2x
    Throw Ratio 1.30 - 1.56:1
    Projection Size 33 - 318" / 83.82 - 807.72 cm
    Features
    Keystone Correction Auto: Vertical: ± 30°
    Auto: Horizontal: ± 20°
    Picture-in-Picture Yes
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-in Speaker 2 W (Mono)
    Input/Output Connectors
    Inputs/Outputs 2x 15-pin VGA Video (Input)
    1x HDMI Video (Input)
    1x S-Video Video (Input)
    1x RCA Composite Video (Input)
    1x RCA Stereo (L/R) Audio (Input)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    1x 15-pin VGA Video (Output)
    1x USB Type-A Female
    1x USB Type-B Female
    1x RS-232C Control
    General
    Lamp (Bulb) 1x E-TORL
    Watts 200 W
    Life Eco Mode: 5000 Hours
    Normal Mode: 4000 Hours
    Fan Noise Eco Mode: 29 dB
    Normal Mode: 36 dB
    Remote Control Yes
    Security Cable Lock Slot
    Padlock
    Password Protection
    Power Requirements 100-240 VAC, 50/60 Hz
    Power Consumption Eco Mode: 237 W
    Normal Mode: 289 W
    Communication on Mode: 3.2 W
    Communication off Mode: .36 W
    Temperature Operating
    41 to 95°F (5 to 35°C)
    Dimensions (WxHxD) 12.8 x 3.1 x 9.6" / 32.5 x 7.9 x 24.4 cm including feet
    12.8 x 3.0 x 9.6" / 32.5 x 7.6 x 24.4 cm excluding feet
    Weight 6 lb / 2.72 kg
    Packaging Info
    Package Weight 11.15 lb
    Box Dimensions (LxWxH) 15.7 x 12.9 x 9.7"
    The user manual for the Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Epson users keep a unique electronic library for Epson multimedia projectorss, where you can use our link to download the user manual for the Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020.

    The user manual lists all of the functions of the Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Epson service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Epson PowerLite W16 3D WXGA 3LCD Multi-Region V11H493020. User manuals are also available on the Epson website under A/V Presentation - Projectors - Multimedia Projectors.
