User manual for Epson SureColor P9000 Standard Edition 44" SCP9000SE
- Manufacturer: Epson
- Basic description and contents of package
- Product classification: Computers & Solutions - Printers & Accessories - Large Format Printers
- Safety instructions
- Startup and operation of the large format printers
- Tips for setting up your Epson
- Settings and expert assistance
- Contact Epson service
- Troubleshooting
- Warranty information
Click to enlarge image
|
We recommend checking out our discussion threads on the Epson SureColor P9000 Standard Edition 44" SCP9000SE,
which address similar problems with connecting and setting up Large Format Printers Epson.
|
User manual for the Epson SureColor P9000 Standard Edition 44" SCP9000SE
The user manual for the Epson SureColor P9000 Standard Edition 44" SCP9000SE provides
necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Large Format Printers.

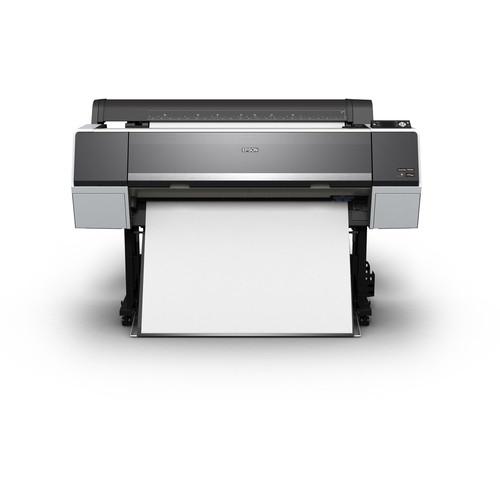

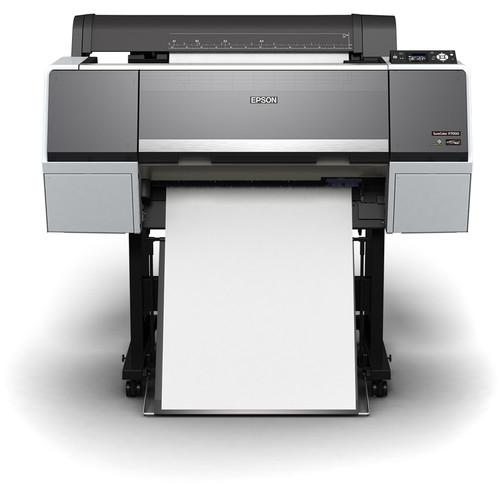

Realize the full-potential of Epson's large-format lineup with the Standard Edition of the SureColor P9000 44" Inkjet Printer. This unit incorporates the latest PrecisionCore TFP Print Head and PrecisionDot Screening Technology along with an eleven-color UltraChrome HDX pigment-based ink set with auto-switching black ink technology to produce vivid, brilliant images at a finely detailed resolution of 2880 x 1440 dpi. Also, the Standard Edition utilizes a Light Light Black ink that allows for finer and smoother gradations between the light and dark areas of the print.
This model can handle both cut-sheet and roll media up to 44" wide and can produce large, panoramic prints up to 529" in length. The P9000 is also capable of working quickly, producing a 16 x 20" print as fast as 2 minutes 2 seconds. PrecisionDot Screening technology furthers the printer's quality by using advanced math to calculate dot size and placement using a variable-sized droplet system. Also, users can manually program print head cleanings to ensure optimal performance at all times.
Operation is simple with a top-loading feed for both rolls and cut-sheet media. There is also a built-in rotary cutter for automatically cutting prints from rolls and the front control panel has a 2.7" color LCD screen for checking print status and settings. Additionally, it has both USB 2.0 and Ethernet connectivity for setting up the unit as you need it.
|
If you own a Epson large format printers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Epson SureColor P9000 Standard Edition 44" SCP9000SE in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Epson SureColor P9000 Standard Edition 44" SCP9000SE:
| Printing Technology | 10-channel, drop-on-demand, inkjet PrecisionCore TFP Print Head | | Maximum Resolution | 2880 x 1440 dpi | | Print Speed | 16 x 20" / 40.6 x 50.8 cm Print: 2:02 to 6:58 (production is 4:16)
20 x 30" / 50.8 x 76.2 cm Print: 3:40 to 12:25 (production is 7:36)
40 x 60" / 101.6 x 152.4 cm Print: 11:15 to 40:05 (production is 24:20) | | Minimum Ink Droplet Size | Enhanced Variable Droplet Technology as small as 3.5 pl | | Ink Type | UltraChrome HDX pigment inks | | Ink Cartridge Configuration | 11 individual cartridges | | Ink Color | C, LC, VM, VLM, Y, LK, LLK, O, G, PK/MK | | Compatible Ink Cartridges | T834100 UltraChrome HD Photo Black Ink Cartridge (150 ml)
T834200 UltraChrome HD Cyan Ink Cartridge (150 ml)
T834300 UltraChrome HD Vivid Magenta Ink Cartridge (150 ml)
T834400 UltraChrome HD Yellow Ink Cartridge (150 ml)
T834500 UltraChrome HD Light Cyan Ink Cartridge (150 ml)
T834600 UltraChrome HD Vivid Light Magenta Ink Cartridge (150 ml)
T834700 UltraChrome HD Light Black Ink Cartridge (150 ml)
T834800 UltraChrome HD Matte Black Ink Cartridge (150 ml)
T834A00 UltraChrome HDX Orange Ink Cartridge (150 ml)
T834B00 UltraChrome HDX Green Ink Cartridge (150 ml)
T834900 UltraChrome HD Light Light Black Ink Cartridge (150 ml)
T824100 UltraChrome HD Photo Black Ink Cartridge (350 ml)
T824200 UltraChrome HD Cyan Ink Cartridge (350 ml)
T824300 UltraChrome HD Vivid Magenta Ink Cartridge (350 ml)
T824400 UltraChrome HD Yellow Ink Cartridge (350 ml)
T824500 UltraChrome HD Light Cyan Ink Cartridge (350 ml)
T824600 UltraChrome HD Vivid Light Magenta Ink Cartridge (350 ml)
T824700 UltraChrome HD Light Black Ink Cartridge (350 ml)
T824800 UltraChrome HD Matte Black Ink Cartridge (350 ml)
T824A00 UltraChrome HDX Orange Ink Cartridge (350 ml)
T824B00 UltraChrome HDX Green Ink Cartridge (350 ml)
T824900 UltraChrome HD Light Light Black Ink Cartridge (350 ml)
T804100 UltraChrome HD Photo Black Ink Cartridge (700 ml)
T804200 UltraChrome HD Cyan Ink Cartridge (700 ml)
T804300 UltraChrome HD Vivid Magenta Ink Cartridge (700 ml)
T804400 UltraChrome HD Yellow Ink Cartridge (700 ml)
T804500 UltraChrome HD Light Cyan Ink Cartridge (700 ml)
T804600 UltraChrome HD Vivid Light Magenta Ink Cartridge (700 ml)
T804700 UltraChrome HD Light Black Ink Cartridge (700 ml)
T804800 UltraChrome HD Matte Black Ink Cartridge (700 ml)
T804A00 UltraChrome HDX Orange Ink Cartridge (700 ml)
T804B00 UltraChrome HDX Green Ink Cartridge (700 ml)
T804900 UltraChrome HD Light Light Black Ink Cartridge (700 ml) | | Number of Nozzles | 360 nozzles x 10 | | Automatic Black Ink Switching | Matte to Photo Black: 2 min 55 sec, 7.2 ml
Photo to Matte Black: 2 min 7 sec, 1.12 ml | | Paper Handling | Top-loading feeder
Built-in rotary cutter
Media bin | | Paper Sizes | Minimum Cut-Sheet Size: 8.5 x 11" / 21.6 x 27.9 cm
Maximum Paper Width: 44" / 111.8 cm
Maximum Roll Size: Up to 44 x 529" / 111.8 x 1343.7 cm | | Borderless Printing Width | 10" / 25.4 cm, 11.8" / 30 cm , 13" / 33 cm, 16" / 40.6 cm, 17" / 43.2 cm, 20.3" / 51.6 cm, 23" / 58.4 cm, 24" / 61 cm, 33" / 83.8 cm, 36" / 91.4 cm, 44" / 111.8 cm | | Line Accuracy | ±0.2% or specified length | | Media Thickness | 31.5-59.1 mil / 0.8-1.5 mm | | Print Archival Life | Color: Up to 200 years
Black & White: Up to 400 years | | Interfaces | USB 2.0
1000Base-T Ethernet | | OS Compatibility | Windows 10, 8.1, 7 (32/64-bit)
Mac OS X 10.7-10.10 | | Printer Language | Epson ESC/P raster photographic drivers standard | | Control Panel | Front panel with 2.7" / 6.9 cm color LCD screen | | Power Requirements | 100-240 VAC, 50-60 Hz, <2 A | | Power Consumption | Printing: 75 W
Ready: 19 W
Sleep: 2 W
Power Off: <0.5 W | | Certifications | ENERGY STAR compliant | | Acoustic Noise | 47 dB(A) | | Operation Conditions | Temperature: 50 to 95°F / 10 to 35°C
Humidity: 20 to 80%, non-condensing
Recommended Temperature: 65 to 75°F / 18 to 24°C
Recommended Humidity: 40 to 60%, non-condensing | | Storage Conditions | Temperature: -4 to 104°F / -20 to 40°C
Humidity: 5 to 85%, non-condensing | | Dimensions | 74 x 48 x 26" / 188 x 122 x 66 cm | | Weight | 298 lb / 135 kg | |
The user manual for the Epson SureColor P9000 Standard Edition 44" SCP9000SE can be downloaded in .pdf
format if it did not come with your new large format printers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Epson users keep a unique electronic library
for Epson large format printerss,
where you can use our link to download the user manual for the Epson SureColor P9000 Standard Edition 44" SCP9000SE.
The user manual lists all of the functions of the Epson SureColor P9000 Standard Edition 44" SCP9000SE,
all the basic and advanced features and tells you how to use the large format printers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Epson service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Epson SureColor P9000 Standard Edition 44" SCP9000SE. User manuals are also
available on the Epson website under Computers & Solutions - Printers & Accessories - Large Format Printers.
