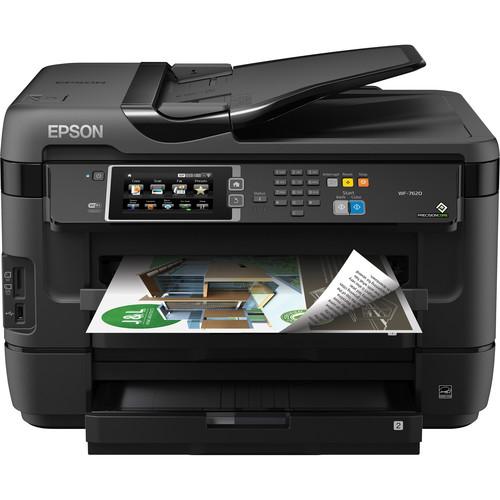

Epson WorkForce WF-7620 Wireless Color All-in-One C11CC97201
  • Manufacturer: Epson
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Inkjet Printers
  • Safety instructions
  • Startup and operation of the inkjet printers
  • Tips for setting up your Epson
  • Settings and expert assistance
  • Contact Epson service
  • Troubleshooting
  • Warranty information
  • Price: 200 USD
We recommend checking out our discussion threads on the Epson WorkForce WF-7620 Wireless Color All-in-One C11CC97201, which address similar problems with connecting and setting up Inkjet Printers Epson.



User manual for the Epson WorkForce WF-7620 Wireless Color All-in-One C11CC97201

The user manual for the Epson WorkForce WF-7620 Wireless Color All-in-One C11CC97201 provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Inkjet Printers.

The Epson WF-7620 Wireless Color All-in-One Printer is a fast office printer capable of printing in monochrome at speeds up to 18 pages per minute in addition to an automatic duplex printing capability. This is possible due to the PrecisionCore Print Head that allows for print resolutions of 4,800 x 2,400 dpi and droplets as small as 2.8 pl. It also has functionality for scanning, faxing, and copying, making it useful in a work environment.

Scanning can be done at an optical resolution of 1,200 x 2,400 dpi, meaning you will be able to get detailed scans from your documents and images. Also, additional features and settings for scanning, faxing, and copying are available on a large 4.3" color LCD touchscreen on the front panel. This helps quickly and easily set the printer up as needed.

Paper is handled in two ways, either through the 35-sheet automatic document feeder for certain jobs and paper types or the two 250-sheet front-loading trays that will hold most general purpose paper types. It can even handle sheets up to 13 x 19" in size for wide-format needs. This system is durable, being capable of handling 20,000 pages per month. Additionally, the WF-7620 features both Wi-Fi and Ethernet connectivity for multiple networking options.
If you own a Epson inkjet printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Epson WorkForce WF-7620 Wireless Color All-in-One C11CC97201 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Epson WorkForce WF-7620 Wireless Color All-in-One C11CC97201Download user manual for Epson WorkForce WF-7620 Wireless Color All-in-One C11CC97201
(PDF file, 3.11 MB)
Additional parameters of the Epson WorkForce WF-7620 Wireless Color All-in-One C11CC97201:
Printer
Printing Technology PrecisionCore Print Head
Maximum Resolution 4800 x 2400 dpi
Print Speed Monochrome: 18 pages/min
Color: 10 pages/min
Duplex Monochrome: 8.7 A4 pages/min
Duplex Color: 6 A4 pages/min
Minimum Ink Droplet Size 2.8 pl with Variable-Sized Droplet Technology
Number of Nozzles Black: 800
Color: 256 per color (768 total)
Ink Type DURABrite Ultra pigment ink
Ink Palette CMYK
Ink Cartridge Configuration 4 x Individual ink cartridges
Compatible Ink Cartridges Epson 252 DURABrite Ultra series
Epson 252XL DURABrite Ultra series
Epson 254XL DURABrite Ultra black ink cartridge
Printer Duty Cycle 20,000 pages/month
Scanner
Image Sensor Contact Image Sensor (CIS)
Optical Resolution 1200 x 2400 dpi
Effective Pixels 10200 x 14040 pixels at 1200 dpi
Output Resolution 50-4800, 7200, and 9600 dpi
Bit Depth Internal: 16-bit per color
External: 8-bit per color
Light Source LED
Reflective Scan Area 11.7 x 17" (29.7 x 43.2 cm)
File Type BMP, JPEG, TIFF, PDF, searchable PDF
Fax
Modem Speed Up to 33.6 kbps
Transmission Speed About 3 sec/page
Transmission/Reception Memory Up to 550 pages
Fax Resolution Monochrome
Standard: 203 x 98 dpi
Fine: 203 x 196 dpi
Photo: 203 x 196 dpi
Super Fine: 203 x 392 dpi
Ultra Fine: 406 x 392 dpi

Color
Fine: 200 x 200 dpi
Photo: 200 x 200 dpi
Speed Dialing 200 numbers
Dialing Options 2 time redial with 1 minute interval
Fax Features Favorites, PC Fax, Auto Redial, Speed Dial
Copier
Duplex Copying Yes
Paper Handling
Maximum Document Size 13 x 19" (32.9 x 48.3 cm)
Paper Sizes A3+ 13 x 19"(32.9 x 48.3 cm), A3 11.7 x 16.5" (29.7 x 42.0 cm), B4 9.8 x 13.9" (25.7 x 36.4 cm), A4 8.3 x 11.7" (21.0 x 29.7 cm), B5 6.9 x 9.8" (18.2 x 25.7 cm), A5 5.8 x 8.3" (14.8 x 21.0 cm), A6 4.1 x 5.8" (10.5 x 14.8 cm), 4 x 6" (10 x 15 cm), 5 x 7" (13 x 18 cm), 3.5 x 5" (9 x 13 cm), 5 x 8" (13 x 20 cm), 8 x 10" (20 x 25 cm), 4.0 x 7.1" (10.2 x 18.1 cm), 3.9 x 5.8" (10.0 x 14.8 cm), Letter 8.5 x 11.0" (21.6 x 27.9 cm), Legal 8.5 x 14.0" (21.6 x 35.6 cm), Envelope #10 4.13 x 9.5" (10.5 x 24.1 cm), Envelope DL 4.3 x 8.7" (11 x 22 cm), Envelope C4 9.0 x 12.8" (22.9 x 32.4 cm), Envelope C6 4.5 x 6.4" (11.4 x 16.2 cm)
Paper Types Plain
Envelopes
Paper Thickness 3-4 mil (0.08-0.11 mm)
Paper Weight Plain: 17-24 lb (64-90 gsm)
Envelope #10, DL, and C6: 20-24 lb (75-90 gsm)
Envelope C4: 21-26 lb (80-100 gsm)
Paper Capacity ADF: 35 sheets
Trays 1 & 2: 250 sheets each
Output Tray: 125 sheets
Margins Plain Paper: 0.12 x 0.12 x 0.12" (3 x 3 x 3 mm)
Envelope #10, DL, C6: 0.12 x 0.20 x 0.12" (3 x 5 x 3 mm)
Envelope C4: 0.12 x 0.20 x 0.12" (3 x 5 x 3 mm)
Connectivity
Interface USB 2.0
Ethernet 100BASE-TX/10BASE-T
RJ-11
Compatible Memory Cards SD/HC/XC
With Optional Adapter: miniSD/HC, microSD/HC/XC, Memory Stick Duo, Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro, MagicGate Memory Stick Duo
Wireless Standard IEEE 802.11 b/g/n
Wireless Security WEP (64/128-bit), WPA-PSK (TKIP and AES)
Direct Print Capable Yes, Epson Connect, Apple AirPrint, Google Cloud Print
Network Capable Yes
System Requirements Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP SP1 or later (32-bit), XP Professional x64 Edition, Server 2012, Server 2008 R2, Server 2008, and Server 2003
Mac OS X 10.5.8, 10.6.x, 10.7.x, 10.8.x
Physical
Status Display 4.3" (10.9 cm) Color LCD touchscreen
Operating Conditions Temperature: 50 to 95°F (10 to 35°C)
Humidity: 20-80%, relative
Storage Conditions Temperature: -4 to 104°F (-20 to 40°C)
Humidity: 5-85%, relative
Power Requirements 90-264 VAC, 50-60 Hz, 1.0-0.6 A
Power Consumption Copying: 19 W
Ready: 8.5 W
Sleep: 1.7 W
Off: 0.3 W
Dimensions (WxDxH) Extended: 22.3 x 32.2 x 16.5" (56.7 x 81.7 x 41.8 cm)
Storage: 22.3 x 19.1 x 16.5" (56.7 x 48.6 x 41.8 cm)
Weight 47.8 lb (21.7 kg)
Packaging Info
Package Weight 58.0 lb
Box Dimensions (LxWxH) 28.5 x 22.5 x 19.7"
The user manual for the Epson WorkForce WF-7620 Wireless Color All-in-One C11CC97201 can be downloaded in .pdf format if it did not come with your new inkjet printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Epson users keep a unique electronic library for Epson inkjet printerss, where you can use our link to download the user manual for the Epson WorkForce WF-7620 Wireless Color All-in-One C11CC97201.

The user manual lists all of the functions of the Epson WorkForce WF-7620 Wireless Color All-in-One C11CC97201, all the basic and advanced features and tells you how to use the inkjet printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Epson service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Epson WorkForce WF-7620 Wireless Color All-in-One C11CC97201. User manuals are also available on the Epson website under Computers & Solutions - Printers & Accessories - Inkjet Printers.
