User manual EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W

Operating instructions and pdf manual for use - EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W User manual, User manual EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W, EverFocus, eZ.HD, Series, ECD900W, 720p, Analog, HD, Tru


User manual for EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W

EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W
  • Manufacturer: EverFocus
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired Analog & HD Cameras
  • Safety instructions
  • Startup and operation of the wired analog & hd cameras
  • Tips for setting up your EverFocus
  • Settings and expert assistance
  • Contact EverFocus service
  • Troubleshooting
  • Warranty information
  • Price: 59 USD
EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W
Click to enlarge image

We recommend checking out our discussion threads on the EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W, which address similar problems with connecting and setting up Wired Analog & HD Cameras EverFocus.



User manual for the EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W

The user manual for the EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

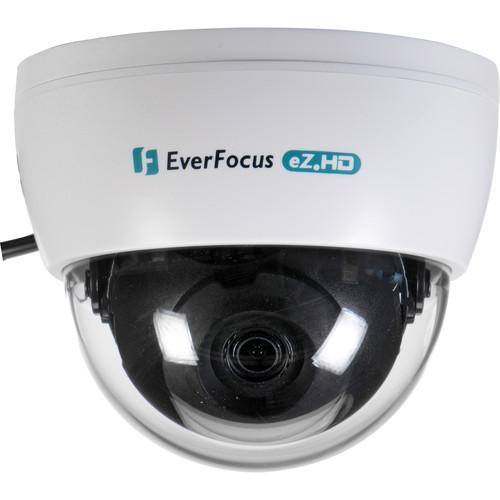

The white eZ.HD Series ECD900W 720p Analog HD True Day/Night Indoor Dome Camera from Everfocus utilizes a 1/2.8" Sony 1.37 MP CMOS sensor and 3.6mm lens to deliver 720p high-resolution images. Combined with a useable native low light sensitivity of 0.08 lux without using digital slow shutter, this camera truly provides HD images without compromising its 720p video quality.
If you own a EverFocus wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W:
Specifications
Sensor 1/2.8" Sony 1.37 MP COMS
Video Format NTSC / PAL (can be switched via OSD)
Effective Pixels H x V: 1280 x 720
Scanning System Progressive scan
Lens Type 3.6 mm fixed lens with ICR
Sensitivity 0.08 lux
S/N Ratio Over 48 dB (AGC off)
Electronic Shutter Auto / manual (30 to 1/50,000x) / Flk
Video Output BNC 1 Vpp 75 Ω
Gamma Correction 0.45
AGC (Automatic Gain Control) Off / BLC / HS BLC selectable
White Balance 0 to 15 levels
BLC ATW / AWC-SET / indoor / outdoor / manual / AWB
Sync Mode Internal
Day/Night Ext, auto, color, B/W
OSD 12 languages
DNR 2DNR / 3DNR, Off
Defog Off / auto (under B/W mode)
D-WDR On / Off
Sens-up On / Off (30 to 2x)
Mirror Off / mirror / V-Flip / rotate
Motion Detection On / Off for 4 selectable zones
Privacy Masking On / Off for 4 selectable zones
Environmental Indoor
Power Source 12 VDC
Power Consumption 3.5 W at 12 VDC
Certifications CE, FCC, RoHS
Operating Temperature 14 to 122°F (-10 to 50°C)
Humidity 20 to 80%
Dimensions (Ø x D) 4.25 x 3.54" (10.8 x 9.0 cm)
Weight 7 oz (200 g)
Packaging Info
Package Weight 0.6 lb
Box Dimensions (LxWxH) 5.2 x 5.2 x 5.2"
The user manual for the EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W can be downloaded in .pdf format if it did not come with your new wired analog & hd cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other EverFocus users keep a unique electronic library for EverFocus wired analog & hd camerass, where you can use our link to download the user manual for the EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W.

The user manual lists all of the functions of the EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W, all the basic and advanced features and tells you how to use the wired analog & hd cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from EverFocus service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the EverFocus eZ.HD Series ECD900W 720p Analog HD True ECD900W. User manuals are also available on the EverFocus website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
