User manual Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1

Operating instructions and pdf manual for use - Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1 User manual, User manual Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1, Fast, Forward, Video, Micron, HD, with, Embedded/A


User manual for Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1

Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1
  • Manufacturer: Fast Forward Video
  • Basic description and contents of package
  • Product classification: Professional Video - Recorders & Duplication - Solid State/HDD Recorders
  • Safety instructions
  • Startup and operation of the solid state/hdd recorders
  • Tips for setting up your Fast Forward Video
  • Settings and expert assistance
  • Contact Fast Forward Video service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1, which address similar problems with connecting and setting up Solid State/HDD Recorders Fast Forward Video.



User manual for the Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1

The user manual for the Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1 provides necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - Solid State/HDD Recorders.

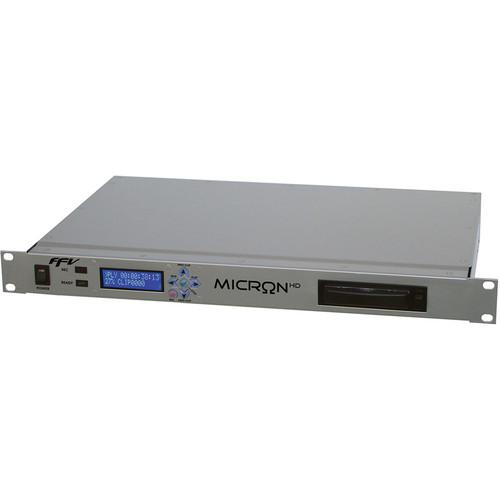

The Fast Forward Video Micron HD with Embedded/Analog Audio is a high-definition, broadcast-quality digital video recorder designed to deliver visually lossless 4:2:2 video in a compact, affordable unit. Utilizing the JPEG 2000 codec to capture HD and SD images at a high 100Mbps data rate and with 10-bit resolution, the Micron HD records to a standard 2.5" SATA hard drive (not included) to deliver up to 5 hours of 1080i or 720p footage.

Professional features include HD-SDI input/output with embedded audio, 2 channels of analog audio, timecode, genlock, user-selectable video compression ratios, and an RS-422 interface for controlling multiple units. This combination of flexibility, high-end features, and small form factor makes the Micron HD right at home in a variety of post-production facilities--the perfect choice for broadcasters, law enforcement agencies, and A/V professionals.
If you own a Fast Forward Video solid state/hdd recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1Download user manual for Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1
(PDF file, 0.21 MB)
Additional parameters of the Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1:
Signal System HD-SDI/NTSC/PAL
Multiplexing Simultaneous record and playback
Compression Motion JPEG2000 (QuickTime or Native)
100Mbps (HD), 50Mbps (SD)
Channels 1 (simultaneous record and playback)
Storage Accepts 1 internal 2.5" SATA HDD or SSD Drive (optional)
Supports 9.5mm drive height
Resolution 1080i/60/59.94/50
(1920 x 1080/60/59.94/50/2:1 Interlace)
720p/60/59.94/50
(1280 x 720/60/59.94/50/Progressive)
720p/23.98/24.00
NTSC (720 x 486/59.94/2:1 Interlace)
PAL (720 x 576/50/2:1 Interlace)

Supports 4:3 or 16:9 aspect ratio
Genlock/Video Input 60 Hz: Blackburst SMPTE 170 M
50 Hz: ITU-R BT.470; 75 ohm
Audio Sampling 48KHz
Audio Bitrates 16 bits
Input/Output Connectors HD/SD-SDI Video: BNC (x1 Input, x1 Loop-through Output
2-Ch Analog Audio: XLR (x2 Input, x2 Output)
Timecode: BNC (x1 Input, x1 Output)
Genlock: BNC (x1 Input)
Control Ports RS-422: 38400 baud
Interface Protocol Sony Remote-1 (9-pin)
USB USB 2.0
Operating Temperature 32° to 122°F (0° to 50°C)
Power Requirements Not specified by manufacturer
Power Consumption 20W
Dimensions (WxHxD) 17 x 1.75 x 11" (43.2 x 4.4 x 27.9 cm)
Weight Not Specified by Manufacturer
The user manual for the Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1 can be downloaded in .pdf format if it did not come with your new solid state/hdd recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fast Forward Video users keep a unique electronic library for Fast Forward Video solid state/hdd recorderss, where you can use our link to download the user manual for the Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1.

The user manual lists all of the functions of the Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1, all the basic and advanced features and tells you how to use the solid state/hdd recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fast Forward Video service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fast Forward Video Micron HD with Embedded/Analog 301-TA083-1. User manuals are also available on the Fast Forward Video website under Professional Video - Recorders & Duplication - Solid State/HDD Recorders.
