User manual for the Fiio Andes E07K Portable USB DAC Headphone Amplifier E07K
The user manual for the Fiio Andes E07K Portable USB DAC Headphone Amplifier E07K provides
necessary instructions for the proper use of the product Pro Audio - Recording - Headphone Amplifiers.

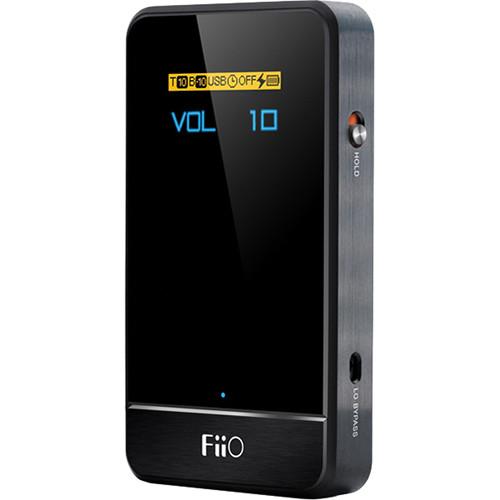

The Andes E07K Portable USB DAC Headphone Amplifier from Fiio can be used for the playback of audio from a computer or analog source. It has both a USB input for digital audio and a 3.5mm input for analog audio sources. The Andes E07K provides you with two 3.5mm stereo headphone outputs.
The Andes E07K features independent bass and treble adjustment, allowing you to customize the playback of your sound. Three levels of gain adjustment at 0, 6, and 12dB provide you with further control over the output.
The unit is powered by its internal rechargeable battery, which is capable of up to 24 hours of playback on a single charge.
If you own a Fiio headphone amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Fiio Andes E07K Portable USB DAC Headphone Amplifier E07K in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Fiio Andes E07K Portable USB DAC Headphone Amplifier E07K:
Specifications
Audio Inputs
1x USB 2.0 port 1x 1/8" (3.5 mm) jack
Audio Outputs
2x 1/8" (3.5 mm) stereo headphone outputs
Frequency Range
20 Hz to 20 kHz
Volume Control
Digital Volume Control (0-60)
Resolution
Up to 24-bit, 96 kHz
Output Power
250 mW @ 16 Ω 220 mW @ 32 Ω 36 mW @ 300 Ω
Output Impedance
< 0.3 Ω
Channel Imbalance
5 dB
Gain
Switchable between 0, 6, 12 dB
Bass Boost Range
-10 dB to 10 dB
Maximum Input Level
> 4.5 Vrms
Maximum Output Current
> 75 mA
Maximum Output Voltage
> 7 Vp - p
Input Sensitivity
0 dB @ 2.75 V 6 dB @ 1.38 V 12 dB @ 690 mV
Crosstalk
> 71 dB @ 1 kHz
Total Harmonic Distortion
< 0.005% @ 1 kHz
Signal to Noise Ratio
> 108 dB (Aux In)
Battery
Battery life: > 20 hours Charging time: < 180 minutes Battery capacity: 1200 mAH Rechargeable via USB port
