User manual Fiio K1 Portable Headphone Amplifier and USB DAC K1

Operating instructions and pdf manual for use - Fiio K1 Portable Headphone Amplifier and USB DAC K1 User manual, User manual Fiio K1 Portable Headphone Amplifier and USB DAC K1, Fiio, K1, Portable, Headphone, Amplifier, USB, DAC, K1,


User manual for Fiio K1 Portable Headphone Amplifier and USB DAC K1

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Fiio K1 Portable Headphone Amplifier and USB DAC K1
  • Manufacturer: Fiio
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Headphone Amplifiers
  • Safety instructions
  • Startup and operation of the headphone amplifiers
  • Tips for setting up your Fiio
  • Settings and expert assistance
  • Contact Fiio service
  • Troubleshooting
  • Warranty information
  • Price: 40 USD
We recommend checking out our discussion threads on the Fiio K1 Portable Headphone Amplifier and USB DAC K1, which address similar problems with connecting and setting up Headphone Amplifiers Fiio.



User manual for the Fiio K1 Portable Headphone Amplifier and USB DAC K1

The user manual for the Fiio K1 Portable Headphone Amplifier and USB DAC K1 provides necessary instructions for the proper use of the product Pro Audio - Recording - Headphone Amplifiers.

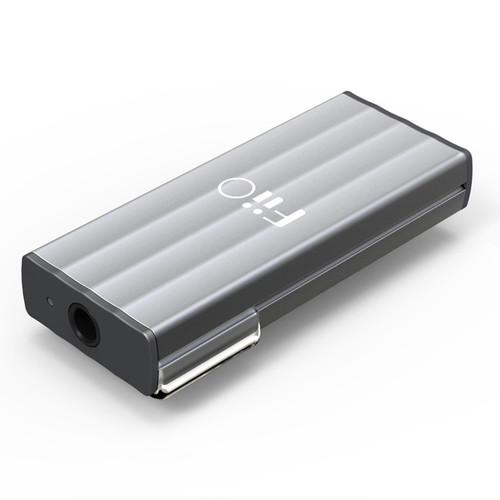

The thumb-sized K1 from FiiO is a portable headphone amplifier and DAC with mastering quality sound that supports resolutions of up to 24-bit/ 96 kHz. The unit offers true plug-and-play operation with no batteries to charge and no drivers required for operation. The K1's audio architecture utilizes Savitechs's SA9023A USB receiver to decode USB audio, while the high fidelity, low noise TI PCM5102 DAC chip outputs to the TPA 61332A headphone amplifier, which is capable of driving most headphones with a range of 16 to 100 ohms. The K1 also self-mutes when powering on or off, reducing harmful transients. The all-metal chassis is sandblasted for optimal sheen, texture, durability of appearance, and hand grip. The K1 ships with a removable clip and a USB connection cable.
If you own a Fiio headphone amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fiio K1 Portable Headphone Amplifier and USB DAC K1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Fiio K1 Portable Headphone Amplifier and USB DAC K1:
Specifications
Model K1
Color (housing) Titanium
Audio Input Micro USB
Headphone Output Standard 1/8" / 3.5 mm port
Drive Ability 16 to 100 ohms(recommended)
Power Supply USB powered
Output Power Output Power1: >75 mW (16 ohms/THD+N<1%)
Output Power2: >35 mW (32 ohms/THD+N<1%)
THD <0.01% (1 kHz)
Output Impedance ≤ 1 ohm
Frequency Response 20 Hz to 20 kHz
Signal-to-Noise Ratio (SNR) ≥100 dB (A-weighted)
Input Sensitivity >0 dB
Crosstalk ≥70 dB (1 kHz)
Channel Imbalance < 0.3 dB
Gain 1.2 dB
Power Status LEDs yes (blue light when on)
Max Output MAX Output Voltage: 3.25 Vp-p
MAX Output Current: 35.93 mA
Dimension (L x W x H) 2.0 x 0.8 x 0.3" / 50.0 x 20.5 x 8.0 mm
Weight 0.4 oz / 11.3 g
Packaging Info
Package Weight 0.1 lb
Box Dimensions (LxWxH) 6.6 x 3.4 x 0.9"
The user manual for the Fiio K1 Portable Headphone Amplifier and USB DAC K1 can be downloaded in .pdf format if it did not come with your new headphone amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fiio users keep a unique electronic library for Fiio headphone amplifierss, where you can use our link to download the user manual for the Fiio K1 Portable Headphone Amplifier and USB DAC K1.

The user manual lists all of the functions of the Fiio K1 Portable Headphone Amplifier and USB DAC K1, all the basic and advanced features and tells you how to use the headphone amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fiio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fiio K1 Portable Headphone Amplifier and USB DAC K1. User manuals are also available on the Fiio website under Pro Audio - Recording - Headphone Amplifiers.
