User manual FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8

Operating instructions and pdf manual for use - FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8 User manual, User manual FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8, FLIR, DNR400, Series, 16-Channel, 1080p, NVR, with, 8TB, D


User manual for FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8

FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8
  • Manufacturer: FLIR
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Network Video Recorders (NVRs)
  • Safety instructions
  • Startup and operation of the network video recorders (nvrs)
  • Tips for setting up your FLIR
  • Settings and expert assistance
  • Contact FLIR service
  • Troubleshooting
  • Warranty information
FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8 FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8 FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8 FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8 FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8 FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8 FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8

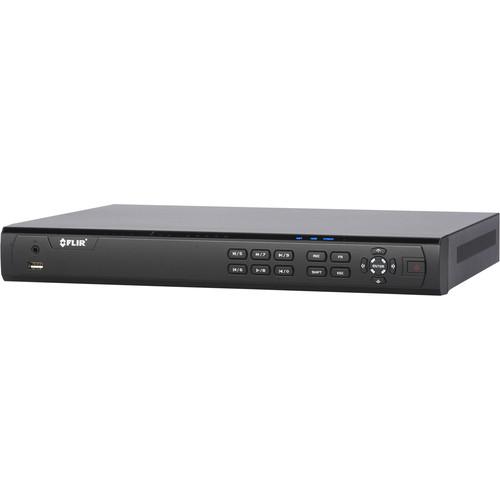

Click to enlarge image

We recommend checking out our discussion threads on the FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8, which address similar problems with connecting and setting up Network Video Recorders (NVRs) FLIR.



User manual for the FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8

The user manual for the FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Network Video Recorders (NVRs).

Connect up to 16 cameras to the DNR400 Series 16-Channel 1080p NVR from FLIR. Each channel can record video at up to 5MP resolution in real-time and provides up to 1080p output resolution. There is an integrated Turbo 200 Mb/s high capacity processor for managing large amounts of data, and H.264 video compression allows you to transfer footage using a minimum amount of bandwidth. The NVR includes 8TB of storage, split evenly between two 4TB SATA HDDs. Furthermore, redundant recording allows for drive mirroring to a second internal HDD for a secure back-up.
If you own a FLIR network video recorders (nvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8:
Specifications
System
Number of Channels 16
Operating system Linux (embedded)
Pentaplex Operation Simultaneous view, record, playback, backup, and remote monitoring
Input / Output
Video In 8 x PoE Video Input
VGA Out Yes
HDMI Out Yes
Audio 1 x Line IN (RCA) for 2-way audio
1 x Line OUT (RCA) for 2-way audio
USB Port Front: 1
Rear: 1
Alarm 4 x Alarm IN
2 x Alarm OUT
Video Output Resolution 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
PTZ Control RS-485, supports Pelco-D and Pelco-P
Display
Live Display 1, 4, 8, 9, 16
OSD ON/OFF
System Navigation USB mouse, IR remote controller, front panel
Motion Area Setting Adjustable grid (22 x 18)
Sensitivity 100 levels
Firmware Upgrade Automatic (via Internet, USB device, or network)
User Authority By user group
Time Synchronization Auto time sync by NTP server
Compression H.264
Recording Frame Rate Total: 480 fps
Per channel: 30 fps
2560 x 1920 (5 MP), 2028 x 1536 (3 MP), 1920 x 1080 (1080p) 1280 x 720 (720p)
Recording Rate NTSC: 480 fps @ 720p / 1080p / 3 MP / 5 MP
Recording Quality 6 levels
Recording Schedule By hour, day, recording mode, motion, or channel
Pre-Recording Maximum 30 sec
Post Recording Maximum 5 minutes
Reliability Watch-Dog, auto-recovery after power failure
Covert Video Yes
Playback Channel 1/4
Playback Speed Variable Maximum 16x
Playback Players Yes
Search By time and event
Log Search Up to 1,000 lines for motion detected, configuration changes, connects/disconnects, and video loss
Audio Play Yes (audio camera required)
Storage 8 TB
Capacity Up to 2 x 4 TB HDDs
Total: 8 TB
Back-Up Function Backup Media USB flash drive and HDD
Backup File Format DAV or ASF file
Connectivity
Cloud Connectivity FLIR Cloud
Supported OS Windows, Mac OS X
Remote Setup Client Software (PC/Mac)
Email Notifications Text with snapshot
Mobile OS Support iOS, Android
DDNS FLIR DDNS
System Configuration Full setup configuration over network
Ports Programmable by User
Network Protocol HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Bit Rate 200 Mbs total, 48 to 8192 kb/s per camera
Supported IP Cameras FLIR, Digimerge, Panasonic, Sony, Dynacolor, Samsung, AXIS, Arecont, Bosch, Canon, Honeywell, Pelco, Panasonic, and Vivotek
Power Consumption Approximately 20 W (No HDD Installed)
Supply Voltage 100 to 240 VAC, 50/60 Hz
Output 120 W (Maximum 25 W per Camera)
Operating Temperature 14° to 131°F (-10 to 55°C)
Humidity 10 to 90% RH
Dimensions 10 x 8.0 x 1.8 (27 x 20.3 x 4.6 cm)
Weight 4.4 lb (2.0 kg)
The user manual for the FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8 can be downloaded in .pdf format if it did not come with your new network video recorders (nvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other FLIR users keep a unique electronic library for FLIR network video recorders (nvrs)s, where you can use our link to download the user manual for the FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8.

The user manual lists all of the functions of the FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8, all the basic and advanced features and tells you how to use the network video recorders (nvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from FLIR service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the FLIR DNR400 Series 16-Channel 1080p NVR with 8TB DNR416P8. User manuals are also available on the FLIR website under Surveillance - Surveillance Video - Network Video Recorders (NVRs).
