User manual for the FLIR N336ZD1 2.1MP 12x PTZ IP Dome Camera N336ZD1

The user manual for the FLIR N336ZD1 2.1MP 12x PTZ IP Dome Camera N336ZD1 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

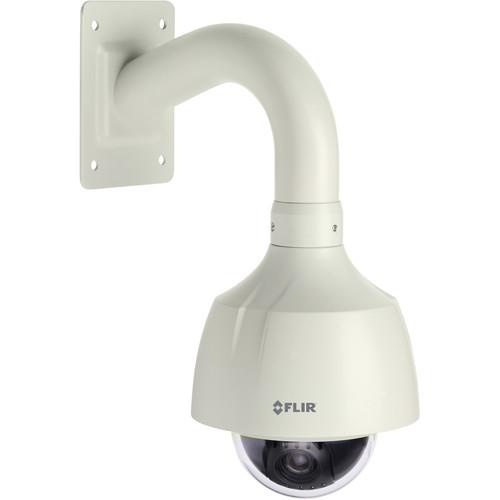

The N336ZD1 2.1MP 12x PTZ IP Dome Camera from FLIR features a 1/3" progressive scan CMOS sensor that allows it to capture images at a maximum resolution of 1920 x 1080. In addition, the camera also features a 5.1-61.2mm varifocal lens. The IR-cut filter allows infrared light to pass through the lens and hit the sensor as light levels diminish. The camera comes with an IP66 weatherproof rating to protect it from harsh weather conditions.
If you own a FLIR wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FLIR N336ZD1 2.1MP 12x PTZ IP Dome Camera N336ZD1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FLIR N336ZD1 2.1MP 12x PTZ IP Dome Camera N336ZD1:
Specifications
Camera
Image Sensor 1/3" Sony Exmor CMOS sensor
Effective Pixels (H x V) 1944 x 1092, 2.1 MP @ 30 fps
Scanning System Progressive
Electronic Shutter Speed 1/1 to 1/30,000 sec
Minimum Illumination Color: 0.05 lux @ F/1.6
B/W: 0.005 lux @ F/1.6
S/N Ratio >55 dB
Video Output RJ45, service BNC
Camera Features
Day/Night Auto (ICR) / Color / B&W
BLC BLC / HLC / E-WDR
White Balance Auto, ATW, indoor, outdoor, manual
Gain Control Auto / manual
Noise Reduction Ultra DNR (2D / 3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 5.1-61.2 mm with 12x optical zoom
Maximum Aperture F/1.2 to F/2.1
Focus Control Auto / manual
Angle of View Horizontal: 51.3 to 4.64°
Close Focus Distance 100 to 1000 mm
PTZ
Range Pan: 0 to 360° endless
Tilt: -2 to 90°
Auto Flip: 180°
Manual Control Speed Pan: 0.1 to 300º/sec
Tilt: 0.1 to 120º/sec
Preset Speeds Pan: 300º/sec
Tilt: 200º/sec
Preset 255 (PELCO-P/D)
PTZ Mode 5 pattern, 8 tour, auto pan, auto scan
Action Type Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate preset / pan / scan / tour / pattern
Protocol ONVIF via RJ45
Audio
Power Requirement G.711a / G.711u (32 kb/s)
PCM (128 kb/s)
Interface 1/1 channel in/out
Video
Compression H.264 / MJPEG
Resolution 1080p (1920 x 1080)/720p (1280 x 720)/D1 (704 x 480)/CIF (352 x 240)
Frame Rate Main Stream: 1080p (1 to 30 fps) / 720p (1 to 60 fps)
Sub Stream: D1/CIF (1 to 30 fps)
Bit Rate H.264: 56 K to 8192 kb/s MJPEG: 56 K to 20480 kb/s
Network
Ethernet RJ45 (10 / 100 Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP filters, QoS, Bonjour, 802.1x
Compliance ONVIF 2.1 Profile S
Maximum User Access 20
Smart Phone iPhone, iPad, Android
Interface
Storage microSD slot, supports up to 64 GB (card sold separately)
Alarm 2/1 Channel in/out
General
Power Supply 24 VAC, 1.5 A (included), PoE+ (802.3at)
Power Consumption 12 W
22 W (Heater on)
Temperature -40 to 140°F (-40 to 60ºC)
Humidity <90% RH
Ingress Protection IP66
Dimensions 7.3 x 9.2" (18.6 x 23.4 cm)
Weight 5.07 lb (2.35 kg)
Packaging Info
Package Weight 10.5 lb
Box Dimensions (LxWxH) 13.7 x 10.0 x 10.0"
