User manual Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW

Operating instructions and pdf manual for use - Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW User manual, User manual Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW, Fluid, Audio, Classic, Series, C5BT, Bluetooth, 5, FA-C5BTW,


User manual for Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW

Fluid Audio Classic Series C5BT Bluetooth 5
  • Manufacturer: Fluid Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Studio Monitors
  • Safety instructions
  • Startup and operation of the studio monitors
  • Tips for setting up your Fluid Audio
  • Settings and expert assistance
  • Contact Fluid Audio service
  • Troubleshooting
  • Warranty information
  • Price: 260 USD

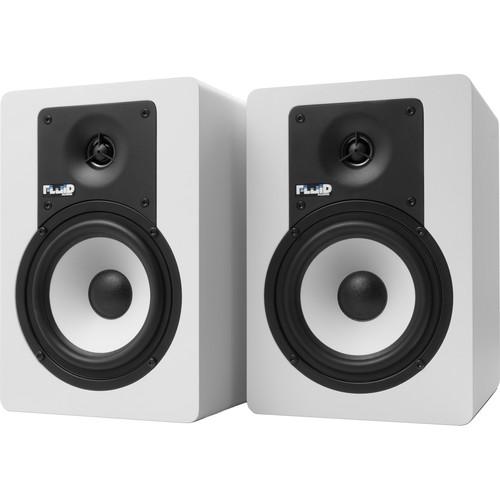

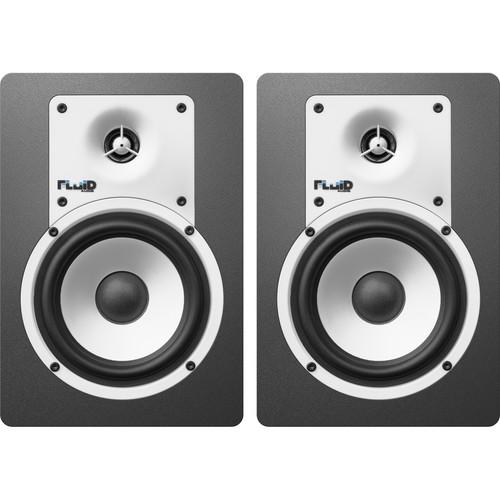

Fluid Audio Classic Series C5BT Bluetooth 5 Fluid Audio Classic Series C5BT Bluetooth 5
Click to enlarge image

We recommend checking out our discussion threads on the Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW, which address similar problems with connecting and setting up Studio Monitors Fluid Audio.



User manual for the Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW

The user manual for the Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

The pair of white Classic Series C5BT Bluetooth Studio Monitors from Fluid Audio offers an affordable yet high-quality monitoring solution for your home or project studio and is ideal for music, multimedia and other desktop monitoring applications. The monitors feature CRS Bluetooth 4.0 technology with aptX support, which revolutionized the Bluetooth Stereo listening experience by significantly reducing the bit rate without affecting audio quality or introducing latency issues. The enclosure offers a variety of connections including TRS, RCA, digital optical inputs, as well as a subwoofer output for connecting to a powered subwoofer.

A stereo Class A/B 40W (20W per channel) amplifier is enclosed in the left speaker and includes a bare-speaker wire connector for the right speaker, which connects via the included speaker wire. A control panel on top of the left speaker offers input selection, Bluetooth pairing, and volume increase/decrease controls. The C5BT ships with a power cord, bare speaker wire, and two acoustic isolation pads.
If you own a Fluid Audio studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Fluid Audio Classic Series C5BT Bluetooth 5Download user manual for Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW
(PDF file, 4.79 MB)
Additional parameters of the Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW:
Type 2-way near-field studio reference monitors
Input Connectors 2x RCA (unbalanced)
2x 1/4" / 6.35 mm (balanced TRS)
1x Optical input connector
Output Connector Subwoofer Output: 1x 1/4" / 6.35 mm
Drivers LF: 5" composite paper cone with high temperature voice coil and rubber surround
HF: 1" PEI diaphragm tweeter
Frequency Response 54 Hz - 22 kHz
Crossover Frequency 4.5 kHz
Amplifier Power 2 x 20 watts (40 W total)
Signal-to-noise > 90 dB (typical A-weighted)
Polarity Positive signal at + input produces outward LF one displacement
Input Impedance 20 kOhms balanced, 10 kOhms unbalanced
Input Sensitivity 85 mV pink noise input produces 85 dBA output SPL @ one meter with volume control at maximum (97 dB max SPL)
Protection RF interference, output current limiting, over temperature, turn-on/off transient and subsonic filter
Power Fixed 110 VAC 50/60 Hz or 220VAC 50/60 Hz
Cabinet Vinyl-laminated MDF
Dimensions 10.1 x 6.9 x 7.6" / 25.6 x 17.4 x 19.3 cm, (each monitor)
Weight 18.5 lb / 8.4 kg, (pair)
Packaging Info
Package Weight 19.8 lb
Box Dimensions (LxWxH) 18.1 x 13.9 x 11.2"
The user manual for the Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fluid Audio users keep a unique electronic library for Fluid Audio studio monitorss, where you can use our link to download the user manual for the Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW.

The user manual lists all of the functions of the Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW, all the basic and advanced features and tells you how to use the studio monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fluid Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fluid Audio Classic Series C5BT Bluetooth 5" FA-C5BTW. User manuals are also available on the Fluid Audio website under Pro Audio - Recording - Studio Monitors.
