User manual Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL

Operating instructions and pdf manual for use - Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL User manual, User manual Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL, Fraser, Optics, 14x40, Stedi-Eye, Observer, 01065-1100-14X-B


User manual for Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL

Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL
  • Manufacturer: Fraser Optics
  • Basic description and contents of package
  • Product classification: Optics - Binoculars - Binoculars
  • Safety instructions
  • Startup and operation of the binoculars
  • Tips for setting up your Fraser Optics
  • Settings and expert assistance
  • Contact Fraser Optics service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL, which address similar problems with connecting and setting up Binoculars Fraser Optics.



User manual for the Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL

The user manual for the Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL provides necessary instructions for the proper use of the product Optics - Binoculars - Binoculars.

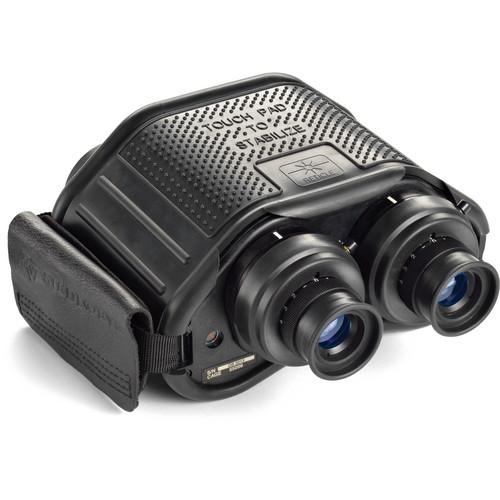

The 14x40 Stedi-Eye Observer Stabilized Binocular LE Edition with Hard Case and Pouch from Fraser-Volpe is an advanced electro-optical device designed for long-range observations from unstable viewing platforms on the ground, in the air, or at sea. Fraser-Volpe has developed electro-optics for the US Military since 1972 and is an industry leader in the production of next generation optical stabilization. Their rigorous and high-minded approach to designing, prototyping, and manufacturing world-class products has earned Fraser-Volpe a reputation in both industrial and defense markets. Stedi-Eye series optics are manufactured in the United States and are designed to withstand long-term use in demanding weather conditions. This Law Enforcement configuration of the Observer includes an extended three-year manufacturer warranty as well as Fraser-Volpe's Advanced Lens Cleaning Kit for maintaining exposed lens surfaces.
If you own a Fraser Optics binoculars and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BLDownload user manual for Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL
(PDF file, 1.69 MB)
Additional parameters of the Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL:
Prism Type Roof
Magnification 14.0x
Objective Lens Diameter 40mm
Angle of View 4.3° (actual)
Field-of-View 222.89' @ 1000 yd / 74 m @ 1000 m
Minimum Focus Distance Not Specified By Manufacturer
Exit Pupil Diameter 3  mm
Eye Relief Not Specified By Manufacturer
Interpupillary Adjustment 60 - 75 mm / 2.36 - 2.95"
Dioptric Correction ±5
Stabilization Freedom ±8°
Resolution 4.3 arc seconds (USAF-1951)
Scan Rate 8°/ second
Focus Type Individual
Tripod Mount None
Dimensions 8.25 x 7.5 x 3.5" / 20.96 x 19.05 x 8.89  cm
Weight 71.96 oz / 2.04 kg
Packaging Info
Package Weight 15.0 lb
Box Dimensions (LxWxH) 17.5 x 13.5 x 13.25"
The user manual for the Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL can be downloaded in .pdf format if it did not come with your new binoculars, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fraser Optics users keep a unique electronic library for Fraser Optics binocularss, where you can use our link to download the user manual for the Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL.

The user manual lists all of the functions of the Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL, all the basic and advanced features and tells you how to use the binoculars. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fraser Optics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fraser Optics 14x40 Stedi-Eye Observer 01065-1100-14X-BL. User manuals are also available on the Fraser Optics website under Optics - Binoculars - Binoculars.
