User manual FSR MDC-MK4 Magellan Down-Converter MDC-MK4

Operating instructions and pdf manual for use - FSR MDC-MK4 Magellan Down-Converter MDC-MK4 User manual, User manual FSR MDC-MK4 Magellan Down-Converter MDC-MK4, FSR, MDC-MK4, Magellan, Down-Converter, MDC-MK4, Video


User manual for FSR MDC-MK4 Magellan Down-Converter MDC-MK4

FSR  MDC-MK4 Magellan Down-Converter MDC-MK4
  • Manufacturer: FSR
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Analog & Digital Converters
  • Safety instructions
  • Startup and operation of the analog & digital converters
  • Tips for setting up your FSR
  • Settings and expert assistance
  • Contact FSR service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the FSR MDC-MK4 Magellan Down-Converter MDC-MK4, which address similar problems with connecting and setting up Analog & Digital Converters FSR.



User manual for the FSR MDC-MK4 Magellan Down-Converter MDC-MK4

The user manual for the FSR MDC-MK4 Magellan Down-Converter MDC-MK4 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Analog & Digital Converters.

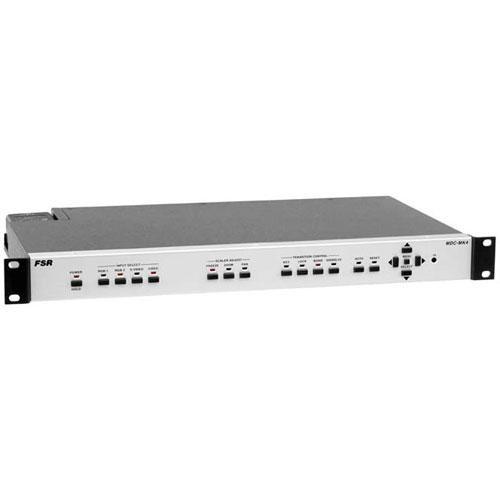

The MDC-MK4 Magellan Down-Converter from FSR is a down-converter designed for use in churches, schools, hotels, live events, or any application that requires a high-resolution computer signal to be translated to a standard television feed. Because this unit supports HD and computer input and output, it is also well suited for use as a transcoder in mixed-format applications.
If you own a FSR analog & digital converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FSR MDC-MK4 Magellan Down-Converter MDC-MK4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FSR MDC-MK4 Magellan Down-Converter MDC-MK4:
Specifications
    Inputs Number: (4)
    Type and Format:
    (1) HD-15 with loop out RGB
    (1) 5 BNC RGB/component
    (1) 1 BNC composite
    (1) 4-pin DIN S-video
    Termination:
    Auto-terminating into 75 Ohms
    Sync Rate:
    Auto-detect
    Resolution:
    RGB: any up to 2048 x 2048
    HD: any up to 1080p
    Refresh Rate:
    H: up to 150KHz
    V: up to 250Hz
    Outputs Number: (3)
    Type and Format:
    (1) 1 BNC composite
    (1) 4-pin DIN S-video
    (1) 3 RCA component
    Level Video:
    0.7Vp-p nominal
    0.5 to 2.0Vp-p minimum/maximum
    Sync:
    TTL positive or negative
    Standards:
    NTSC, PAL, PAL-M, PAL-N, SECAM
    Computer Loop-Thru:
    (1) HD-15 female connector
    Operational Modes Key: Chromakey or Lumakey
    Dissolve: PC to/from video
    Genlock Subcarrier Lock Range:
    +/- 200Hz for NTSC Operation
    (+/- 250Hz for PAL Operation)
    Subcarrier Phase:
    +/- 180°
    Control Methods Local:
    via Front Panel Buttons & OSD
    RS-232 Interface:
    via D9 Female Connector
    Infrared Remote:
    via 3rd party remote
    Input Expansion Control:
    via D-15 Options Connector
    Power 100 to 240VAC, 50/60, 0.3A
    Dimensions (HxWxD) 1.72 x 19 x 11"
    Weight 11 lbs
    The user manual for the FSR MDC-MK4 Magellan Down-Converter MDC-MK4 can be downloaded in .pdf format if it did not come with your new analog & digital converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other FSR users keep a unique electronic library for FSR analog & digital converterss, where you can use our link to download the user manual for the FSR MDC-MK4 Magellan Down-Converter MDC-MK4.

    The user manual lists all of the functions of the FSR MDC-MK4 Magellan Down-Converter MDC-MK4, all the basic and advanced features and tells you how to use the analog & digital converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from FSR service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the FSR MDC-MK4 Magellan Down-Converter MDC-MK4. User manuals are also available on the FSR website under Professional Video - Signal Processing & Distribution - Analog & Digital Converters.
