User manual for the FSR PFD-32x8-RGBA Pathfinder RGBHV & Audio PFD-32X8-RGBA

The user manual for the FSR PFD-32x8-RGBA Pathfinder RGBHV & Audio PFD-32X8-RGBA provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

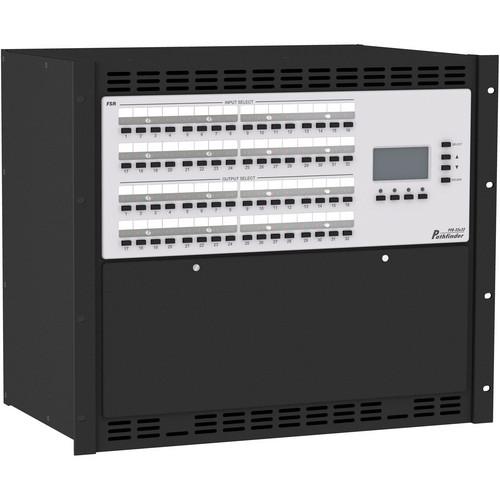

The PFD-32x8-RGBA Pathfinder RGBHV & Stereo Audio Matrix Switcher from FSR is designed to offer 32 inputs and 8 outputs of matrix switching capability for RGBHV and stereo audio signals. It is well suited for use in video & control rooms, educational institutions, government offices, and houses of worship, among many other possible settings and applications.
If you own a FSR routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FSR PFD-32x8-RGBA Pathfinder RGBHV & Audio PFD-32X8-RGBA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FSR PFD-32x8-RGBA Pathfinder RGBHV & Audio PFD-32X8-RGBA:

Go To

Video
Inputs/Outputs 32x8 RGBHV
Connector Female BNC
Bandwidth 600MHz at -3dB
Gain Flatness +/- 1.0dB to 300MHz
Gain Unity
Impedance 75 Ohms
Level 0.7V nominal, 2V maximum p-p
Input Level 0.5V to 5Vp-p 4V nominal
Output Level TTL 2.4V into 75-Ohm load
Audio
Inputs/Outputs 32x8 balanced stereo audio
Connector 5-position pluggable captive screw terminal
Frequency 20Hz to 20KHz
Audio THD + Noise 0.05% at 1KHz at maximum rated output
Signal-to-Noise Ratio >90dB
Impedance Input: 10 kOhms
Output: 50 Ohms
Level +22dBm maximum input and output
Input Gain 0/+14dB switchable per input
Trim/Gain Control +/- 10dB per input
Volume -45 to +5db per output volume range
Testing Parameters Input: 1kHz tone @ 0 dBm
Output: 600 Ohms load
Dimensions (HxWxD) Not specified by manufacturer
Weight Not specified by manufacturer
The user manual for the FSR PFD-32x8-RGBA Pathfinder RGBHV & Audio PFD-32X8-RGBA can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other FSR users keep a unique electronic library for FSR routers & switcherss, where you can use our link to download the user manual for the FSR PFD-32x8-RGBA Pathfinder RGBHV & Audio PFD-32X8-RGBA.

The user manual lists all of the functions of the FSR PFD-32x8-RGBA Pathfinder RGBHV & Audio PFD-32X8-RGBA, all the basic and advanced features and tells you how to use the routers & switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from FSR service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the FSR PFD-32x8-RGBA Pathfinder RGBHV & Audio PFD-32X8-RGBA. User manuals are also available on the FSR website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
