User manual Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005

Operating instructions and pdf manual for use - Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005 User manual, User manual Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005, Fujitsu, ScanSnap, SV600, Overhead, Scanner, PA03641-B005,


User manual for Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005
  • Manufacturer: Fujitsu
  • Basic description and contents of package
  • Product classification: Photography - Scanners - Flatbed & Document Scanners
  • Safety instructions
  • Startup and operation of the flatbed & document scanners
  • Tips for setting up your Fujitsu
  • Settings and expert assistance
  • Contact Fujitsu service
  • Troubleshooting
  • Warranty information
  • Price: 856 USD
We recommend checking out our discussion threads on the Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005, which address similar problems with connecting and setting up Flatbed & Document Scanners Fujitsu.



User manual for the Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005

The user manual for the Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005 provides necessary instructions for the proper use of the product Photography - Scanners - Flatbed & Document Scanners.

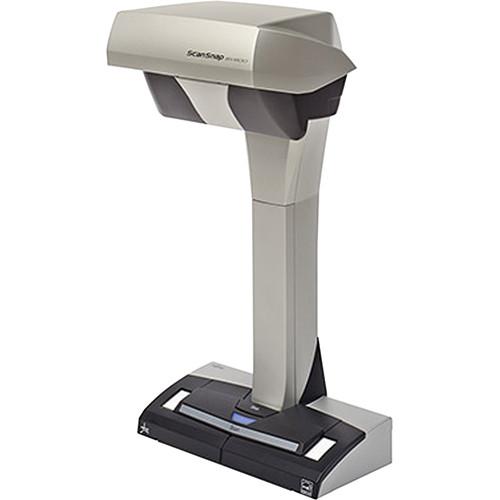

The Fujitsu ScanSnap SV600 Overhead Scanner provides simple scanning of delicate documents and books due to the unique overhead scanning method. It scans the document by moving the head over the top and can complete a scan in approximately 3 seconds. This is due to the linear CCD image sensor and directed LED lamp, which combine to create monochrome images up to 1,200 dpi and color or grayscale images up to 600 dpi.

Not having to physically place your documents and items onto a scanning area protects them from damage and allows for different shaped and sized documents to be scanned. This includes items like books, or documents with notes placed on them, which can be scanned without any hassle. The SV600 can handle documents from business cards up to 11.8 x 17" documents in landscape orientation. It can also handle document up to 1.2" thick.

Bundled with the scanner are multiple pieces of software. This includes the driver, file management, business card management, PDF editing, text recognition, document filing, Evernote, and ECM linking software. Also included are the AC cable and adapter, a USB 2.0 cable, background pad, two extenders, and three DVD-ROMs with the software.
If you own a Fujitsu flatbed & document scanners and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005Download user manual for Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005
(PDF file, 6.75 MB)
Additional parameters of the Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005:
Specifications
    Scan Quality
    Scanner Type Overhead scanner
    Optical Resolution Horizontal: 218-285 dpi
    Vertical: 152-283 dpi
    Output Resolution Color/Grayscale
    Excellent: 600 dpi
    Best: 300 dpi
    Better: 200 dpi
    Normal: 150 dpi

    Monochrome
    Excellent: 1,200 dpi
    Best: 600 dpi
    Better: 400 dpi
    Normal: 300 dpi
    Maximum Scan Size 11.8 x 17.0" (30.0 x 43.2 cm)
    Performance
    Scan Speed Approximately 3 seconds for A3-sized 11.7 x 16.5" (35.3 x 50.0 cm) document
    Connectivity
    Interface USB 2.0
    System & Software Requirements Windows XP (SP3 or later), Vista (SP2 or later), 7 (SP1 or later), 8, or 8.1
    Mac OS X 10.7, 10.8, or 10.9
    CPU: Intel Core i5 2.5 GHz or better
    Memory: 4 GB or more
    Screen Resolution: 1,024 x 768 on Windows 8, 800 x 600 on XP, Vista, and 7
    Hard Drive: 4,350 MB free space for installation
    DVD-ROM drive for software installation
    USB 3.0, 2.0, or 1.1
    Physical
    Light Source 2 x White LED
    Power Requirements 100-240V AC, 50/60 Hz
    Power Consumption Operating: 20W or less
    Sleep Mode: 2.6 W or less
    Off: 0.4 W or less
    Operating Conditions Temperature: 41-95°F (5-35°C)
    Humidity: 20-80%
    Dimensions (WxDxH) 8.3 x 6.1 x 15.1" (21.0 x 15.6 x 38.3 cm)
    Weight 6.6 lb (3.0 kg)
    Packaging Info
    Package Weight 11.25 lb
    Box Dimensions (LxWxH) 19.7 x 11.9 x 9.8"
    The user manual for the Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005 can be downloaded in .pdf format if it did not come with your new flatbed & document scanners, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fujitsu users keep a unique electronic library for Fujitsu flatbed & document scannerss, where you can use our link to download the user manual for the Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005.

    The user manual lists all of the functions of the Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005, all the basic and advanced features and tells you how to use the flatbed & document scanners. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fujitsu service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fujitsu ScanSnap SV600 Overhead Scanner PA03641-B005. User manuals are also available on the Fujitsu website under Photography - Scanners - Flatbed & Document Scanners.
