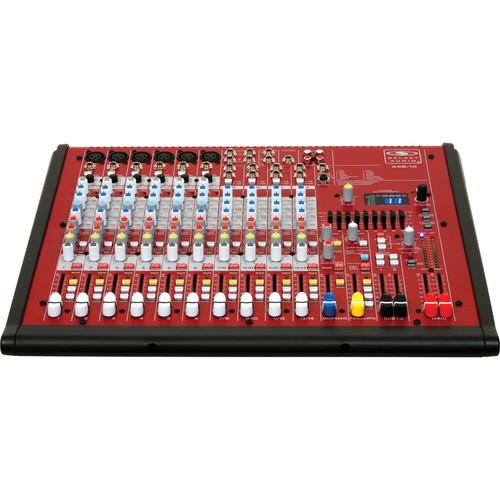

The AXS-14 from Galaxy Audio is a 14-input analog audio mixer featuring premium-quality mic preamps, stereo line inputs, compressors, EQs, a 24-bit multi-effects processor, and an integrated USB audio interface. Additional features include an on-board 9-band stereo graphic EQ, feedback detection circuit, voice canceller function, and a dedicated monitor output.
If you own a Galaxy Audio sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Galaxy Audio ASX-14 14-Input Analog Audio Mixer AXS-14 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Galaxy Audio ASX-14 14-Input Analog Audio Mixer AXS-14:
Inputs & Outputs
Inputs Inputs 1-6: 6 x Balanced XLR or 6 x 1/4"
Inputs 7-14: 8 x 1/4"
Aux Returns: 4 x 1/4"
2TK/USB: 2 x RCA
DSP Mute Switch: 1/4"
Insert Send/Return: 4 x 1/4"
Outputs Main: 2 x XLR, 2 x 1/4"
Sub: 2 x 1/4"
Control Room: 2 x 1/4"
Aux Send: 2 x 1/4"
Monitor: 1 x 1/4"
Phones: 1 x 1/4"
2TK/USB: 2 x RCA
Microphone Inputs
Microphone Type XLR
Electronically Balanced
Discrete Input Circuit
Mic Input Noise (E.I.N.) Mic E.I.N (20 Hz to 20 kHz):
@ 0 ohm Source Resistance: -134 dB / 135.7 A-weighted
@ 50 ohms Source Resistance: -131 dB / 133.3 dB A-weighted
@ 150 ohms Source Resistance: -129 dB / 130.5 dB A-weighted
Frequency Response: <10 hz to 150 khz (-1 db), <10 200 (-3 db)
Gain Range: +10 to +60 dB
Maximum Input Level: +12 dBu @ +10 dB gain
Impedance: Approximately 2.6 kOhms balanced
Signal to Noise Ratio: 110 dB / 112 dB A-weighted (0 dBu in @ +22 dB gain)
Distortion (THD+N): 0.005% / 0.004% A-weighted
Line Input Type: 1/4" TRS connector electronically balanced
Impedance: Approximately 20 kOhms balanced, 10 kOhms unbalanced
Gain Range: -10 to +40 dB
Maximum Input Level: 30 dBu
Fade-out Attenuation
Crosstalk / Attenuation Main Fader Closed: 90 dB
Channel Muted: 89 dB
Channel Fader Closed: 89 dB
Frequency Response
Microphone Input Microphone Input to Main Out:
<10 hz to 90 khz +0 db > <10 hz to 160 khz +0 db >
Stereo Input Type: 1/4" TRS Connector, electronically balanced
Impedance: Approximately 20 kOhms
Maximum Input Level: +22 dBu
EQ Type Mono Channels Low: ±15 dB shelving at 80 Hz
Mid: ±15 dB peak, sweepable from 100 Hz to 8 kHz
High: ±15 dB shelving at 12 kHz
EQ Type Stereo Channels Low: ±15 dB shelving at 80 Hz
Low-Mid: ±15 dB peak at 500 Hz
High-Mid: ±15 dB peak at 3 kHz
High: ±15 dB shelving at 12 kHz
AUX Sends Type: 1/4" TS connector, unbalanced
Impedance: Approximately 120 Ohms
Maximum Input Level: +22 dBu
AUX Returns Type: 1/4" TRS connector, electronically balanced
Impedance: Approximately 20 kOhms balanced / 10 kOhms unbalanced
Maximum Input Level: +22 dBu
Main Outputs Type: XLR electronically balanced and 1/4" TRS balanced
Impedance: Approximately 240 Ohms Symm. / 120 Ohms unbalanced
Maximum Output Level: +28 dBu
Control Room Outputs Type: 1/4" TS connector unbalanced
Impedance: Approximately 120 Ohms
Maximum Output Level: +22 dBu
Headphone Output Type: 1/4" TRS connector, unbalanced
Maximum Output Level: +19 dBu / 150 Ohms (+25 dBm)
Meter 3-color LED
DSP
Converter 24-bit Sigma-Delta
64/128 times oversampling
Sampling Rate 40 kHz
USB
USB Audio: Stereo in/out
Connector: Type B
Converter: 16-bit
Sample Rate: 48 kHz
Main Mix
Noise Main Mix @ ∞ / Channel Fader @ ∞: -101 dB

Main Mix @ 0 dB / Channel Fader @ ∞: -93 dB

Main Mix @ 0 dB / Channel Fader @ 0 dB: -81 dB
Power / Consumption Power Supply: 100-240 VAC, 50/60 Hz
Power Consumption: 50 W
Fuse Fuse: T 1.6 A, 250 V
Dimension (D x W x H) 4.7 x 19.1 x 17.4" / 11.8 x 48.3 x 44.3 cm
Weight 15.0 lb / 6.8 kg
Packaging Info
Package Weight 17.1 lb
Box Dimensions (LxWxH) 21.1 x 21.1 x 7.8"
