User manual Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10

Operating instructions and pdf manual for use - Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10 User manual, User manual Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10, Galaxy, Audio, AXS-10, 12-Input, Analog, Audio, Mixer, AXS-10,


User manual for Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10

Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10
  • Manufacturer: Galaxy Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Sound Reinforcement Mixers
  • Safety instructions
  • Startup and operation of the sound reinforcement mixers
  • Tips for setting up your Galaxy Audio
  • Settings and expert assistance
  • Contact Galaxy Audio service
  • Troubleshooting
  • Warranty information
  • Price: 300 USD
We recommend checking out our discussion threads on the Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10, which address similar problems with connecting and setting up Sound Reinforcement Mixers Galaxy Audio.



User manual for the Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10

The user manual for the Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

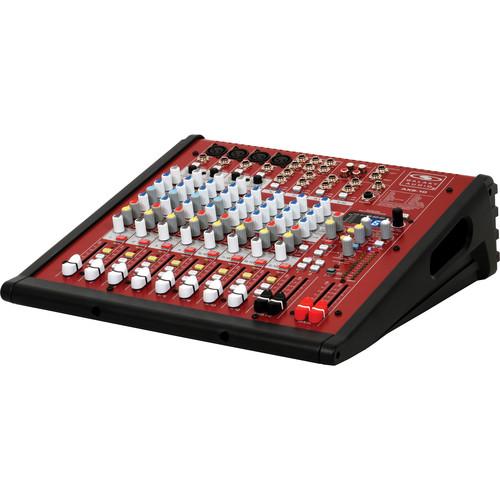

The AXS-10 from Galaxy Audio is a 12-input analog audio mixer featuring premium-quality mic preamps, stereo line inputs, compressors, EQs, a 24-bit multi-effects processor, and an integrated USB audio interface.
If you own a Galaxy Audio sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10:
Specifications
    Inputs & Outputs
    Inputs Inputs 1-4: 4 x Balanced XLR or 4 x 1/4"
    Inputs 5-12: 8 x 1/4"
    Aux Returns: 4 x 1/4"
    2TK/USB: 2 x RCA
    DSP Mute Switch: 1/4"
    Insert Send/Return: 4 x 1/4"
    Outputs Main: 2 x XLR, 2 x 1/4"
    Sub: 2 x 1/4"
    Control Room: 2 x 1/4"
    Aux Send: 2 x 1/4"
    Phones: 1 x 1/4"
    2TK/USB: 2 x RCA
    Microphone Inputs
    Microphone Type XLR
    Electronically Balanced
    Discrete Input Circuit
    Mic Input Noise (E.I.N.) Mic E.I.N. (20 Hz to 20 kHz):
    @ 0 ohm Source Resistance: -134 dB / 135.7 A-weighted
    @ 50 ohms Source Resistance: -131 dB / 133.3 dB A-weighted
    @ 150 ohms Source Resistance: -129 dB / 130.5 dB A-weighted
    Frequency Response: <10 hz to 150 khz (-1 db), <10 200 (-3 db)
    Gain Range: +10 to +60 dB
    Maximum Input Level: +12 dBu @ +10 dB gain
    Impedance: Approximately 2.6 kOhms balanced
    Signal to Noise Ratio: 110 dB / 112 dB A-weighted (0 dBu in @ +22 dB gain)
    Distortion (THD+N): 0.005% / 0.004% A-weighted
    Line Input Type: 1/4" TRS connector electronically balanced
    Impedance: Approximately 20 kOhms balanced, 10 kOhms unbalanced
    Gain Range: -10 to +40 dB
    Maximum Input Level: 30 dBu
    Fade-out Attenuation
    Crosstalk / Attenuation Main Fader Closed: 90 dB
    Channel Muted: 89 dB
    Channel Fader Closed: 89 dB
    Frequency Response
    Microphone Input Microphone Input to Main Out:
    <10 hz to 90 khz +0 db > <10 hz to 160 khz +0 db >
    Stereo Input Type: 1/4" TRS Connector, electronically balanced
    Impedance: Approximately 20 kOhms
    Maximum Input Level: +22 dBu
    EQ Type Mono Channels Low: ±15 dB shelving at 80 Hz
    Mid: ±15 dB peak, sweepable from 100 Hz to 8 kHz
    High: ±15 dB shelving at 12 kHz
    EQ Type Stereo Channels Low: ±15 dB shelving at 80 Hz
    Low-Mid: ±15 dB peak at 500 Hz
    High-Mid: ±15 dB peak at 3 kHz
    High: ±15 dB shelving at 12 kHz
    AUX Sends Type: 1/4" TS connector, unbalanced
    Impedance: Approximately 120 Ohms
    Maximum Input Level: +22 dBu
    AUX Returns Type: 1/4" TRS connector, electronically balanced
    Impedance: Approximately 20 kOhms balanced / 10 kOhms unbalanced
    Maximum Input Level: +22 dBu
    Main Output Type: 1/4" TS unbalanced
    Impedance: Approximately 240 Ohm symmetrical / 120 Ohms unbalanced
    Maximum Output Level: +22 dBu
    Control Room Outputs Type: 1/4" TS connector unbalanced
    Impedance: Approximately 120 Ohms
    Maximum Output Level: +22 dBu
    Headphone Output Type: 1/4" TRS connector, unbalanced
    Maximum Output Level: +19 dBu / 150 Ohms (+25 dBm)
    Meter 3-color LED
    DSP
    Converter 24-bit Sigma-Delta
    64/128 times oversampling
    Sampling Rate 40 kHz
    USB
    USB Audio: Stereo in/out
    Connector: Type B
    Converter: 16-bit
    Sample Rate: 48 kHz
    Main Mix
    Noise Main Mix @ -∞ / Channel Fader @ -∞: -101 dB

    Main Mix @ 0 dB / Channel Fader @ -∞: -96 dB

    Main Mix @ 0 dB / Channel Fader @ 0 dB: -83 dB
    Power / Consumption Power Supply: 110-240 VAC, 50/60kHz
    Power Consumption: 50 W
    Fuse Fuse: T 1.6 A, 250 V
    Dimension (D x W x H) 4.6 x 14.9 x 16.5" (11.6 x 37.8 x 41.8 cm)
    Weight 11.7 lb / 5.3 kg
    Packaging Info
    Package Weight 6.0 lb
    Box Dimensions (LxWxH) 18.307 x 16.929 x 6.89"
    The user manual for the Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10 can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Galaxy Audio users keep a unique electronic library for Galaxy Audio sound reinforcement mixerss, where you can use our link to download the user manual for the Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10.

    The user manual lists all of the functions of the Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10, all the basic and advanced features and tells you how to use the sound reinforcement mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Galaxy Audio service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Galaxy Audio AXS-10 12-Input Analog Audio Mixer AXS-10. User manuals are also available on the Galaxy Audio website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
