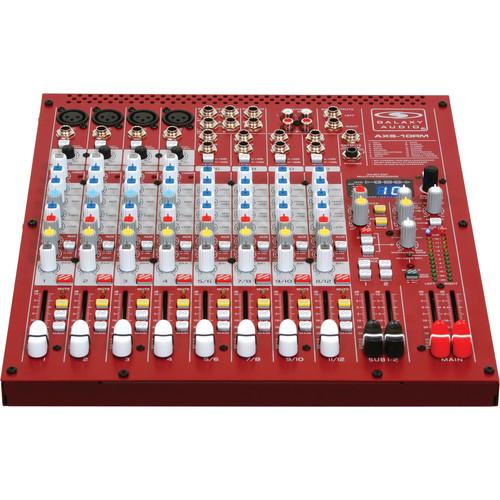

User manual Galaxy Audio AXS-10RM 12-Input Analog Audio Mixer AXS-10RM

User manual for Galaxy Audio AXS-10RM 12-Input Analog Audio Mixer AXS-10RM

Manufacturer: Galaxy Audio

Basic description and contents of package

Product classification: Pro Audio - Live Sound - Sound Reinforcement Mixers

Safety instructions

Startup and operation of the sound reinforcement mixers

Tips for setting up your Galaxy Audio

Settings and expert assistance

Contact Galaxy Audio service

Troubleshooting

Warranty information

Price: 300 USD

Inputs & Outputs
Inputs	Inputs 1-4: 4 x Balanced XLR or 4 x 1/4" Inputs 5-12: 8 x 1/4" Aux Returns: 4 x 1/4" 2TK/USB: 2 x RCA DSP Mute Switch: 1/4" Insert Send/Return: 4 x 1/4"
Outputs	Main: 2 x XLR, 2 x 1/4" Sub: 2 x 1/4" Control Room: 2 x 1/4" Aux Send: 2 x 1/4" Phones: 1 x 1/4" 2TK/USB: 2 x RCA

Microphone Inputs
Microphone Type	XLR Electronically Balanced Discrete Input Circuit
Mic Input Noise (E.I.N.)	Mic E.I.N. (20 Hz to 20 kHz): @ 0 ohm Source Resistance: -134 dB / 135.7 A-weighted @ 50 ohms Source Resistance: -131 dB / 133.3 dB A-weighted @ 150 ohms Source Resistance: -129 dB / 130.5 dB A-weighted Frequency Response: <10 hz to 150 khz (-1 db), <10 200 (-3 db) Gain Range: +10 to +60 dB Maximum Input Level: +12 dBu @ +10 dB gain Impedance: Approximately 2.6 kOhms balanced Signal to Noise Ratio: 110 dB / 112 dB A-weighted (0 dBu in @ +22 dB gain) Distortion (THD+N): 0.005% / 0.004% A-weighted
Line Input	Type: 1/4" TRS connector electronically balanced Impedance: Approximately 20 kOhms balanced, 10 kOhms unbalanced Gain Range: -10 to +40 dB Maximum Input Level: 30 dBu

Fade-out Attenuation
Crosstalk / Attenuation	Main Fader Closed: 90 dB Channel Muted: 89 dB Channel Fader Closed: 89 dB

Frequency Response
Microphone Input	Microphone Input to Main Out: <10 hz to 90 khz +0 db > <10 hz to 160 khz +0 db >
Stereo Input	Type: 1/4" TRS Connector, electronically balanced Impedance: Approximately 20 kOhms Maximum Input Level: +22 dBu
EQ Type Mono Channels	Low: ±15 dB shelving at 80 Hz Mid: ±15 dB peak, sweepable from 100 Hz to 8 kHz High: ±15 dB shelving at 12 kHz
EQ Type Stereo Channels	Low: ±15 dB shelving at 80 Hz Low-Mid: ±15 dB peak at 500 Hz High-Mid: ±15 dB peak at 3 kHz High: ±15 dB shelving at 12 kHz
AUX Sends	Type: 1/4" TS connector, unbalanced Impedance: Approximately 120 Ohms Maximum Input Level: +22 dBu
AUX Returns	Type: 1/4" TRS connector, electronically balanced Impedance: Approximately 20 kOhms balanced / 10 kOhms unbalanced Maximum Input Level: +22 dBu
Main Output	Type: 1/4" TS unbalanced Impedance: Approximately 240 Ohm symmetrical / 120 Ohms unbalanced Maximum Output Level: +22 dBu
Control Room Outputs	Type: 1/4" TS connector unbalanced Impedance: Approximately 120 Ohms Maximum Output Level: +22 dBu
Headphone Output	Type: 1/4" TRS connector, unbalanced Maximum Output Level: +19 dBu / 150 Ohms (+25 dBm)
Meter	3-color LED

DSP
Converter	24-bit Sigma-Delta 64/128 times oversampling
Sampling Rate	40 kHz

USB
USB	Audio: Stereo in/out Connector: Type B Converter: 16-bit Sample Rate: 48 kHz

Main Mix
Noise	Main Mix @ -∞ / Channel Fader @ -∞: -101 dB Main Mix @ 0 dB / Channel Fader @ -∞: -96 dB Main Mix @ 0 dB / Channel Fader @ 0 dB: -83 dB
Power / Consumption	Power Supply: 110-240 VAC, 50/60kHz Power Consumption: 50 W
Fuse	Fuse: T 1.6 A, 250 V
Dimension (D x W x H)	4.6 x 19.0 x 16.5" (11.6 x 48.3 x 41.8 cm)
Weight	11.7 lb / 5.3 kg

Packaging Info
Package Weight	6.0 lb
Box Dimensions (LxWxH)	18.307 x 15.354 x 7.48"
