User manual Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22

Operating instructions and pdf manual for use - Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22 User manual, User manual Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22, Galaxy, Audio, DSPOT, DS-CP22, Dual, Channel, Compressor


User manual for Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22

Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22
  • Manufacturer: Galaxy Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Dynamics Processors
  • Safety instructions
  • Startup and operation of the dynamics processors
  • Tips for setting up your Galaxy Audio
  • Settings and expert assistance
  • Contact Galaxy Audio service
  • Troubleshooting
  • Warranty information
  • Price: 200 USD
We recommend checking out our discussion threads on the Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22, which address similar problems with connecting and setting up Dynamics Processors Galaxy Audio.



User manual for the Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22

The user manual for the Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22 provides necessary instructions for the proper use of the product Pro Audio - Recording - Dynamics Processors.

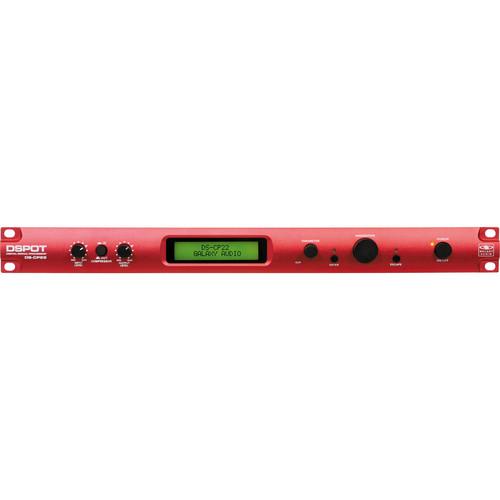

The Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor Limiter is designed for installed and portable live sound reinforcement applications. The 1RU rackmountable digital signal processor features balanced XLR and 1/4" inputs and outputs. It features a stereo RMS compressor, a peak limiter with a noise gate, an automatic gain control, a 7-band equalizer, and a sub harmonic synthesizer.

The RMS compressor uses the root mean square of the incoming signal as a control parameter for a more natural musical sounding compression. It features selectable hard/soft knee parameters and an adjustable input to output ratio that is accurate within 0.1 dBu. The automatic gain control (AGC) is a dynamic expansion/compression process for maintaining the average amplitude of an output signal by expanding it when it is below the defined threshold and compressing it when above the threshold.

The peak limiter is used to keep the output signal within a designated threshold to prevent the signal from clipping a power amplifier or speaker. The subharmonic synthesizer is a processor that synthesizes the first lower harmonic frequencies between 40 to 500 Hz to add weight and energy to the mix. The 7-band EQ can be used to adjust the input signal with both 1st or 2nd high-pass and 1st or 2nd order low-pass shelving.

The unit can be controlled via the front panel LCD display control interface, via MIDI using the rear panel MIDI in and out connectors or via USB connection to an external PC. Control software is available via an included CD or via download from the manufacturer's website. The unit includes 16 factory memory presets and 16 user memory presets that can be recalled for different applications.
If you own a Galaxy Audio dynamics processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22:
Inputs 2x XLR-3F balanced
2x 1/4" TRS unbalanced
Input Level +15 dBu max
Outputs 2x XLR-3M balanced
2x 1/4" TRS unbalanced
Output Level +10 dBu max
EQ Type 7-Band Parametric
Display 2x20 character LCD
THD + N <0.01% at -6 dBFS (bypass)
S/N Ratio >100 dBu (process in bypass)
Frequency Response 20 to 20,000 Hz +1 to 0.5 dB
Resolution A/D and D/A: 24 bit
Process: 24 x 48-bit
Processes RMS stereo compressor
Remote Control USB
MIDI
Power Supply 110V/220V (switchable)
Dimensions (DxWxH) 9.25 x 19.0 x 1.75" (235 x 483 x 44.5 mm)
Weight 6.30 lb (2.86 kg)
Packaging Info
Package Weight 7.5 lb
Box Dimensions (LxWxH) 21.0 x 11.9 x 3.8"
The user manual for the Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22 can be downloaded in .pdf format if it did not come with your new dynamics processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Galaxy Audio users keep a unique electronic library for Galaxy Audio dynamics processorss, where you can use our link to download the user manual for the Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22.

The user manual lists all of the functions of the Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22, all the basic and advanced features and tells you how to use the dynamics processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Galaxy Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Galaxy Audio DSPOT DS-CP22 Dual Channel Compressor DS-CP22. User manuals are also available on the Galaxy Audio website under Pro Audio - Recording - Dynamics Processors.
